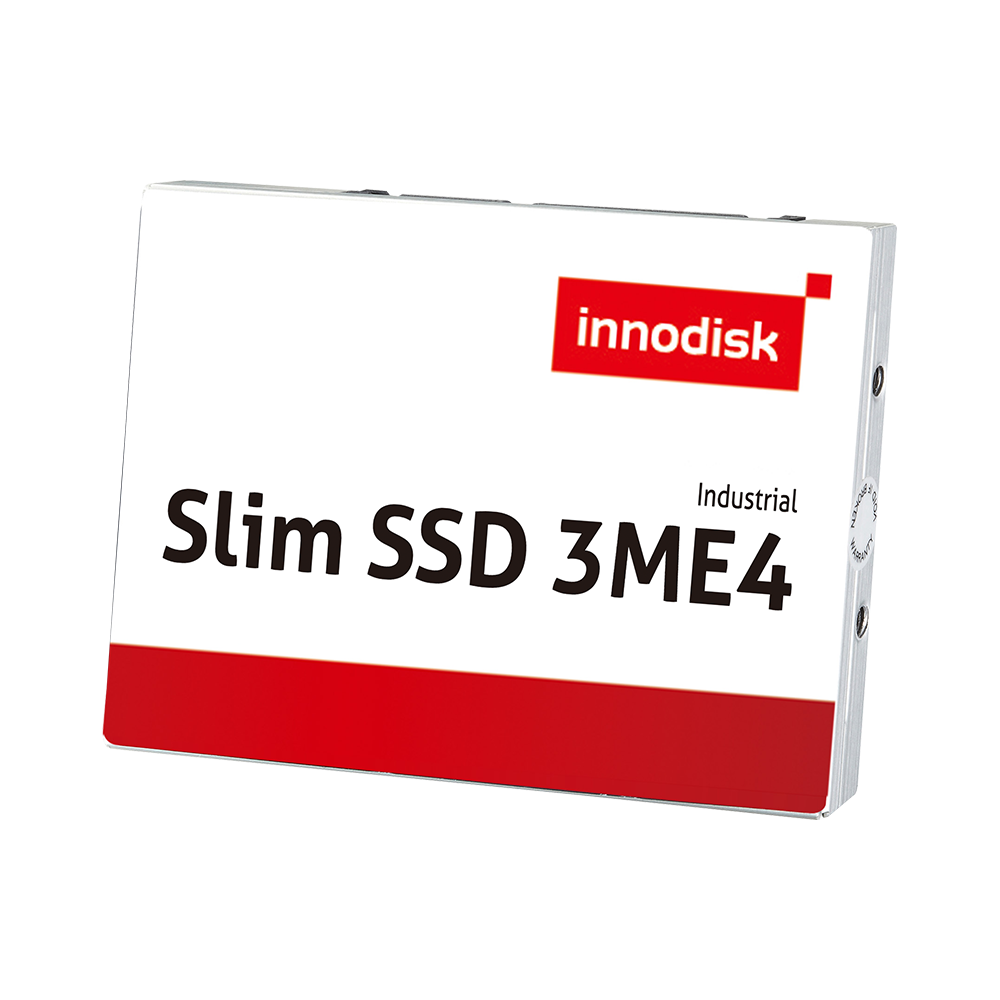

Slim SSD 3ME4

SATA Slim

8GB ~ 256GB

Features

SATA III solution for industrial field
Exclusive L³ architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM, NCQ, and S.M.A.R.T.
Designed with LDPC ECC engine
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk Slim SSD 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. L² architecture multiplied by LDPC (Low Density Parity Check) is Innodisk’s exclusive L³ architecture. L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk Slim SSD 3ME4 is designed for the industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	SATA Slim 3MG2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	8GB ~ 512GB
Sequential R / W (MB/sec, max.)	520 / 460
P/E Cycle	3,000
TBW (Max.)	600
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.6W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEMLM-08GM41BC1SC	DEMLM-08GM41BW1SC
16GB	DEMLM-16GM41BC1&C	DEMLM-16GM41BW1&C
32GB	DEMLM-32GM41BC1DC	DEMLM-32GM41BW1DC
64GB	DEMLM-64GM41BC1DC	DEMLM-64GM41BW1DC
128GB	DEMLM-A28M41BC1DC	DEMLM-A28M41BW1DC
256GB	DEMLM-B56M41BC1DC	DEMLM-B56M41BW1DC

&. S : 1 channel / D : 2 channels
