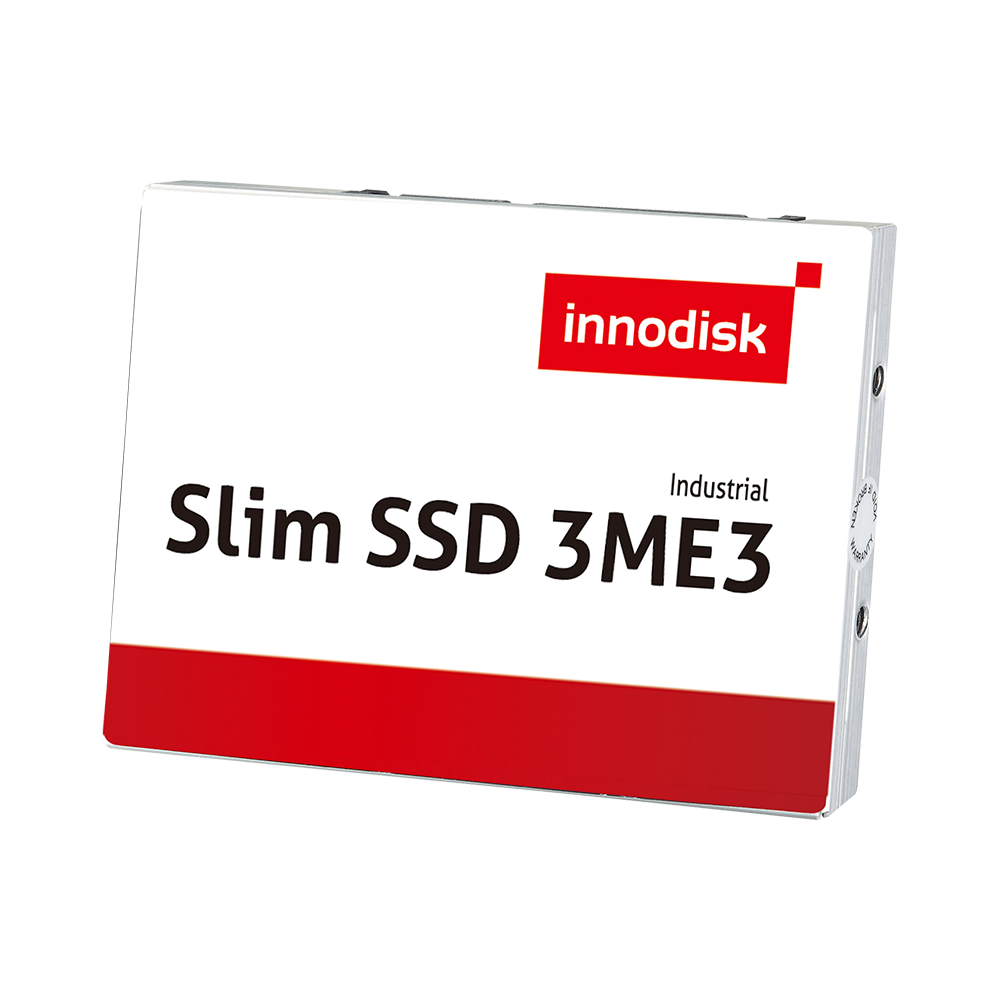

Slim SSD 3ME3

SATA Slim

8GB ~ 256GB

Features

Innovative firmware algorithm
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM, NCQ, and S.M.A.R.T.
iSMART disk health monitoring
Compatible with JEDEC MO-297 standard
Alternative solution of 2.5’’ SSD
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk Slim SSD 3ME3 is a SATA III 6.0Gb/s Flash-based disk, which is designed with a standard SATA interface (7+15 SATA connector). With its smaller dimension, Slim SSD 3ME3 is an alternative solution of 2.5” SSD for the embedded system that may have mechanical and space concerns.

Innodisk Slim SSD 3ME3 operates under a SATA III (6.0Gb/s) interface with excellent performance and reliability, making it the ideal solution for a variety of applications, including embedded systems and industrial fields.

SPECIFICATIONS

Model Name	Slim SSD 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297 with Housing
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	350 / 130
P/E Cycle	3,000
TBW (Max.)	75
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.6W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	69.85 x 50.0 x 9.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEMLM-08GD09BC1SC	DEMLM-08GD09BW1SC
16GB	DEMLM-16GD09BC1SC	DEMLM-16GD09BW1SC
32GB	DEMLM-32GD09BC1DC	DEMLM-32GD09BW1DC
64GB	DEMLM-64GD08BC1QC	DEMLM-64GD08BW1QC
128GB	DEMLM-A28D08BC1QC	DEMLM-A28D08BW1QC
256GB	DEMLM-B56D08BC1QC	DEMLM-B56D08BW1QC

For more information, please contact our support.
