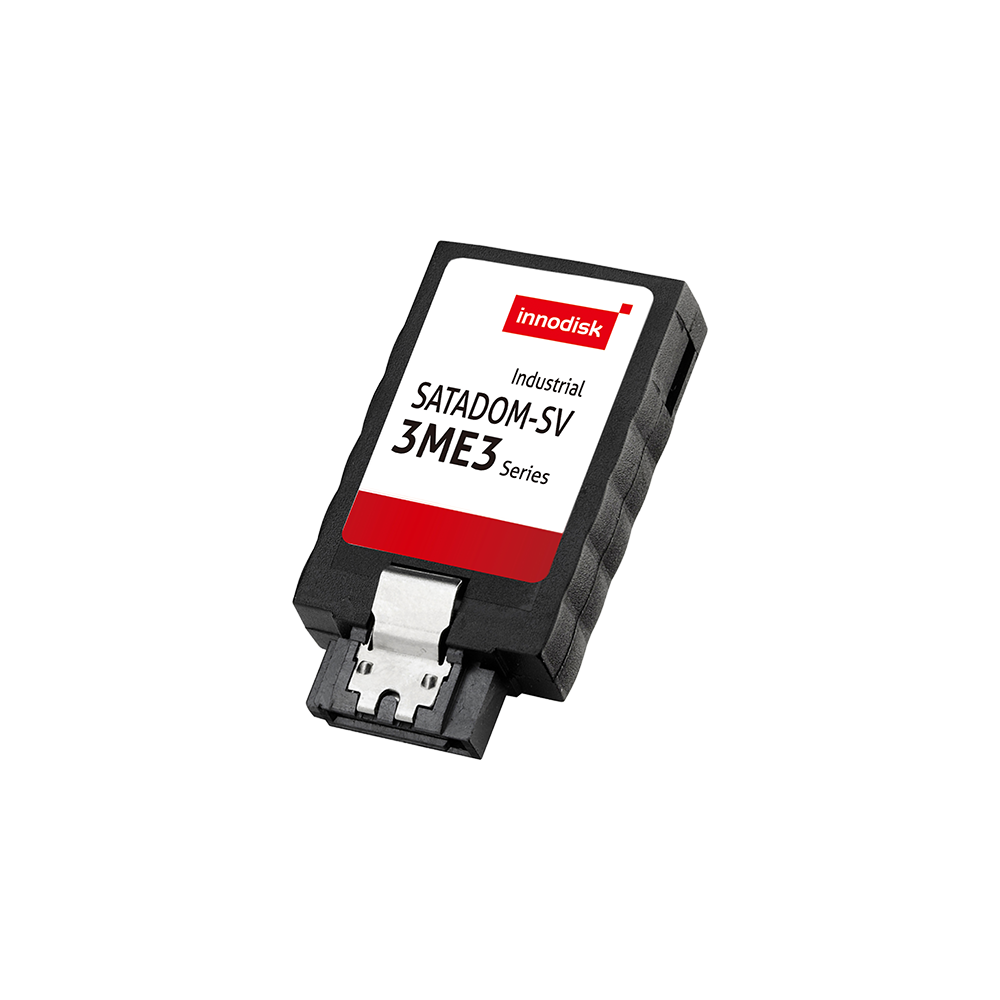

SATADOM-SV 3ME3

SATADOM

8GB ~ 128GB

Features

SATA 6.0Gb/s interface
High IOPS to reduce boot up timing
Built-in Pin 7 power supply
DRAM-less, 100% data integrity
Innovative firmware algorithm
Anti-vibration mechanical design
Built in iData Guard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk SATADOM-SV 3ME3 is designed as the standard SATA 7 pin connector with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. Innodisk SATADOM-SV 3ME3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk SATADOM-SV 3ME3 effectively reduces the boot time of the operation system, and the power consumption is less than that of a hard disk drive (HDD), which complies with ATA protocol. No additional drives are required, and they can be configured as boot devices or data storage devices.

SPECIFICATIONS

Model Name	SATADOM-SV 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	SATADOM-SV
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	200 / 80
P/E Cycle	3,000
TBW (Max.)	37
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.8W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	20.9 x 39.5 x 7.9
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESSV-08GD09*C1SC(F)	DESSV-08GD09*W1SC(F)
16GB	DESSV-16GD09*C1SC(F)	DESSV-16GD09*W1SC(F)
32GB	DESSV-32GD09*C1SC(F)	DESSV-32GD09*W1SC(F)
64GB	DESSV-64GD09*CADC(F)	DESSV-64GD09*WADC(F)
128GB	DESSV-A28D09*CADC(F)	DESSV-A28D09*WADC(F)

For more information, please contact our support.
