 | SATADOM8GB ~ 128GB Features
|

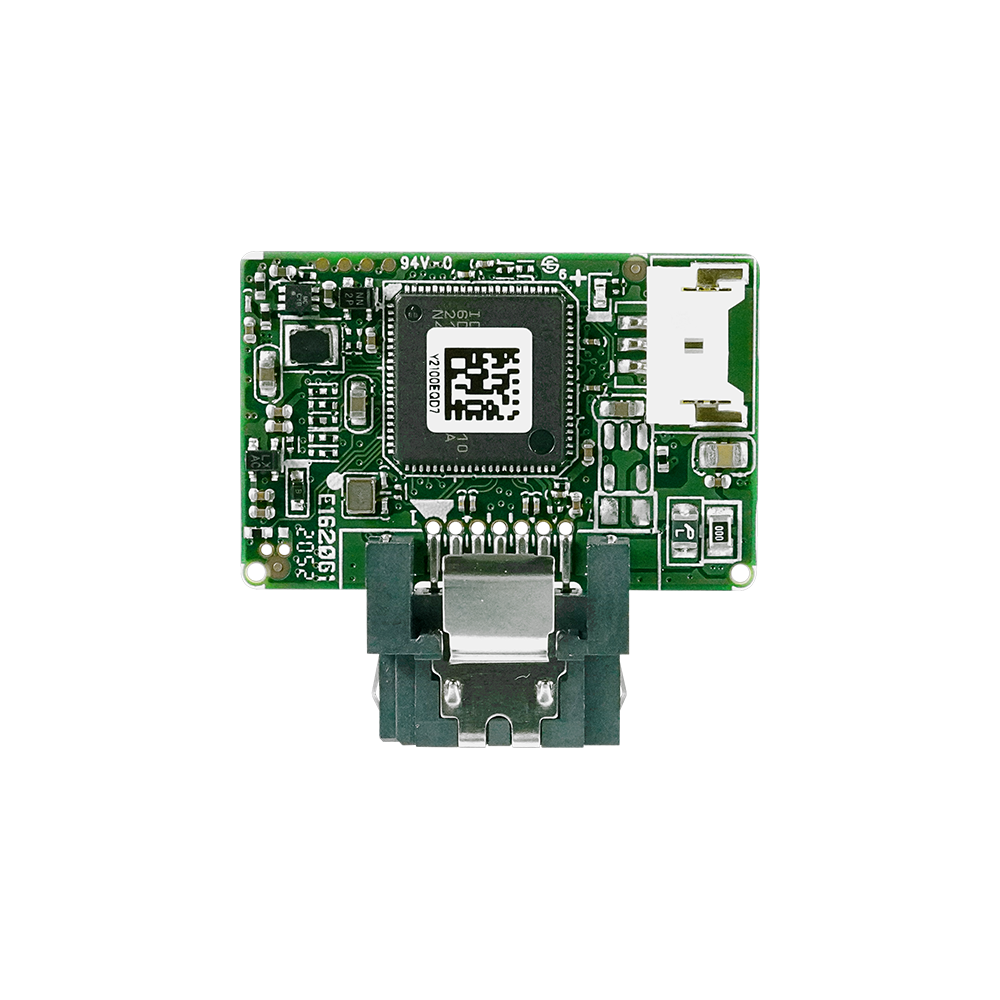

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-SL 3ME3 V2 is designed as the smallest form factor size that could enhance compatibility with various design applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drives are required, and the SSD can be configured as a boot device or data storage device.
Model Name | SATADOM-SL 3ME3 V2 |
Flash Type | MLC |
Interface | SATA III 6.0 Gb/s |
Form Factor | SATADOM-SL |
Capacity | 8GB ~ 128GB |
Sequential R / W (MB/sec, max.) | 200 / 80 |
P/E Cycle | 3,000 |
TBW (Max.) | 37 |
Storage Temperature | -55°C ~ 95°C |
Max. Power Consumption | 1.8W |
Max. Channels | 1 |
External DRAM Buffer | N |
Feature | S.M.A.R.T. |
Dimension (W x L x H/mm) | 30.0 x 28.4 x 7.4 |
Vibration | 20G@[7 ~ 2000Hz] |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Warranty | 2 Years |
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
8GB | DESSL08GD09*C1SCA DESSL08GD09*C1SCB | DESSL08GD09*W1SCA DESSL08GD09*W1SCB |
16GB | DESSL16GD09*C1SCA DESSL16GD09*C1SCB | DESSL16GD09*W1SCA DESSL16GD09*W1SCB |
32GB | DESSL32GD09*C1SCA DESSL32GD09*C1SCB | DESSL32GD09*W1SCA DESSL32GD09*W1SCB |
64GB | DESSL64GD09*CADCA DESSL64GD09*CADCB | DESSL64GD09*WADCA DESSL64GD09*WADCB |
128GB | DESSLA28D09*CADCA DESSLA28D09*CADCB | DESSLA28D09*WADCA DESSLA28D09*WADCB |
*S : Toshiba A19nm MLC / B : Toshiba 15nm MLC
PN end with A : Pin 8 + power cable / B : Pin 8 + Pin 7
