 | SATADOMUltra iSLC Solution Features
|

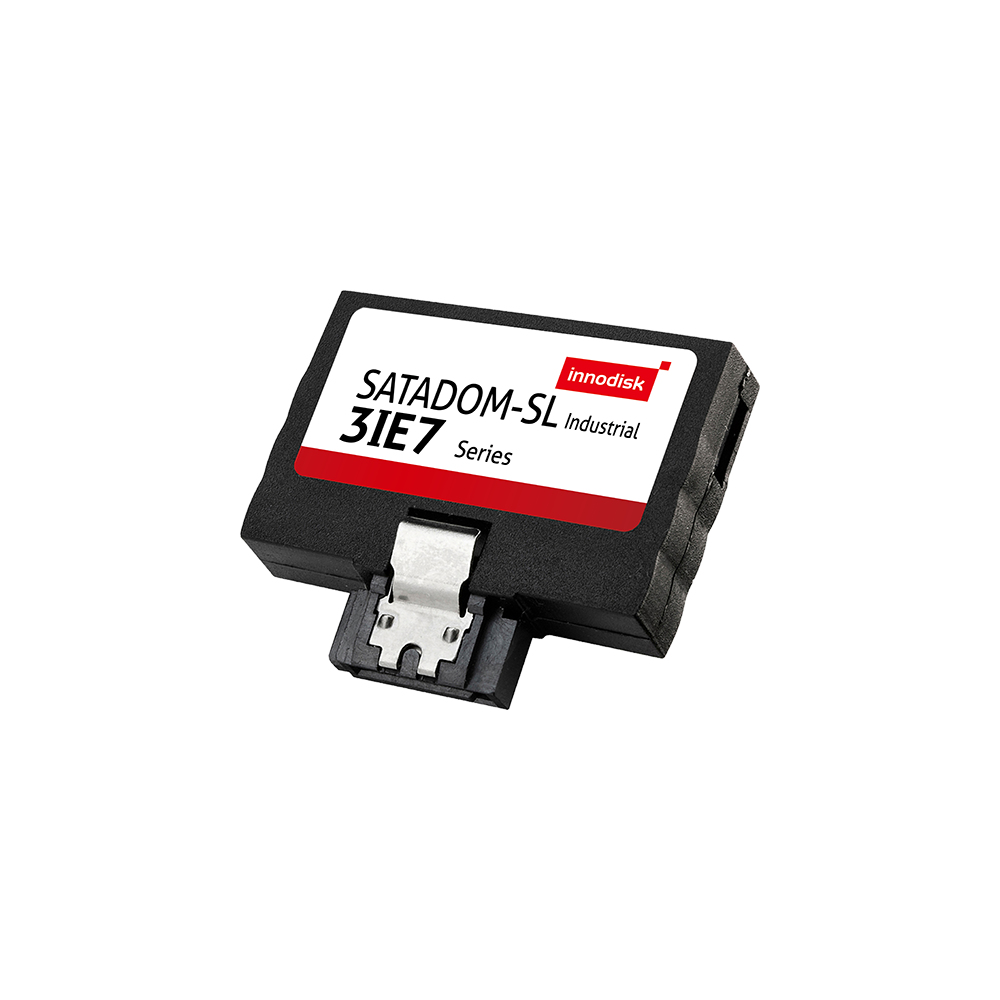

The SATADOM-SL 3IE7 is a SATA III 6.0 Gb/s Flash-based drive tailored for industrial applications. Powered by exclusive Ultra iSLC Technology, it boosts storage lifespan to 100K P/E cycles. The drive also supports essential features such as Thermal Sensor, TRIM, NCQ, and S.M.A.R.T., and comes with Innodisk’s exclusive industrial-grade firmware, offering flexible customization options. This makes it an ideal choice for a wide range of industrial environments.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drives are required, and the SSD can be configured as a boot device or data storage device.
Model Name | SATADOM-SL 3IE7 |
Flash Type | iSLC (3D TLC) |
Interface | SATA III 6.0 Gb/s |
Form Factor | SATADOM-SL |
Capacity | 20GB ~ 80GB |
Sequential R / W (MB/sec, max.) | 550 / 485 |
P/E Cycle | 100,000 |
TBW (Max.) | 10,000 |
Storage Temperature | -55°C ~ 95°C |
Max. Power Consumption | 1.85W |
Max. Channels | 2 |
External DRAM Buffer | N |
Feature | AES, S.M.A.R.T. |
Dimension (W x L x H/mm) | 33.06 x 29.5 x 10.85 |
Vibration | 20G@[7 ~ 2000Hz] |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Warranty | 5 Years |
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
20GB | DHSSL-20GDK1EC1SF* | DHSSL- 20GDK1EW1SF* |
40GB | DHSSL-40GDK1ECADF* | DHSSL- 40GDK1EWADF* |
80GB | DHSSL-80GDK1ECADF* | DHSSL-80GDK1EWADF* |
*PN end with A : Pin 8 + power cable / B : Pin 8 + Pin 7
