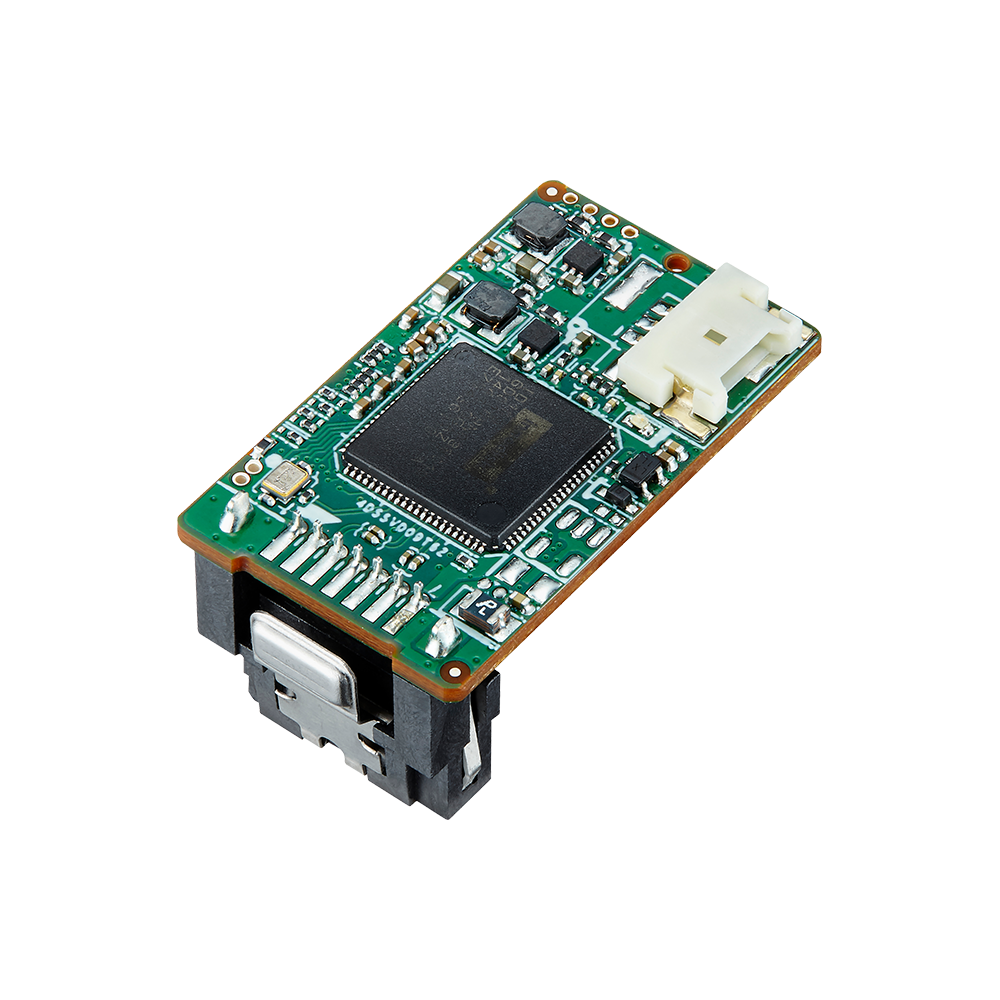

SATADOM-SH 3IE3 V2

SATADOM

8GB ~ 64GB

Features

Built-in Pin 8 power supply
SATA 6.0Gb/s interface
High IOPS to reduce boot up timing
DRAM-less, 100% data integrity
Innovative firmware algorithm
Anti-vibration mechanical design
Built in iData Guard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-SH 3IE3 V2 is designed as the smallest form factor size that could enhance compatibility with various design applications.

The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drives are required, and the SSD can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	SATADOM-SH 3IE3 V2
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	SATADOM-SH
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	240 / 160
P/E Cycle	20,000
TBW (Max.)	173
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.45W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	18.0 x 30.3 x 15.15
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHSSH-08GD09BC1SC*	DHSSH-08GD09BW1SC*
16GB	DHSSH-16GD09BC1SC*	DHSSH-16GD09BW1SC*
32GB	DHSSH-32GD09BC1SC*	DHSSH-32GD09BW1SC*
64GB	DHSSH-64GD09BCADC*	DHSSH-64GD09BWADC*

*PN end with A : Pin 8 + power cable / B : Pin 8 + Pin 7
