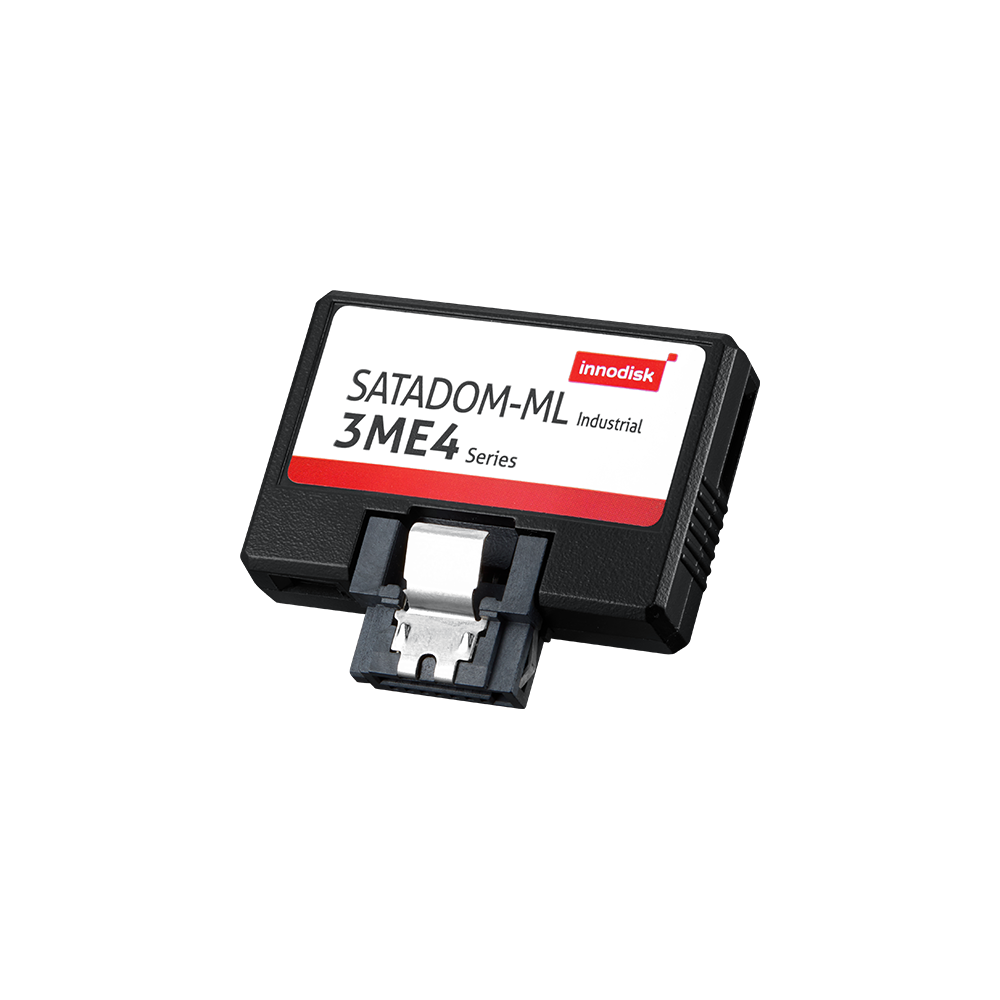

SATADOM-ML 3ME4

SATADOM 32GB ~ 256GB Features SATA III solution for industrial field Exclusive L³ architecture DRAM-less, 100% data integrity Excellent random performance Designed with hardware LDPC ECC engine Built-in Pin 8 power supply Hardware Write Protection supported Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk SATADOM-ML 3ME4 is characterized by L³  architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³  architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk SATADOM-ML 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drives are required, and the SSD can be configured as a boot device or data storage device.

SPECIFICATIONS

ORDER INFORMATION

*PN end with A : Pin 8 + power cable / B : Pin 8 + Pin 7

For more information, please contact our support.
