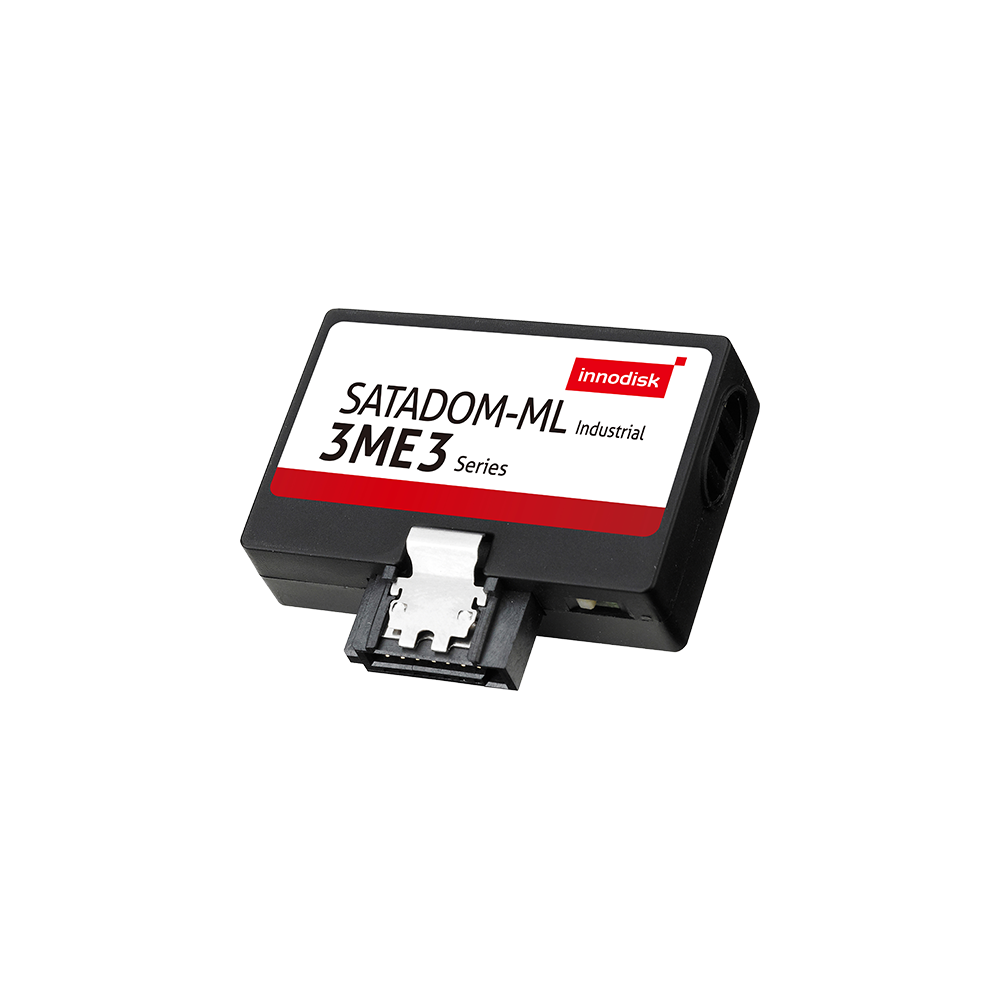

SATADOM-ML 3ME3

SATADOM

16GB ~ 256GB

Features

SATA 6.0Gb/s interface
High IOPS to reduce boot up timing
Built-in Pin 7 power supply
Intelligent error recovery system
Zero mechanical interference
Anti-vibration mechanical design
iSMART disk health monitoring
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-ML 3ME3 is designed as the smallest form factor size that could enhance compatibility with various design applications. Particularly, the 7th pin of standard SATA 7pin connector can optionally be the built-in power VCC pin.

Innodisk SATADOM-ML 3ME3 effectively reduces the boot time of the operation system, and the power consumption is less than that of a hard disk drive (HDD), which complies with ATA protocol. No additional drives are required, and they can be configured as boot devices or data storage devices.

SPECIFICATIONS

Model Name	SATADOM-ML 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	SATADOM-ML
Capacity	16GB ~ 256GB
Sequential R / W (MB/sec, max.)	400 / 140
P/E Cycle	3,000
TBW (Max.)	74
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.4W
Max. Channels	4
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	35.5 x 30.0 x 10.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
16GB	DESML-16GD08*C1DC(F)	DESML-16GD08*W1DC(F)
32GB	DESML-32GD08*C1DC(F)	DESML- 32GD08*W1DC(F)
64GB	DESML-64GD08*C1DC(F)	DESML-64GD08*W1DC(F)
128GB	DESML-A28D08* CAQC(F)	DESML-A28D08* WAQC(F)
256GB	DESML-B56D08* CAQC(F)	DESML-B56D08* WAQC(F)

*S : Toshiba A19nm MLC / B : Toshiba 15nm MLC
PN end with F is SATADOM Pin 7 with power supply version, which doesn’t provide power cable.

For more information, please contact our support.
