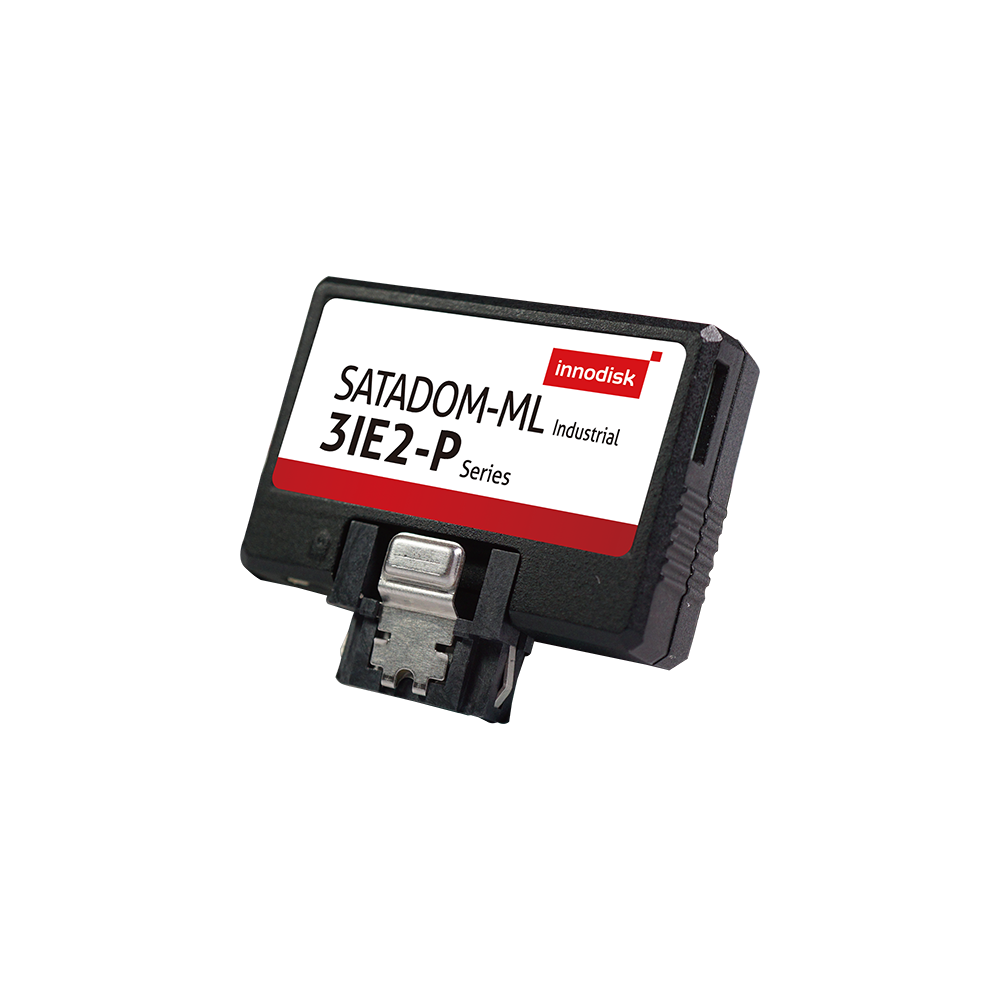

SATADOM-ML 3IE2-P

SATADOM

16GB ~ 128GB

Features

Built-in Pin 8 power supply
SATA 6.0Gb/s interface
High IOPS to reduce boot up timing
Innovative firmware algorithm
Anti-vibration mechanical design
Built in iData Guard
Hardware Write Protection supported
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk Serial ATA Disk on Module (SATADOM) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-ML 3IE2-P is designed as the smallest form factor size that could enhance compatibility with various design applications.

The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drives are required, and the SSD can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	SATADOM-ML 3IE2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	SATADOM-ML
Capacity	16GB ~ 128GB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	20,000
TBW (Max.)	1,250
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.98W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	37.17 x 31.5 x 10.2
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
16GB	DHSML- 16GD81BCBDC*	DHSML- 16GD81BWBDC*
32GB	DHSML- 32GD81BCBQC*	DHSML- 32GD81BWBQC*
64GB	DHSML- 64GD81BCBQC*	DHSML- 64GD81BWBQC*
128GB	DHSML- A28D81BCBQC*	DHSML- A28D81BWBQC*

For more information, please contact our support.
