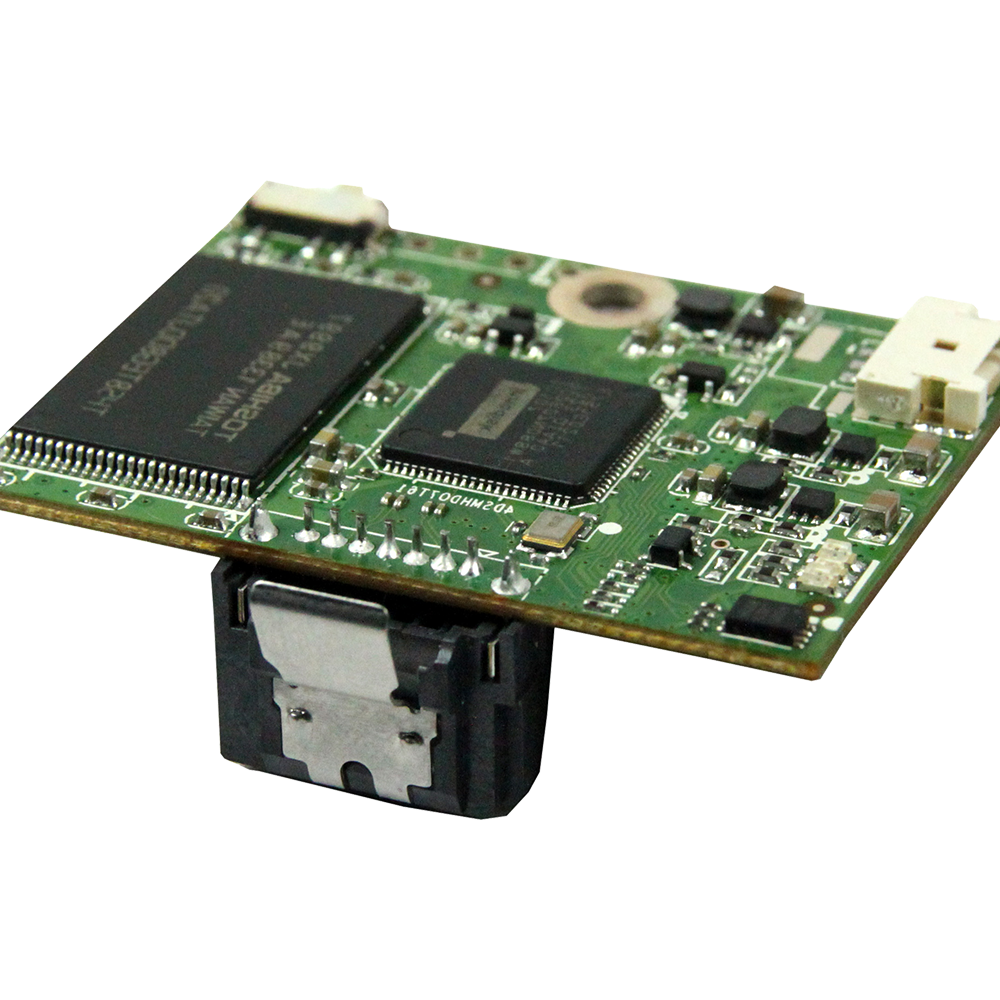

SATADOM-MH 3ME3

SATADOM

8GB ~ 256GB

Features

SATA 6.0Gb/s interface
High IOPS to reduce boot up timing
Built-in Pin 7 power supply
Intelligent error recovery system
Zero mechanical interference
Anti-vibration mechanical design
iSMART disk health monitoring
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-MH 3ME3 is designed as the smallest form factor size that could enhance compatibility with various design applications. Particularly, the 7th pin of standard SATA 7pin connector can optionally be the built-in power VCC pin.

Innodisk SATADOM-MH 3ME3 effectively reduces the boot time of the operation system, and the power consumption is less than that of a hard disk drive (HDD), which complies with ATA protocol. No additional drives are required, and they can be configured as boot devices or data storage devices.

SPECIFICATIONS

Model Name	SATADOM-MH 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	SATADOM-MH
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	300 / 150
P/E Cycle	3,000
TBW (Max.)	76
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	40.0 x 31.18 x 12.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESMH-08GD09BC1SC(F)	DESMH-08GD09BW1SC(F)
16GB	DESMH-16GD09BC1SC(F)	DESMH-16GD09BW1SC(F)
32GB	DESMH-32GD09BC1DC(F)	DESMH-32GD09BW1DC(F)
64GB	DESMH-64GD09BC1DC(F)	DESMH-64GD09BW1DC(F)
128GB	DESMH-A28D09BC1DC(F)	DESMH-A28D09BW1DC(F)
256GB	DESM

PN end with F is SATADOM Pin 7 with power supply version, which doesn’t provide power cable.

For more information, please contact our support.
