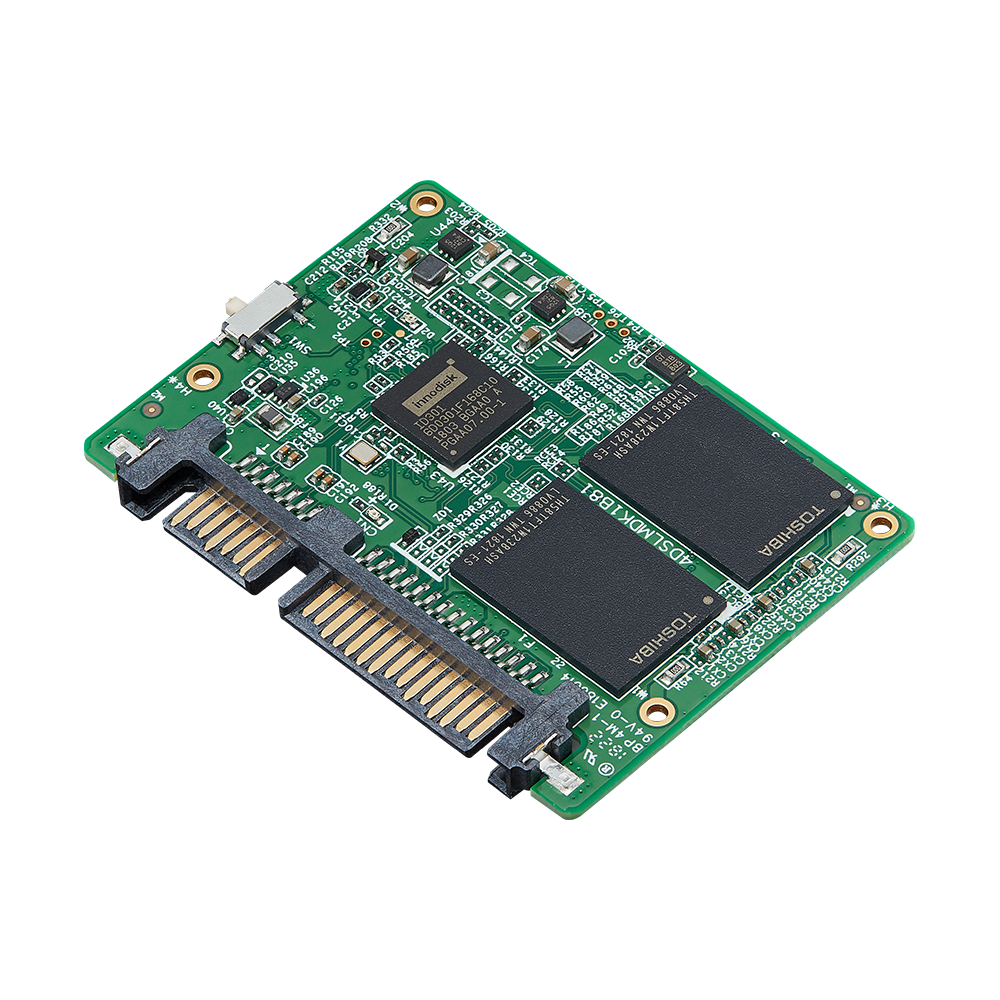

SATA Slim 3TE7

SATA Slim

32GB ~ 2TB

Features

SATA Slim SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk SATA Slim 3TE7 is a SATA III 6.0 Gb/s Flash-based disk, which adopts the latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes the 3TE7 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. Built-in thermal sensor and iData Guard ensure data integrity and reliability of SATA Slim 3TE7 for industrial applications.

SPECIFICATIONS

Model Name	SATA Slim 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	32GB ~ 2TB
Sequential R / W (MB/sec, max.)	550 / 510
P/E Cycle	3,000
TBW (Max.)	2,400
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.3W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DESLM-32GDK1EC1SF	DESLM-32GDK1EW1SF
64GB	DESLM-64GDK1EC*&F	DESLM-64GDK1%W*&F
128GB	DESLM-A28DK1%C*&F	DESLM-A28DK1%W*&F
256GB	DESLM-B56DK1%C*QF	DESLM-B56DK1%W*QF
512GB	DESLM-C12DK1%C*QF	DESLM-C12DK1%W*QF
1TB	DESLM-01TDK1%C*QF	DESLM-01TDK1%W*QF
2TB	DESLM-02TDK1KCAQF	DESLM-02TDK1KWAQF

%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. PCB version control
&. S : 1 channel / D : 2 channels / Q : 4 channels

For more information, please contact our support.
