SATA Slim 3SE3

SATA Slim

8GB ~ 128GB

Features

SATA III solution for industrial field
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Compatible with JEDEC MO-297 standard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

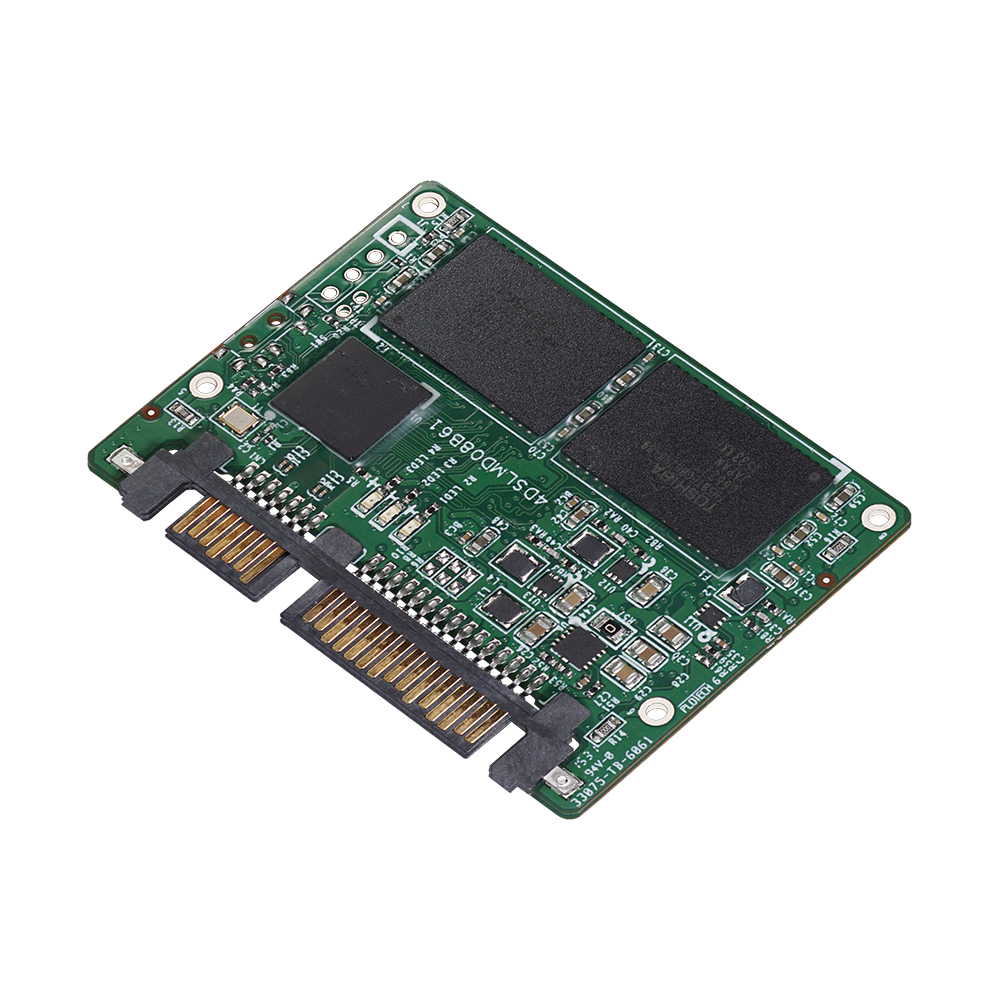

Innodisk SATA Slim 3SE3 is a SATA III 6.0Gb/s Flash-based disk, which is designed with a standard SATA interface (7 + 15 SATA connector) and is compatible with the JEDEC MO-297 standard. With its smaller dimension, the SATA Slim 3SE3 is an alternative solution to a 2.5” SSD for embedded systems that may have mechanical and space concerns.

Innodisk SATA Slim 3SE3 operates under SATA III (6.0Gb/s) interface with excellent performance and reliability, making it the ideal solution for a variety of applications, including embedded systems and industrial fields.

SPECIFICATIONS

Model Name	SATA Slim 3SE3
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	370 / 220
P/E Cycle	60,000
TBW (Max.)	750
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.0W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESLM-08GD08SCAQB	DESLM-08GD08SWAQB
16GB	DESLM-16GD08SCAQB	DESLM-16GD08SWAQB
32GB	DESLM-32GD08SCAQB	DESLM-32GD08SWAQB
64GB	DESLM-64GD08SCAQB	DESLM-64GD08SWAQB
128GB	DESLM-A28D08SCAQB	DESLM-A28D08SWAQB
