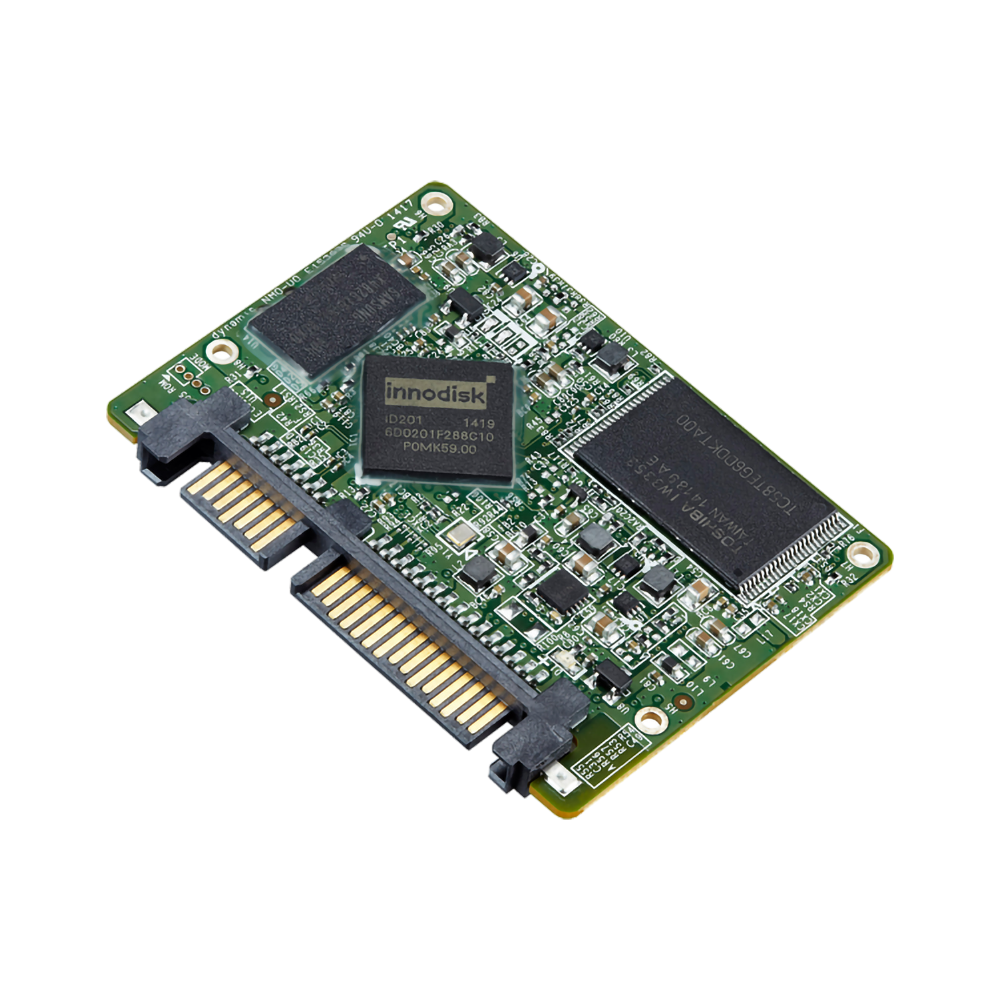

SATA Slim 3MV2-P

Slim

8GB ~ 512GB

Features

High IOPS solution
iData Guard protection
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Compatible with JEDEC MO-297 standard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

InnoREC is Innodisk’s proprietary Flash feature set, which is designed specifically for surveillance applications. Through the intelligent integration of firmware and hardware, the speed and performance required by modern surveillance solutions are fully met. SATA Slim 3MV2-P products provide high-capacity Flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standards. It supports SATA III standard (6.0GHz) with high performance and supports several features, including RECLine, iData Guard, Quick Erase, Thermal sensor, and S.M.A.R.T.

SPECIFICATIONS

Model Name	SATA Slim 3MV2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	8GB ~ 512GB
Sequential R / W (MB/sec, max.)	520 / 460
P/E Cycle	3,000
TBW (Max.)	600
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.6W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Series	Surveillance SSD
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DGSLM-08GD81BC1SC	DGSLM- 08GD81BW1SC
16GB	DGSLM-16GD81BC1&C	DGSLM-16GD81BW1&C
32GB	DGSLM-32GD81BC1&C	DGSLM-32GD81BW1&C
64GB	DGSLM-64GD81BC1QC	DGSLM-64GD81BW1QC
128GB	DGSLM-A28D81BC1QC	DGSLM-A28D81BW1QC
256GB	DGSLM-B56D81BC1QC	DGSLM-B56D81BW1QC
512GB	DGSLM-C12D81BCAQC	DGSLM-C12D81BWAQC

&. S : 1 channel / D : 2 channels / Q : 4 channels
For TCG Opal function, the PN Code 10th ~ 12th will be D82.

For more information, please contact our support.
