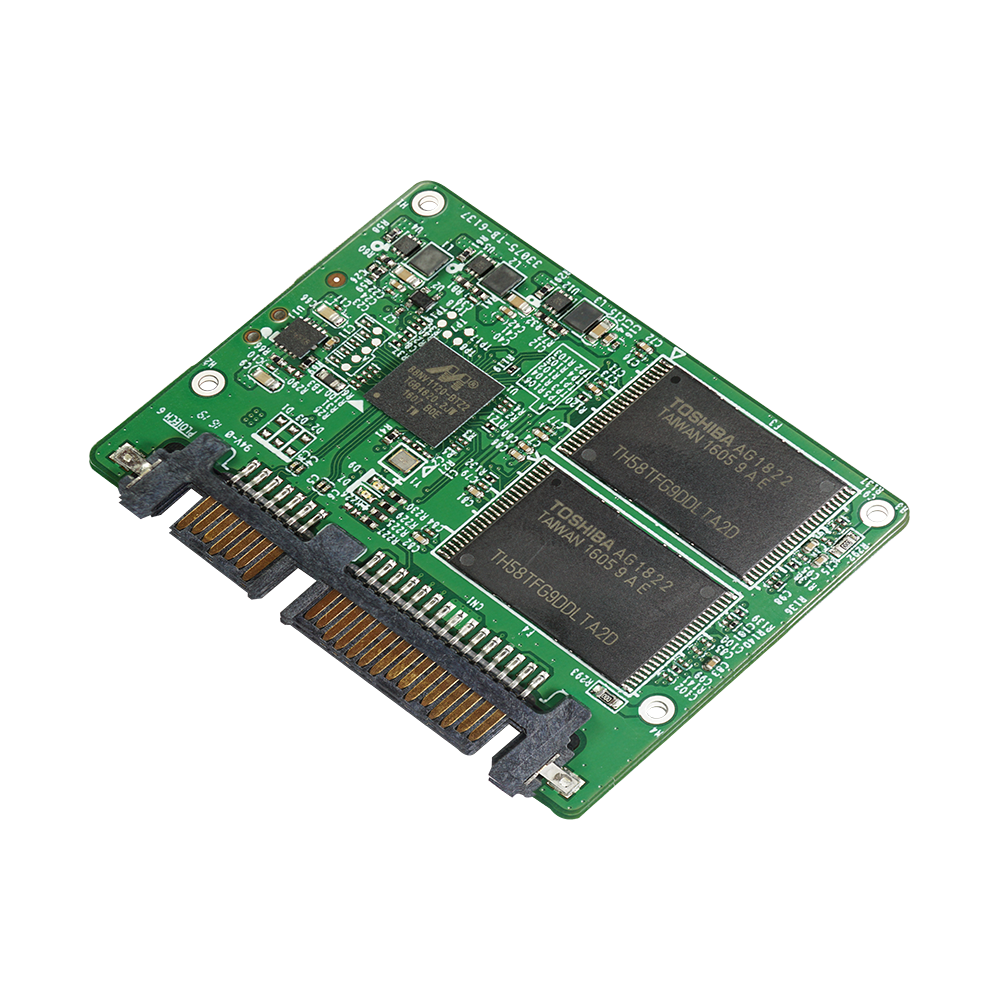

SATA Slim 3ME4

SATA Slim

8GB ~ 256GB

Features

SATA III solution for industrial field
Exclusive L³ architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM, NCQ, and S.M.A.R.T.
Compatible with JEDEC MO-297 standard
Designed with LDPC ECC engine
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk SATA Slim 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. L² architecture multiplied by LDPC (Low Density Parity Check) is Innodisk’s exclusive L³ architecture. L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability. Innodisk SATA Slim 3ME4 is designed for the industrial field and supports several standard features, including TRIM, NCQ, and S.M.A.R.T..

In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	SATA Slim 3ME4
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	530 / 210
P/E Cycle	3,000
TBW (Max.)	416
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.8W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESLM-08GM41BC1SC	DESLM-08GM41BW1SC
16GB	DESLM-16GM41BC1&C	DESLM-16GM41BW1&C
32GB	DESLM-32GM41BC1DC	DESLM-32GM41BW1DC
64GB	DESLM-64GM41BC1DC	DESLM-64GM41BW1DC
128GB	DESLM-A28M41BC1DC	DESLM-A28M41BW1DC
256GB	DESLM-B56M41BC1DC	DESLM-B56M41BW1DC

&. S : 1 channel / D : 2 channels
