SATA Slim 3ME3

Slim

8GB ~ 256GB

Features

Innovative firmware algorithm
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM, NCQ, and S.M.A.R.T.
iSMART disk health monitoring
Compatible with JEDEC MO-297 standard
Alternatively solution of 2.5”SSD
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

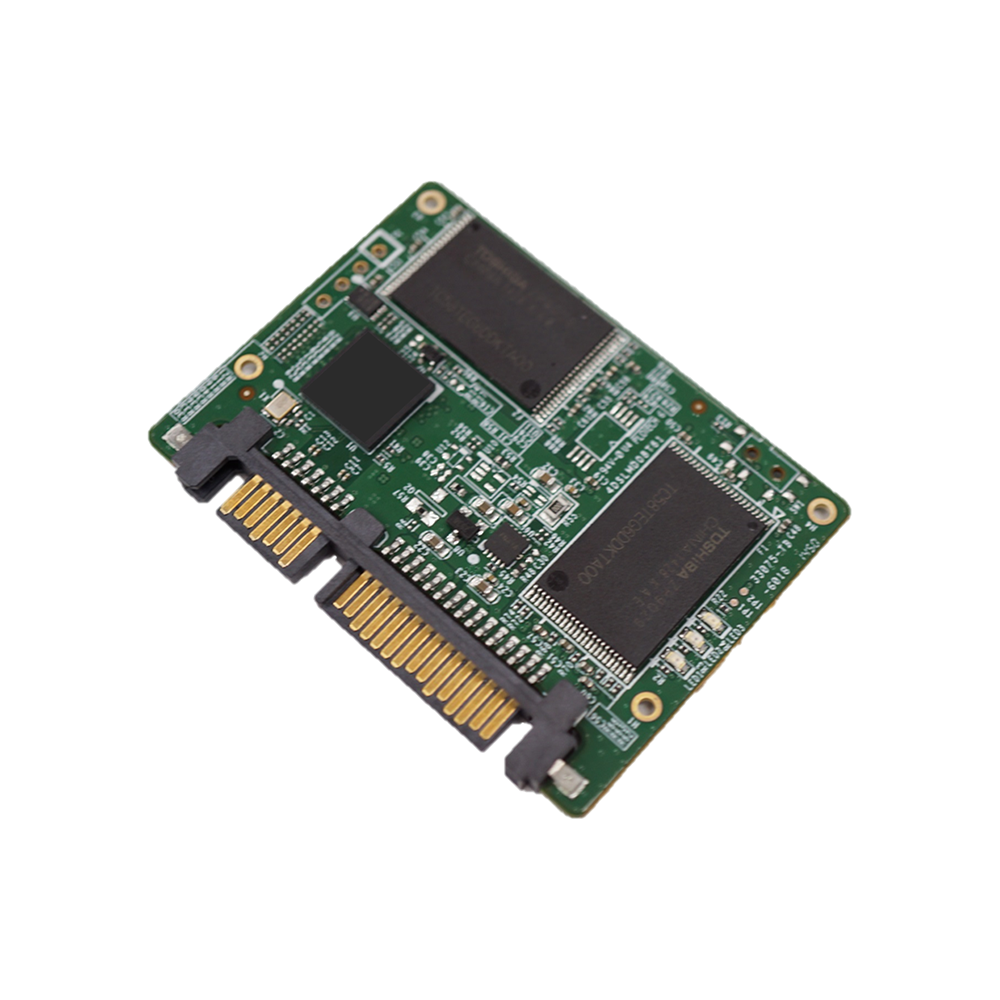

Innodisk SATA Slim 3ME3 is a SATA III 6.0Gb/s Flash-based disk, which is designed with a standard SATA interface (7 + 15 SATA connector). With its smaller dimension, SATA Slim 3ME3 is an alternative solution of 2.5” SSD for that embedded system that may have mechanical and space concerns.

Innodisk SATA Slim 3ME3 operates under a SATA III (6.0Gb/s) interface with excellent performance and reliability, making it the ideal solution for a variety of applications, including embedded systems and industrial fields.

SPECIFICATIONS

Model Name	SATA Slim 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	420 / 140
P/E Cycle	3,000
TBW (Max.)	75
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.6W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESLM-08GD09BC1SC	DESLM-08GD09BW1SC
16GB	DESLM-16GD09BC1&C	DESLM-16GD09BW1&C
32GB	DESLM-32GD08BC1&C	DESLM-32GD08BW1&C
64GB	DESLM-64GD08BC1QC	DESLM-64GD08BW1QC
128GB	DESLM-A28D08BC1QC	DESLM-A28D08BW1QC
256GB	DESLM-B56D08BC1QC	DESLM-B56D08BW1QC

For more information, please contact our support.
