SATA Slim 3IE7

Slim

Ultra iSLC Solution

Features

SATA Slim SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

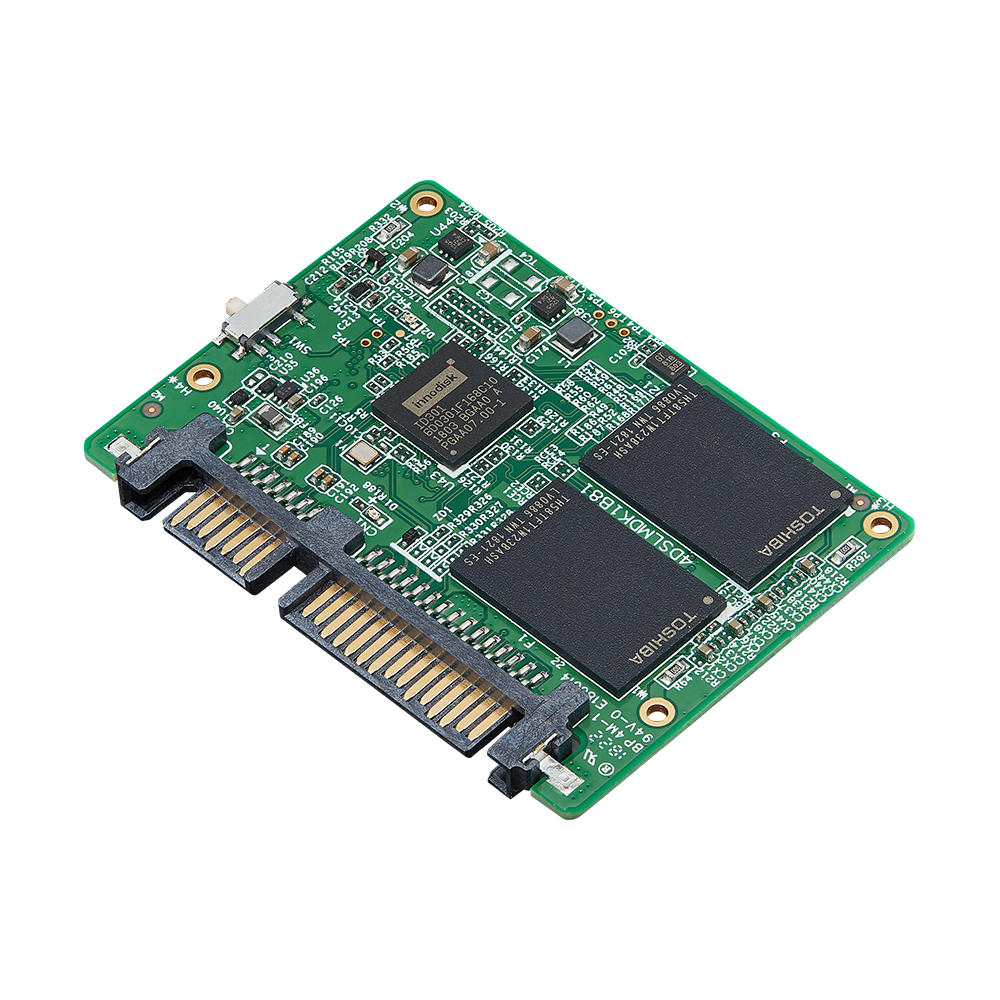

The SATA Slim 3IE7 is a SATA III 6.0 Gb/s Flash-based drive tailored for industrial applications. Powered by exclusive Ultra iSLC Technology, it boosts storage lifespan to 100K P/E cycles. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

The drive also supports essential features such as Thermal Sensor, TRIM, NCQ, and S.M.A.R.T., and comes with Innodisk’s exclusive industrial-grade firmware, offering flexible customization options. This makes it an ideal choice for a wide range of industrial environments.

SPECIFICATIONS

Model Name	SATA Slim 3IE7
Flash Type	iSLC (3D TLC)
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	40GB ~ 640GB
Sequential R / W (MB/sec, max.)	550 / 500
P/E Cycle	30,000 / 100,000
TBW (Max.)	40,000
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3.0W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
40GB	DHSLM-40GDK1%CADL	DHSLM-40GDK1%WADL
80GB	DHSLM-80GDK1%CA&L	DHSLM-80GDK1%WA&L
160GB	DHSLM-A60DK1%CAQL	DHSLM-A60DK1%WAQL
320GB	DHSLM-D2GDK1KCAQL	DHSLM-D2GDK1KWAQL
640GB	DHSLM-F4GDK1KCAQL	DHSLM-F4GDK1KWAQL

%. G : 96 layers 3D TLC / K : 112 layers 3D TLC
&. D : 2 channels / Q : 4 channels
