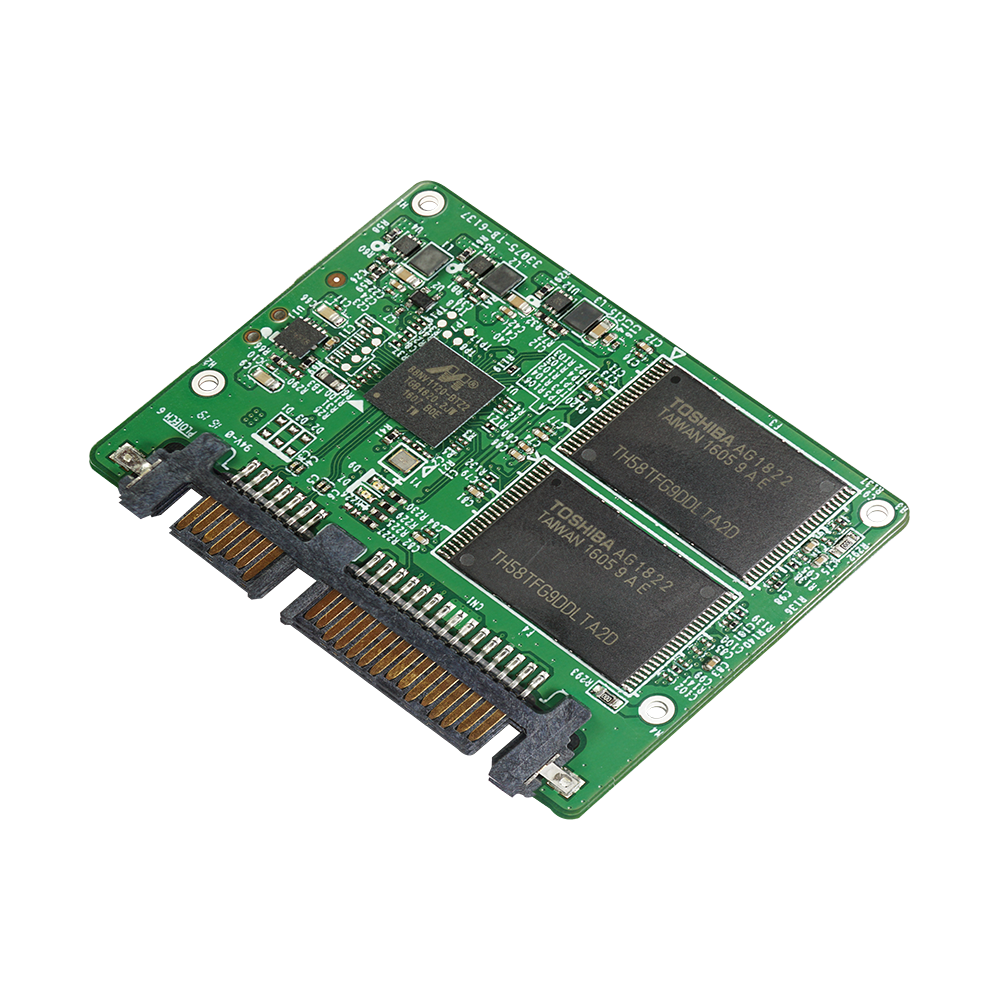

SATA Slim 3IE4

SATA Slim

8GB ~ 128GB

Features

SATA III solution for industrial field
Exclusive L³ architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM, NCQ, and S.M.A.R.T.
Compatible with JEDEC MO-297 standard
Designed with LDPC ECC engine
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk SATA Slim 3IE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. L² architecture multiplied by LDPC (Low Density Parity Check) is Innodisk’s exclusive L³ architecture. L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability. Innodisk SATA Slim 3IE4 is designed for the industrial field and supports several standard features, including TRIM, NCQ, and S.M.A.R.T..

In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	SATA Slim 3IE4
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	MO-297
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	530 / 360
P/E Cycle	20,000
TBW (Max.)	1,388
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.8W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 39.0 x 4.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHSLM-08GM41BC1&C	DHSLM-08GM41BW1&C
16GB	DHSLM-16GM41BC1DC	DHSLM-16GM41BW1DC
32GB	DHSLM-32GM41BC1DC	DHSLM-32GM41BW1DC
64GB	DHSLM-64GM41BC1DC	DHSLM-64GM41BW1DC
128GB	DHSLM-A28M41BC1DC	DHSLM-A28M41BW1DC

&. S : 1 channel / D : 2 channels
