RKP-A110 Series

Features and Benefits

1U rackmount computer with fanless design
Intel Atom® X Series processor
Rich interface options for up to 12 LAN ports and up to 10 serial ports
Standard form factor that fits most field applications

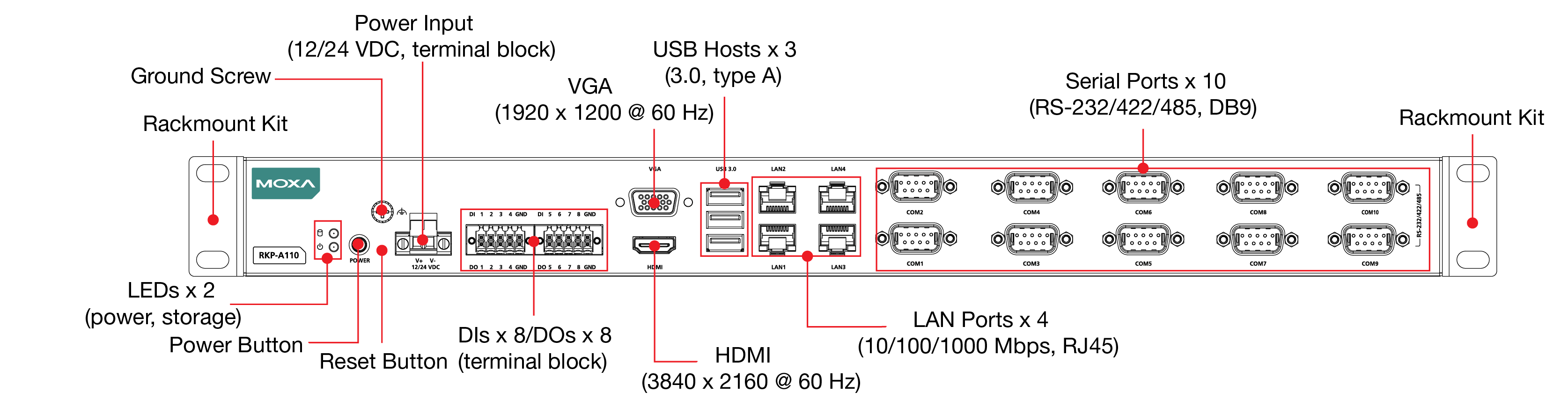

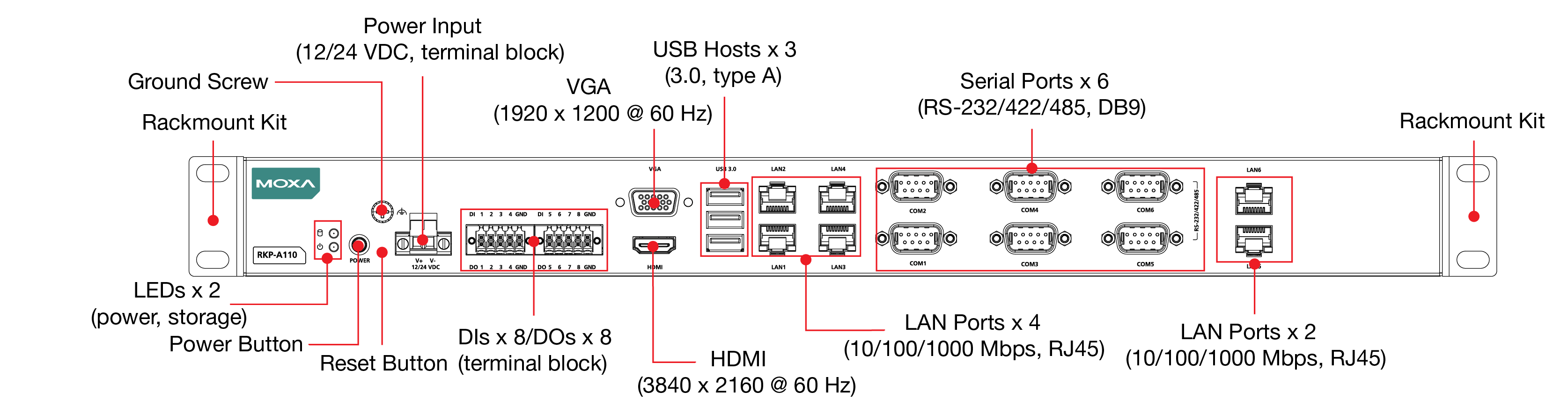

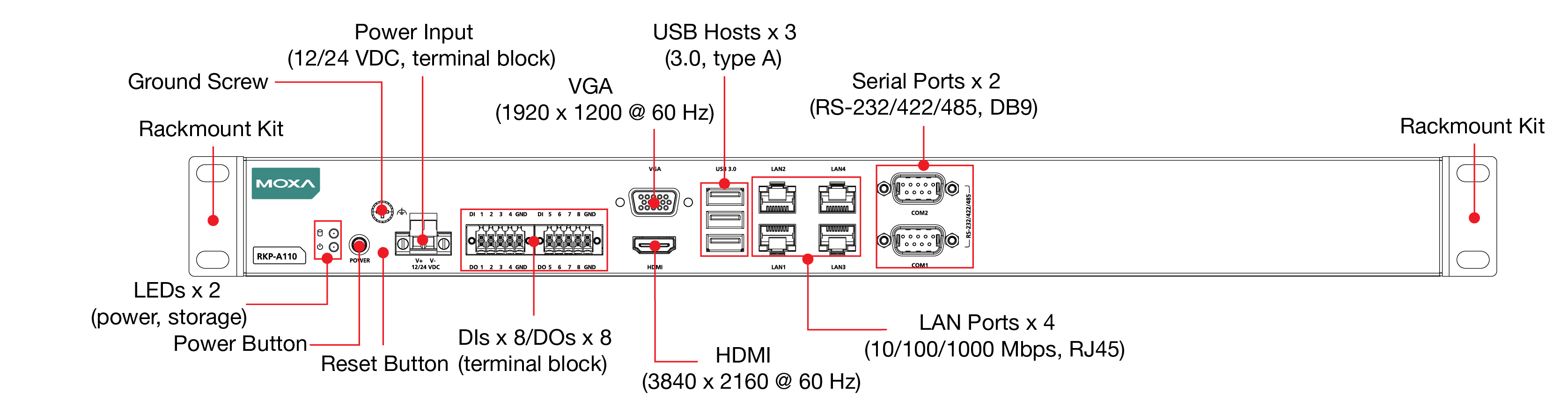

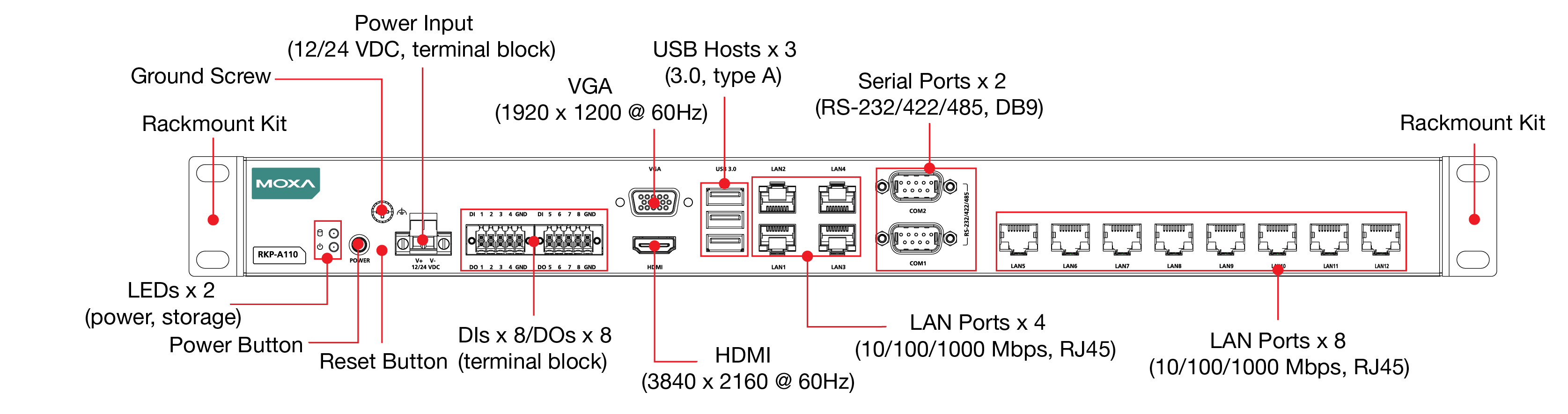

Unified front-panel connectivity design for easy access of interfaces
-30 to 60°C operating temperature range

Introduction

The RKP-A110 rackmount computers are powered by an Intel Atom® X Series processor. The computers come with a rich set of interface options including up to 12 gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel, enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storage drives and an external replaceable RTC battery design deliver a reliable, durable, and versatile yet user-friendly computing platform.

Designed as 1U fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-A110 computers are ideal as secure and reliable computing platforms for industrial applications in extreme operating environments.
