Extend SDN to the Last Mile with VigorSwitch
SDN for Scale AgilityWhile SDN core overlay infrastructure is getting well-developed, more and more Service Providers are now aiming their next step to extend the SDN services all the way to customer sites. Customers are always looking for more services, more bandwidth, and lower prices. SDN’s key characters, including policy-based control and automated provisioning, help service providers to react agilely while keeping cost low. |
DrayTek OpenFlow Switch Aiming for SMB Deployment at a Fraction of the CostDrayTek OpenFlow switch supports operating under standard mode (as a traditional layer 2 bridge switch) and SDN mode (supporting OpenFlow 1.3). With this flexibility, service providers can keep support and inventory simple, and easily change between modes upon installations. |
Centralized Management/MaintenanceAll VigorSwitches supports TR-069 protocol and can be managed by DrayTek VigorACS 3 cloud-based management platform. When operating in SDN mode, VigorACS helps to do remote maintenance with low cost; while when operating in legacy mode, VigorACS also provides configuration management. |
SDN Features for Edge Network
DrayTek OpenFlow Switch supports various meters and actions provides by OpenFlow 1.3, and thus helps service providers creating new services agilely.
Following are some example OpenFlow features supported by VigorSwitch and the application in different scenarios:
OpenFlow Meters / Actions
OpenFlow Meters | OpenFlow Actions |
- Received/Sent packets
- Received/Sent bytes
- Received/Sent drops
- Received/Sent errors
| - ETH src/dest
- ETH type
- VLAN VID/PCP
- IPv4 src/dest
| - IPv4 DSCP/protocol
- NAT
- TCP/UDP src/dest
|

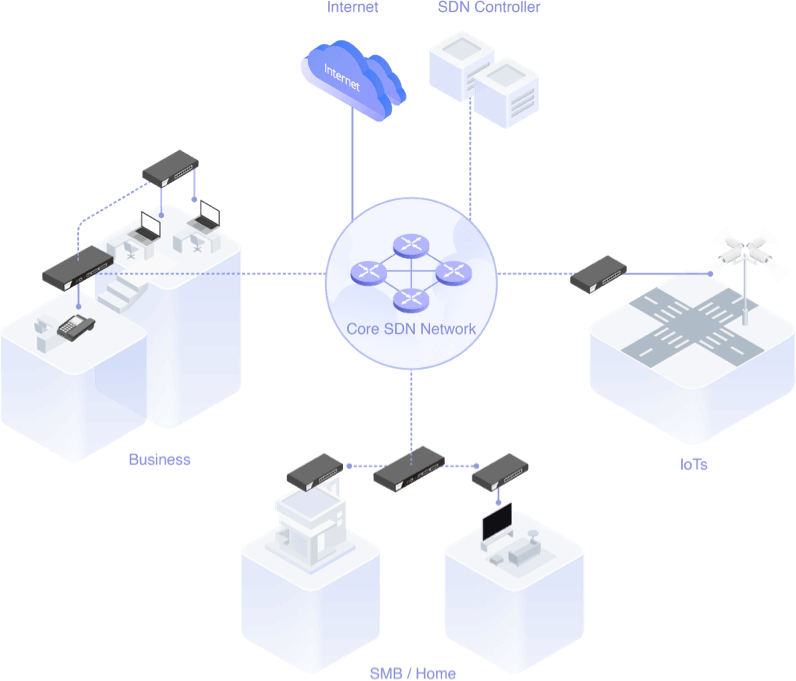

OpenFlow Applications
| Business- Meters
- QoS for VoIP
- Rate Limit
SMB / Home- Meters
- Rate Limit for users
- TCP/UDP policies for IPTV
- QoS for IPTV
|
OpenFlow VigorSwitch Models
With VigorSwitch’s SMB-oriented positioning and pricing, service provider will be able to deploy SDN to the last mile of their networks and thus differentiate their services from others, and also capable of improving their revenues.
*The OpenFlow functionality is project-based and must be activated by DrayTek HQ. Please contact your Sales for further inquiries.
Model | VigorSwitch G2540xs VigorSwitch P2540xs | VigorSwitch FX2120 |
---|
Front Panel | | |
Switch Mode Status | - Standard Mode Ready
- SDN Mode Ready
| - Standard Mode ETA in 2021 Q4
- SDN Mode ETA in 2022
|
OpenFlow Version | 1.3 | 1.3 |
Ports | | - 12 x SFP+
- 1 x Console RJ45
|
PoE | - 400 watts (P model)
- PoE/PoE+
| -- |
OpenFlow Table Size | 1920 | 1920 |
