nanoSSD 3TE7

nanoSSD

32GB ~ 256GB

Features

Compliant with JEDEC MO-276 specification
SATA III 6.0Gb/s
Supports NCQ
Intelligent Flash management and real-time garbage collection
Supports S.M.A.R.T. and iSMART utility
Zero mechanical interference

BORN FOR SUPERIOR PERFORMANCE

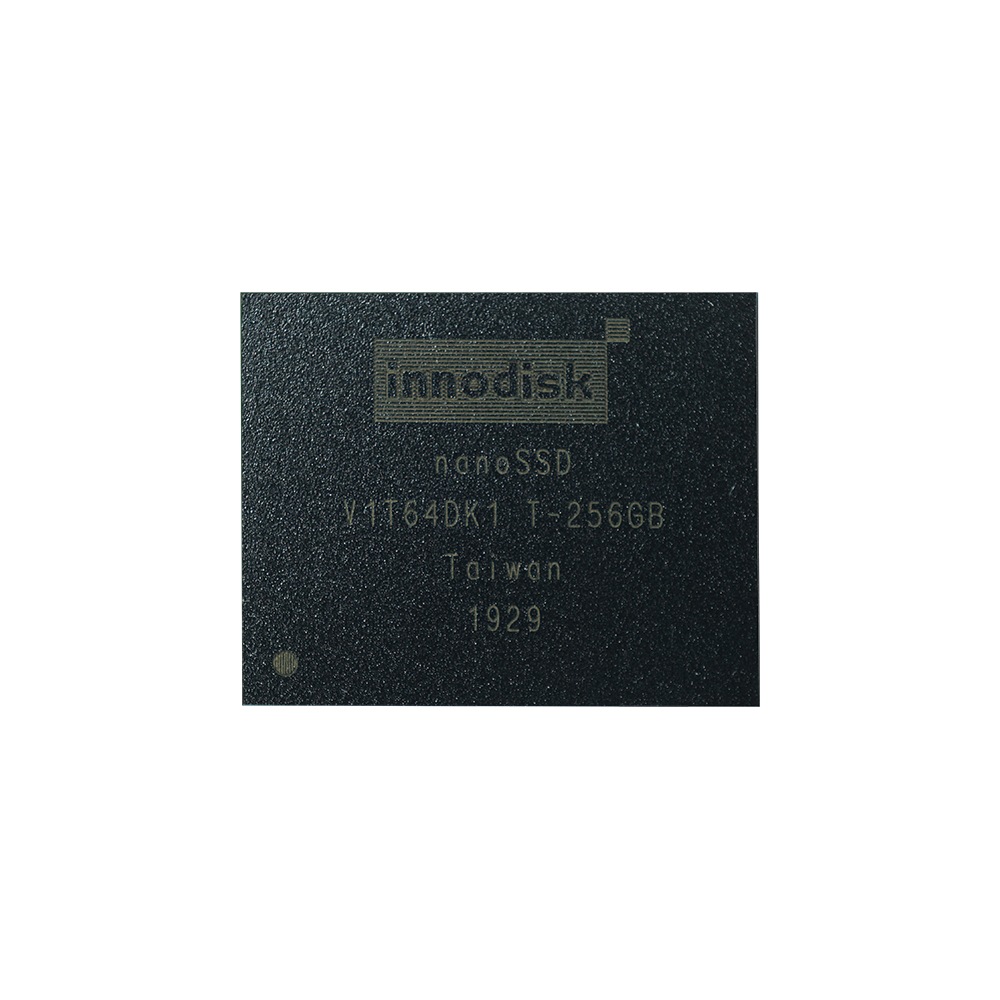

Innodisk nanoSSD is an integrated SATA storage device, including a NAND Flash controller and the latest NAND Flash in a JEDEC MO-276 (?SSD) form factor with a ball grid array (BGA) package. The nanoSSD supports SATA III 6.0Gb/s within a tiny dimension, and it has low power consumption and high reliability. It offers an ideal solution for embedded, automotive, medical, gaming, and most industrial applications.

SPECIFICATIONS

Model Name	nanoSSD 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 1620
Capacity	32GB ~ 256GB
Sequential R / W (MB/sec, max.)	560 / 260
P/E Cycle	3,000
TBW (Max.)	300
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.9W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, S.M.A.R.T.
Dimension (W x L x H/mm)	16.0 x 20.0 x 1.74
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)
32GB	DENSD-32GDK1ECASL
64GB	DENSD-64GDK1ECADL
128GB	DENSD-A28DK1ECAQL
256GB	DENSD-B56DK1ECAQL
