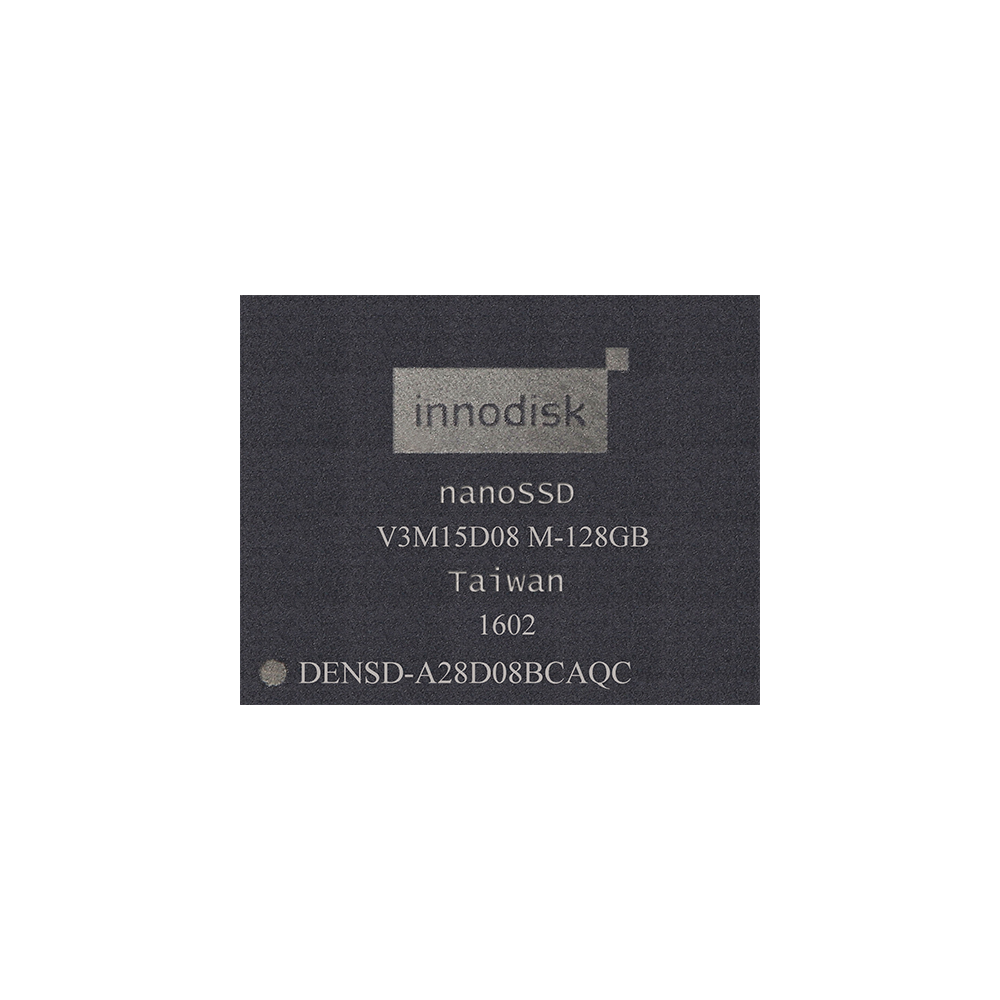

nanoSSD 3ME3

nanoSSD

16GB ~ 128GB

Features

Compliant with JEDEC MO-276 Specification
SATA III 6.0Gb/s
Supports NCQ
Intelligent Flash management and real-time garbage collection
Supports S.M.A.R.T. and iSMART utility
Zero mechanical interference
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk nanoSSD is an integrated SATA storage device; it offers high performance, lightweight, low power consumption, and cost efficiency in a JEDEC MO-276 (?SSD) standard form factor. The nanoSSD combines with a SATA III Flash controller, making it an ideal solution for a wide range of embedded systems, thin PC, automotive devices, medical equipment, and most industrial applications.

nanoSSD also comes with industrial-level firmware design for extreme environments, and there is the possibility of customized firmware to enhance fitness in different applications.

SPECIFICATIONS

Model Name	nanoSSD 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 1620
Capacity	16GB ~ 128GB
Sequential R / W (MB/sec, max.)	410 / 140
P/E Cycle	3,000
TBW (Max.)	37
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.3W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	16.0 x 20.0 x 1.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
16GB	DENSD-16GD08BCASC	DENSD-16GD08BWASC
32GB	DENSD-32GD08BCADC	DENSD-32GD08BWADC
64GB	DENSD-64GD08BCAQC	DENSD-64GD08BWAQC
128GB	DENSD-A28D08BCAQC	DENSD-A28D08BWAQC

For more information, please contact our support.
