nanoSSD 3IE3

nanoSSD

16GB ~ 64GB

Features

Compliant with JEDEC MO-276 Specification
SATA III 6.0Gb/s
Supports NCQ
Intelligent Flash management and real-time garbage collection
Supports S.M.A.R.T. and iSMART utility
Zero mechanical interference
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

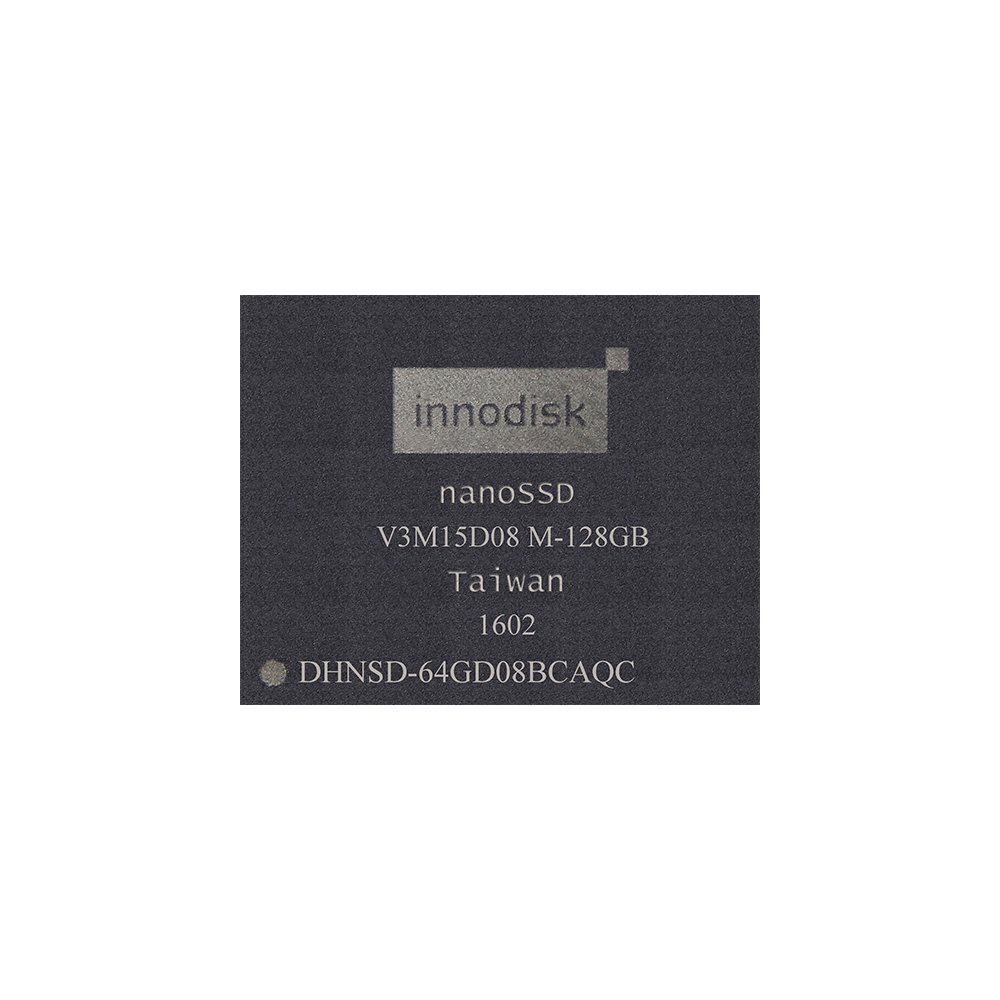

Innodisk nanoSSD is an integrated SATA storage device; it offers high performance, lightweight, low power consumption, and cost efficiency in a JEDEC MO-276 (?SSD) standard form factor. The nanoSSD combines with a SATA III Flash controller, making it an ideal solution for a wide range of embedded systems, thin PC, automotive devices, medical equipment, and most industrial applications.

nanoSSD also comes with industrial-level firmware design for extreme environments, and there is the possibility of customized firmware to enhance fitness in different applications.

SPECIFICATIONS

Model Name	nanoSSD 3IE3
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 1620
Capacity	16GB ~ 64GB
Sequential R / W (MB/sec, max.)	440 / 260
P/E Cycle	20,000
TBW (Max.)	125
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.3W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	16.0 x 20.0 x 1.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
16GB	DHNSD-16GD08BCADC	DHNSD-16GD08BWADC
32GB	DHNSD-32GD08BCAQC	DHNSD-32GD08BWAQC
64GB	DHNSD-64GD08BCAQC	DHNSD-64GD08BWAQC
