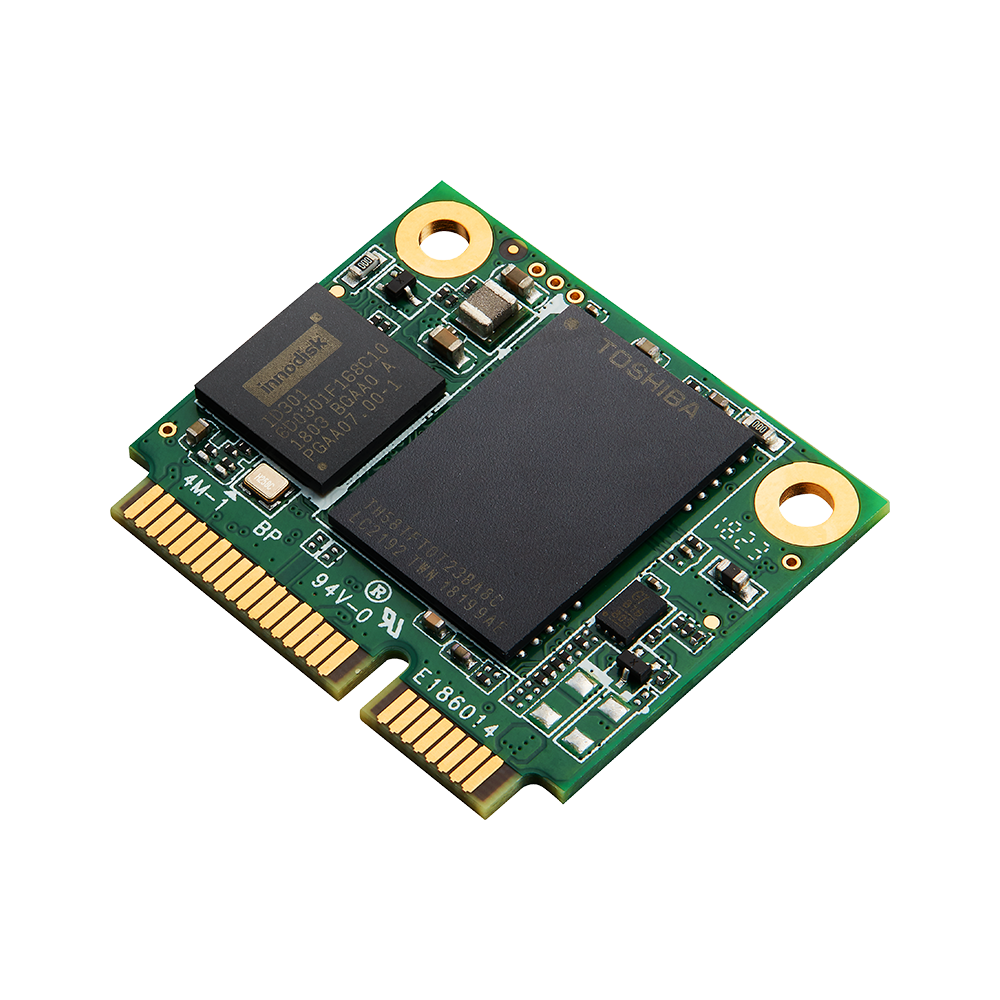

mSATA mini 3TE7

mSATA

32GB ~ 512GB

Features

mSATA SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down
iData Guard for abnormal power failure
DEVSLP supported

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA mini 3TE7 is a SATA III 6.0 Gb/s Flash-based disk, which adopts the latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes the 3TE7 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. Built-in thermal sensor and iData Guard ensure data integrity and reliability of mSATA mini 3TE7 for industrial applications.

SPECIFICATIONS

Model Name	mSATA mini 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300B
Capacity	32GB ~ 512GB
Sequential R / W (MB/sec, max.)	560 / 330
P/E Cycle	3,000
TBW (Max.)	600
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	1.7W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 26.8 x 3.85
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DEMSM-32GDK1EC1SF	DEMSM-32GDK1EW1SF
64GB	DEMSM-64GDK1EC1DF	DEMSM-64GDK1EW1DF
128GB	DEMSM-A28DK1EC1DF	DEMSM-A28DK1EW1DF
256GB	DEMSM-B56DK1EC1DF	DEMSM-B56DK1EW1DF
512GB	DEMSM-C12DK1ECAQF	DEMSM-C12DK1EWAQF

For more information, please contact our support.
