mSATA mini 3SE3

mSATA

4GB ~ 32GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
JEDEC standard MO-300 dimension
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

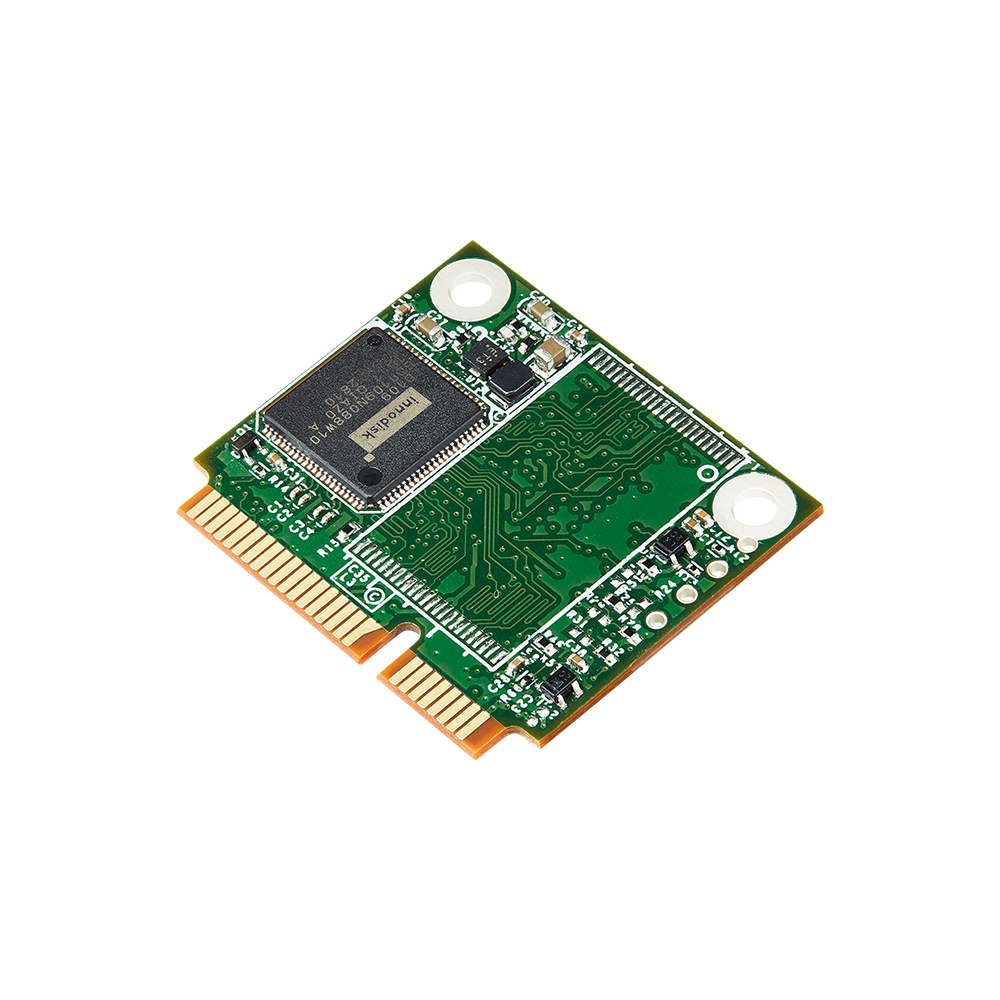

Innodisk mSATA mini 3SE3 is designed as the standard Mini PCIe form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the MO-300 / MO-300B specification, which is established by JEDEC. Regarding mechanical interference, Innodisk mSATA mini 3SE3 absolutely replaces the traditional hard disk and makes personal computers, in any field, smaller and more manageable.

Innodisk mSATA mini 3SE3 effectively reduces the booting time of the operation system, and the power consumption is less than that of a hard disk drive (HDD). It complies with ATA protocol; no additional drives are required, and it can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	mSATA mini 3SE3
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300B
Capacity	4GB ~ 32GB
Sequential R / W (MB/sec, max.)	215 / 120
P/E Cycle	60,000
TBW (Max.)	192
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.7W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	29.8 x 26.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DEMSM-04GD09SCADB	DEMSM-04GD09SWADB
8GB	DEMSM-08GD09SCADB	DEMSM-08GD09SWADB
16GB	DEMSM-16GD09SCADB	DEMSM-16GD09SWADB
32GB	DEMSM-32GD09SCADB	DEMSM-32GD09SWADB

For more information, please contact our support.
