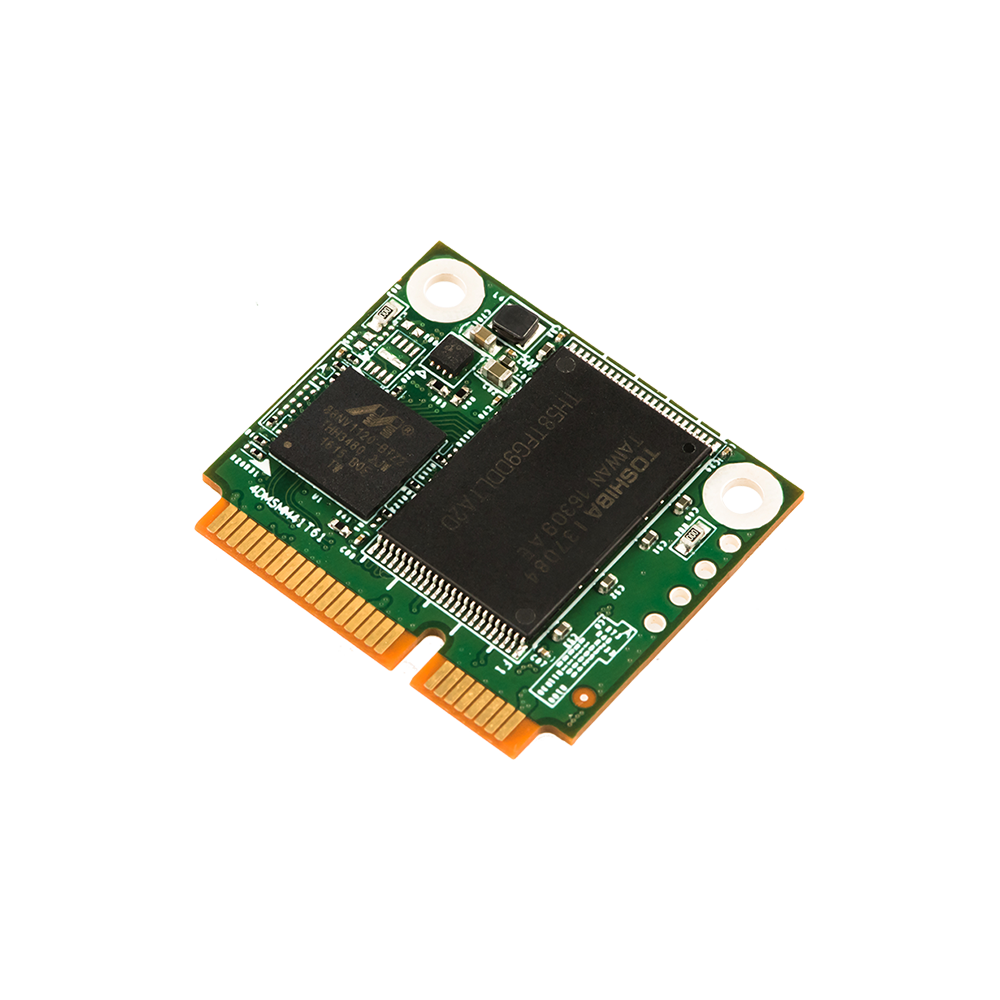

mSATA mini 3ME4

mSATA

8GB ~ 128GB

Features

SATA 6.0Gb/s interface
Followed JEDEC MO-300 / MO-300B standard
LDPC technology secures SSD reliability
DRAM-less, high-level data integrity
Excellent IOPS boosts system performance
Built-in thermal sensor
Supports S.M.A.R.T., TRIM, and NCQ
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA mini 3ME4 is a SATA III 6.0 Gb/s Flash-based disk, which adopts the latest controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes the 3ME4 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. A built-in thermal sensor ensures data integrity and reliability of mSATA mini 3ME4 for industrial applications.

SPECIFICATIONS

Model Name	mSATA mini 3ME4
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300B
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	470 / 125
P/E Cycle	3,000
TBW (Max.)	208
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.6W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	30.0 x 26.8 x 3.4
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEMSM-08GM41BC1SC	DEMSM-08GM41BW1SC
16GB	DEMSM-16GM41BC1&C	DEMSM-16GM41BW1&C
32GB	DEMSM-32GM41BC1DC	DEMSM-32GM41BW1DC
64GB	DEMSM-64GM41BC1DC	DEMSM-64GM41BW1DC
128GB	DEMSM-A28M41BC1DC	DEMSM-A28M41BW1DC

&. S : 1 channel / D : 2 channels
