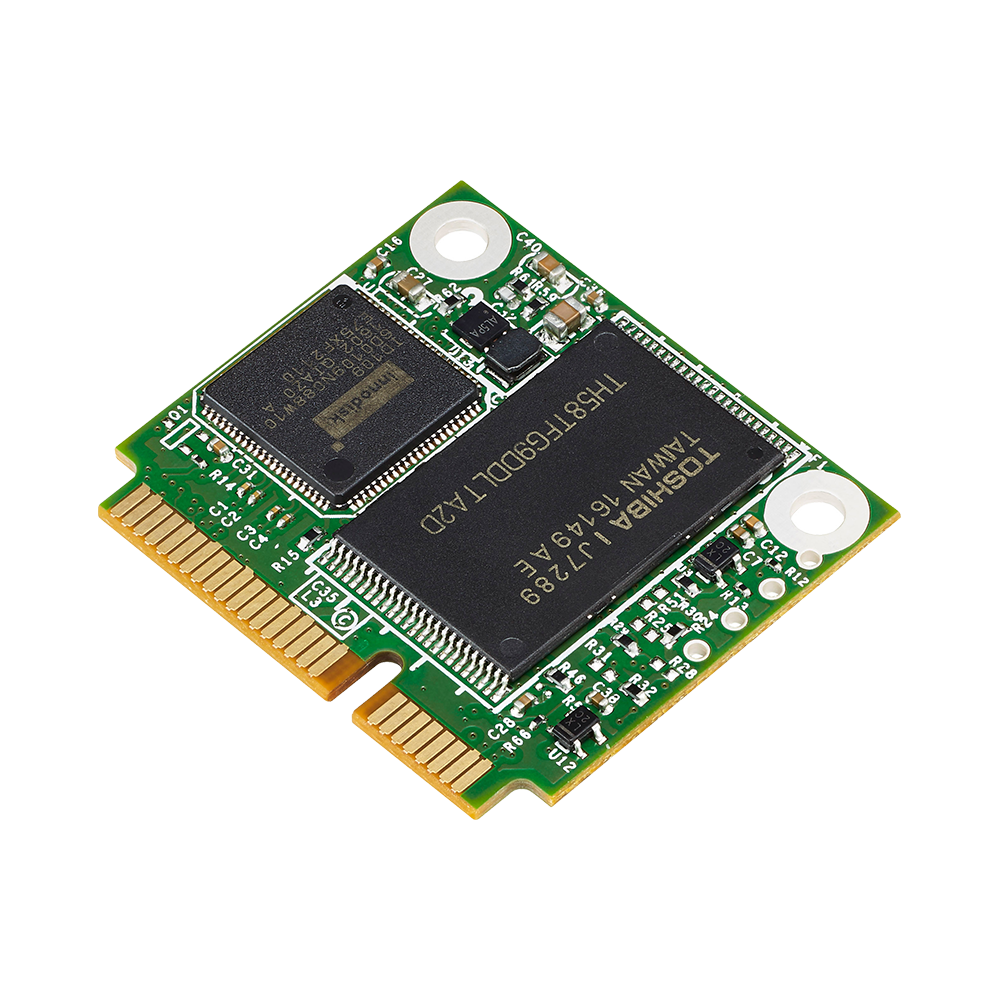

mSATA mini 3ME3

mSATA

8GB ~ 128GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
JEDEC standard MO-300 dimension
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA mini 3ME3 is designed with mSATA mini form factor by MO-300 / MO-300B, which is established by JEDEC, and supports SATA III standard (6.0Gb/s) with excellent performance. Regarding mechanical interference, Innodisk mSATA mini 3ME3 absolutely replaces the traditional hard disk and makes personal computers, in any field, smaller and more manageable.

Innodisk mSATA mini 3ME3 effectively reduces the booting time of the operation system, and the power consumption is less than a hard disk drive (HDD). It complies with ATA protocol; no additional drives are required, and it can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	mSATA mini 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300B
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	220 / 80
P/E Cycle	3,000
TBW (Max.)	153
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.5W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 26.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEMSM-08GD09BC1SC	DEMSM-08GD09BW1SC
16GB	DEMSM-16GD09BC1&C	DEMSM-16GD09BW1&C
32GB	DEMSM-32GD09BC1DC	DEMSM-32GD09BW1DC
64GB	DEMSM-64GD09BC1DC	DEMSM-64GD09BW1DC
128GB	DEMSM-A28D09BCADC	DEMSM-A28D09BWADC

&. S : 1 channel / D : 2 channels

For more information, please contact our support.
