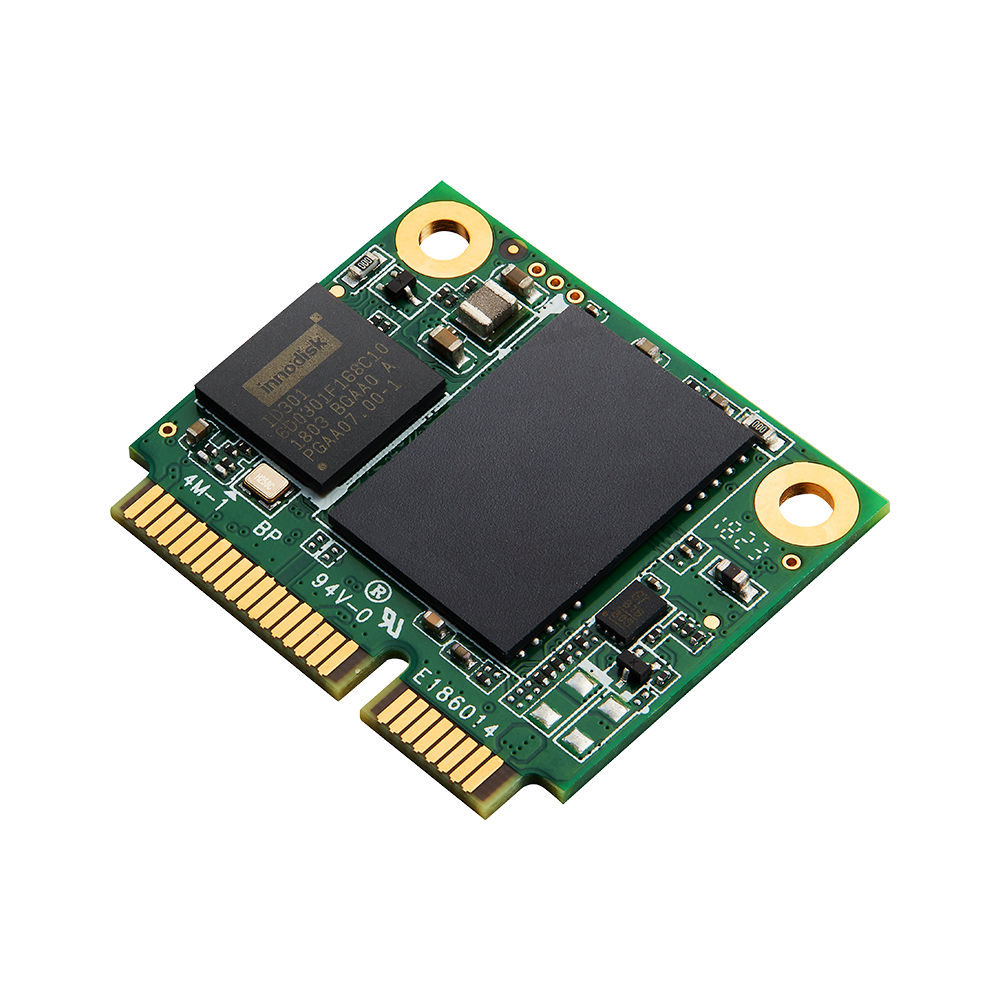

mSATA mini 3IE7

mSATA

Ultra iSLC Solution

Features

• Up to 100K P/E cycle, extending the lifespan by 33x
• Utilizes Ultra iSLC Technology
• Equipped with 112-layer 3D TLC NAND Flash
• Supports temperatures -40°C to 85°C
• 5 years warranty and longevity commitment

Download Datasheet

Model Name

mSATA mini 3IE7

Flash Type

iSLC (3D TLC)

Interface

SATA III 6.0 Gb/s

Form Factor

MO-300B

Capacity

20GB ~ 320GB

Sequential R / W (MB/sec, max.)

550 / 490

P/E Cycle

30,000 / 100,000

TBW (Max.)

20,000

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

1.7W

Max. Channels

4

External DRAM Buffer

N

Feature

AES, H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

29.85 x 26.8 x 3.85

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years
