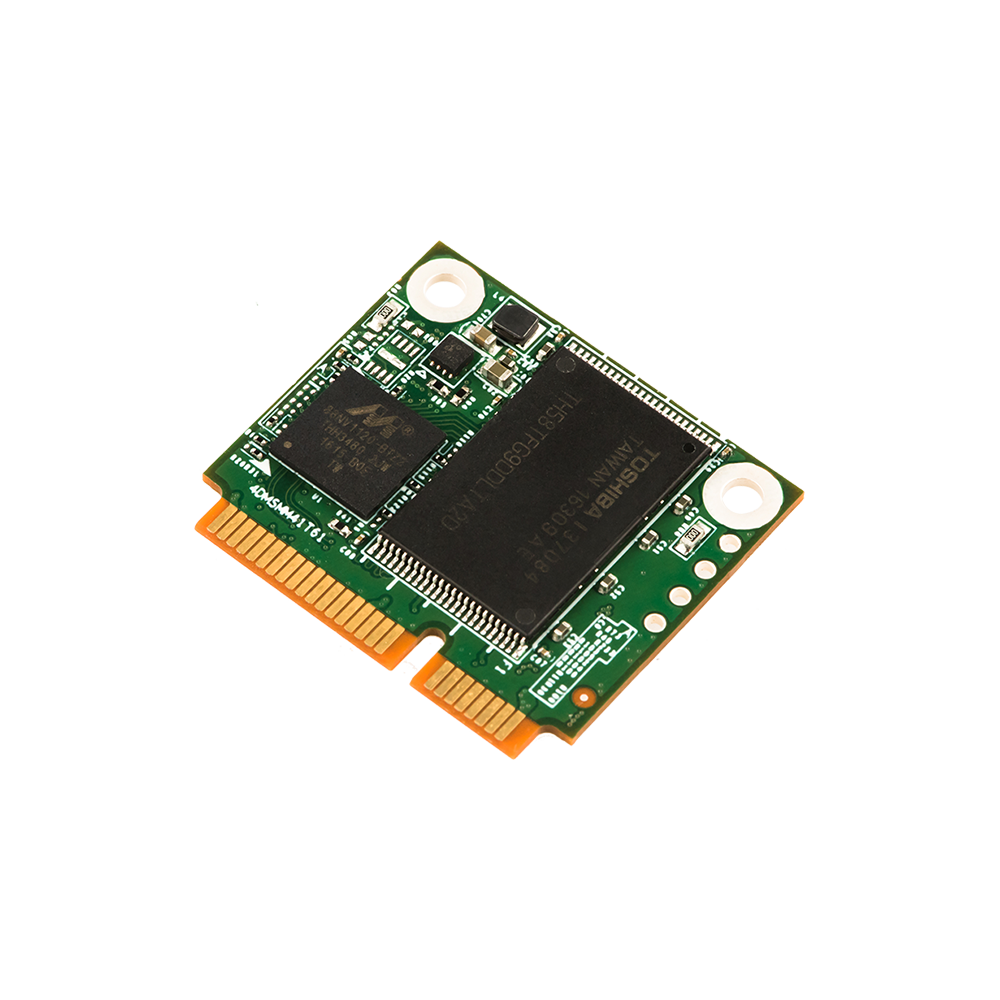

mSATA mini 3IE4

mSATA

8GB ~ 64GB

Features

SATA 6.0Gb/s interface
Followed JEDEC MO-300/MO-300B standard
LDPC technology secures SSD reliability
DRAM-less, high-level data integrity
L³ architecture extends lifespan
Excellent IOPS boosts system performance
Built-in thermal sensor
Supports S.M.A.R.T. / TRIM / NCQ

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA mini 3IE4 is SATA III 6.0 Gb/s Flash based disk, which adopts latest controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3IE4 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor ensure data integrity and reliability of mSATA mini 3SE4 for industrial applications.

SPECIFICATIONS

Model Name	mSATA mini 3IE4
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	530 / 340
P/E Cycle	20,000
TBW (Max.)	833
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.6W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	30.0 x 26.8 x 3.4
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHMSM-08GM41BC1&C	DHMSM-08GM41BW1&C
16GB	DHMSM-16GM41BC1DC	DHMSM-16GM41BW1DC
32GB	DHMSM-32GM41BC1DC	DHMSM-32GM41BW1DC
64GB	DHMSM-64GM41BC1DC	DHMSM-64GM41BW1DC

&. S : 1 channel / D : 2 channels
