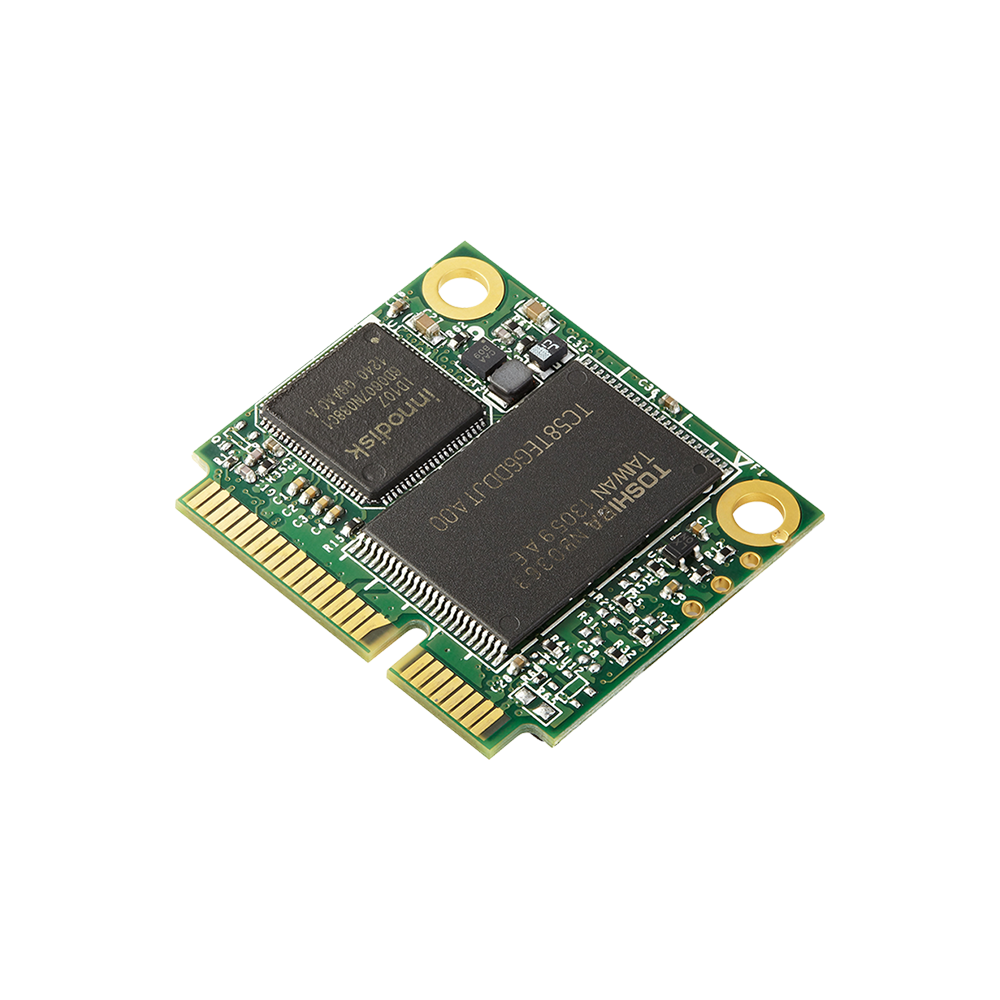

mSATA mini 3IE3

mSATA

8GB ~ 64GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
JEDEC standard MO-300 dimension
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA mini 3IE3 is designed with mSATA mini form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA mini 3IE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk mSATA mini 3IE3 effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	mSATA mini 3IE3
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300B
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	230 / 170
P/E Cycle	20,000
TBW (Max.)	173
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.6W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 26.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHMSM-08GD09BC1SC	DHMSM-08GD09BW1SC
16GB	DHMSM-16GD09BC1DC	DHMSM-16GD09BW1DC
32GB	DHMSM-32GD09BC1DC	DHMSM-32GD09BW1DC
64GB	DHMSM-64GD09BC1DC	DHMSM-64GD09BW1DC

For more information, please contact our support.
