mSATA 3TG6-P

mSATA

128GB ~ 2TB

Features

SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
AES 256-bit encryption
End-to-End Data Path Protection
iData Guard for abnormal power failure
DEVSLP supported

BORN FOR SUPERIOR PERFORMANCE

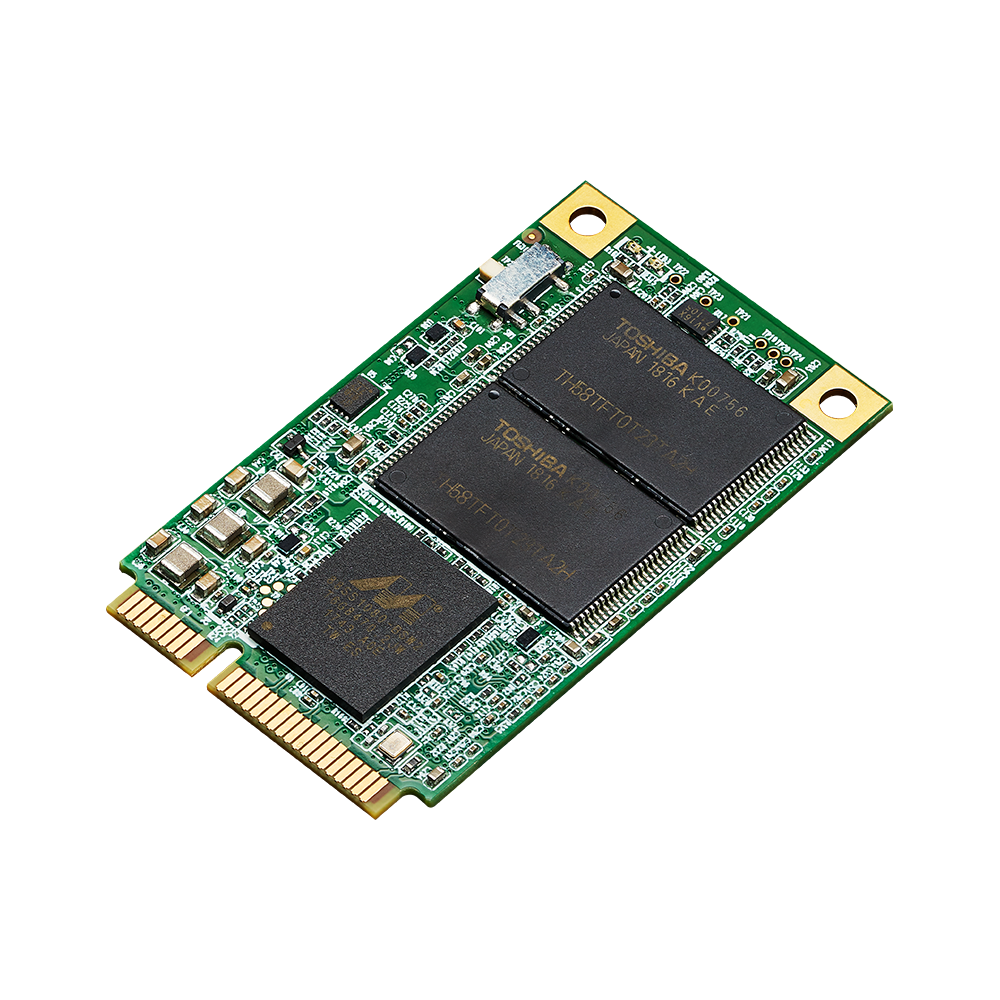

Innodisk mSATA 3TG6-P is SATA III 6.0Gb/s solid state disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

mSATA 3TG6-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	mSATA 3TG6-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	560 / 520
P/E Cycle	3,000
TBW (Max.)	4,615
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.8W (3.3V x 1.45mA)
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DGMSR-A28M71%C*QF	DGMSR-A28M71%W*QF
256GB	DGMSR-B56M71%C*QF	DGMSR-B56M71%W*QF
512GB	DGMSR-C12M71%C*QF	DGMSR-C12M71%W*QF
1TB	DGMSR-01TM71%C*QF	DGMSR-01TM71%W*QF
2TB	DGMSR-02TM71%CAQF	DGMSR-02TM71%WAQF

%. E : 64 layers 3D TLC / G : 96 layers 3D TLC / K : 112 layers 3D TLC
*. PCB version control
