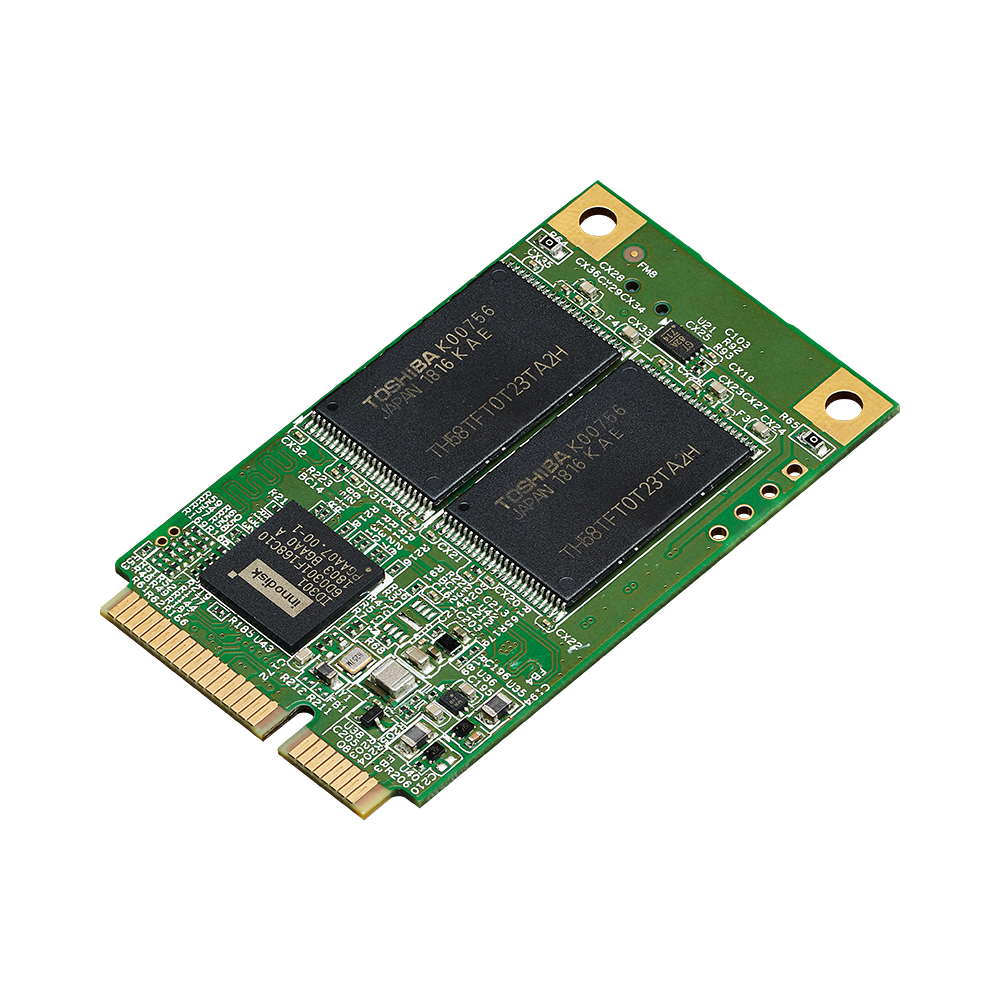

mSATA 3TE7

mSATA

32GB ~ 2TB

Features

mSATA SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3TE7 is a SATA III 6.0 Gb/s Flash-based disk, which adopts the latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes the 3TE7 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. Built-in thermal sensor and iData Guard ensure data integrity and reliability of mSATA 3TE7 for industrial applications.

SPECIFICATIONS

Model Name	mSATA 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	32GB ~ 2TB
Sequential R / W (MB/sec, max.)	550 / 490
P/E Cycle	3,000
TBW (Max.)	1,200
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.4W
Max. Channels	4
External DRAM Buffer	N
Feature	PLP (iCell), AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DEMSR-32GDK1%C*SF	DEMSR-32GDK1EW1SF
64GB	DEMSR-64GDK1%C*DF(P)	DEMSR-64GDK1%W*DF(P)
128GB	DEMSR-A28DK1%C*&F(P)	DEMSR-A28DK1%W*&F(P)
256GB	DEMSR-B56DK1%C*QF(P)	DEMSR-B56DK1%W*QF(P)
512GB	DEMSR-C12DK1%C*QF(P)	DEMSR-C12DK1%W*QF(P)
1TB	DEMSR-01TDK1%CAQF(P)	DEMSR-01TDK1%WAQF(P)
2TB	DEMSR-02TDK1%CAQF	DEMSR-02TDK1KWAQF

%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. PCB version control
&. S : 1 channel / D : 2 channels / Q : 4 channels
(P). PLP (iCell) (Optional)

For more information, please contact our support.
