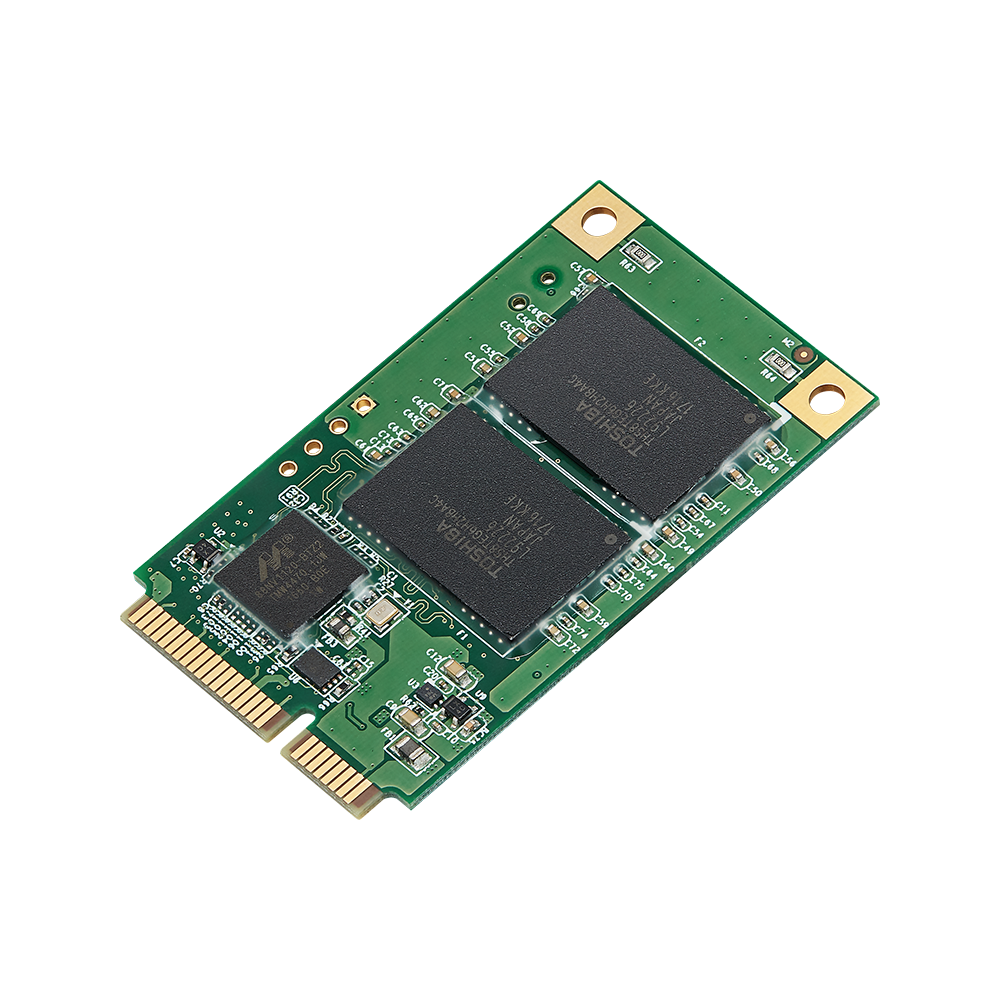

mSATA 3SE4

mSATA

8GB ~ 64GB

Features

SATA 6.0Gb/s interface
Followed JEDEC MO-300 / MO-300B standard
LDPC technology secures SSD reliability
DRAM-less, high-level data integrity
Excellent IOPS boosts system performance
Built-in thermal sensor
Supports S.M.A.R.T., TRIM, and NCQ
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3SE4 is a SATA III 6.0 Gb/s Flash-based disk, which adopts the latest controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes the 3SE4 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. A built-in thermal sensor ensures data integrity and reliability of mSATA 3SE4 for industrial applications.

SPECIFICATIONS

Model Name	mSATA 3SE4
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	525 / 345
P/E Cycle	60,000
TBW (Max.)	2,500
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.4W
Max. Channels	2
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEMSR-08GM41SCADB	DEMSR-08GM41SWADB
16GB	DEMSR-16GM41SCADB	DEMSR-16GM41SWADB
32GB	DEMSR-32GM41SCADB	DEMSR-32GM41SWADB
64GB	DEMSR-64GM41SCADB	DEMSR-64GM41SWADB

For more information, please contact our support.
