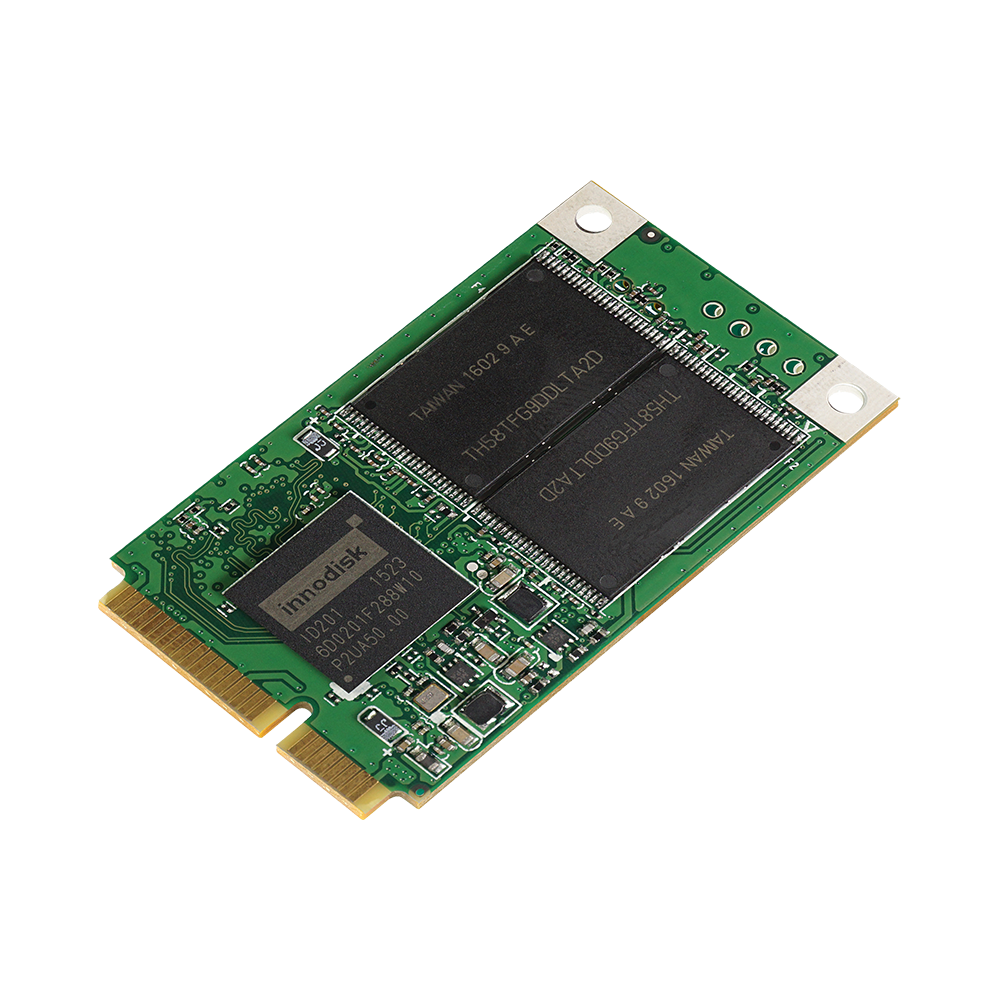

mSATA 3MV2-P

mSATA

8GB ~ 1TB

Features

SATA 6.0Gb/s interface
JEDEC MO-300 standard dimension
High IOPS by on-board DRAM design
Intelligent error recovery system
iSMART disk health monitoring
Zero mechanical interference
DEVSLP supported
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

InnoREC is Innodisk’s proprietary Flash feature set, which is designed specifically for surveillance applications. Through the intelligent integration of firmware and hardware, the speed and performance required by modern surveillance solutions are fully met. mSATA 3MV2-P products provide high-capacity Flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standards. It supports SATA III standard (6.0GHz) with high performance and supports several features, including RECLine, iData Guard, Quick Erase, Thermal sensor, passive cooling, and S.M.A.R.T..

SPECIFICATIONS

Model Name	mSATA 3MV2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	8GB ~ 1TB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	3,000
TBW (Max.)	1,172
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	4W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Series	Surveillance SSD
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DVMSR-08GD81BC1SC	DVMSR-08GD81BW1SC
16GB	DVMSR-16GD81BC1&C	DVMSR-16GD81BW1&C
32GB	DVMSR-32GD81BC1&C	DVMSR-32GD81BW1&C
64GB	DVMSR-64GD81BC1QC	DVMSR-64GD81BW1QC
128GB	DVMSR-A28D81BC1QC	DVMSR-A28D81BW1QC
256GB	DVMSR-B56D81BC1QC	DVMSR-B56D81BW1QC
512GB	DVMSR-C12D81BCAQC	DVMSR-C12D81BWAQC
1TB	DVMSR-01TD81BCAQC	DVMSR-01TD81BWAQC

&. S : 1 channel / D : 2 channels / Q : 4 channels
