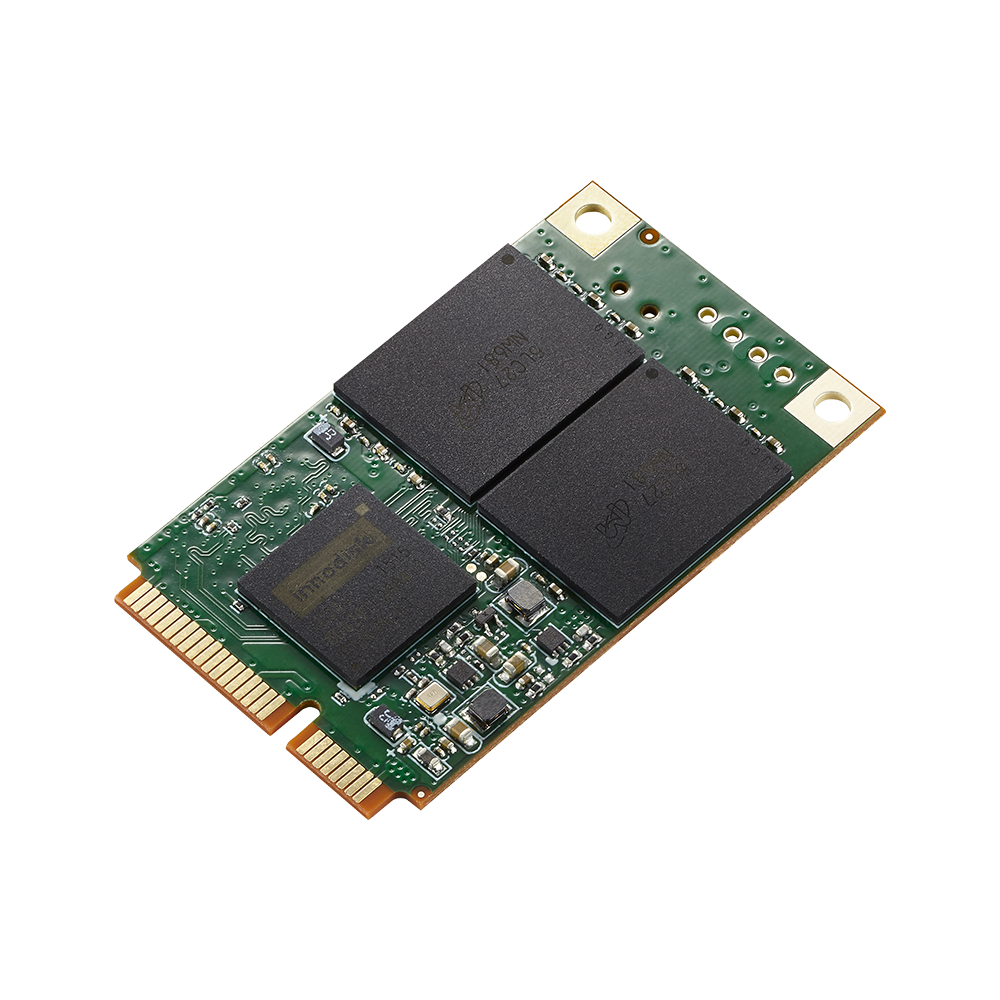

mSATA 3MG2-P

mSATA

8GB ~ 1TB

Features

SATA 6.0Gb/s interface
JEDEC MO-300 standard dimension
High IOPS by on-board DRAM design
Intelligent error recovery system
iSMART disk health monitoring
Zero mechanical interference
DEVSLP supported
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3MG2-P is a SATA III 6Gb/s Flash-based disk that delivers excellent performance, especially in random data transfer rate, and offers reliability, making it the ideal solution for a variety of applications, including embedded systems, industrial computing, and enterprise fields.

mSATA 3MG2-P not only performs unmatched performance but is also designed with Innodisk-owned technical know-how such as iData Guard to ensure the data integrity and highest levels of reliability. Featuring L² architecture, the life span of the SSD is maximized by an evolved wear leveling algorithm.

SPECIFICATIONS

Model Name	mSATA 3MV2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	8GB ~ 1TB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	3,000
TBW (Max.)	1,172
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	4W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Series	Surveillance SSD
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DGMSR-08GD81BC1SC	DGMSR-08GD81BW1SC
16GB	DGMSR-16GD81BC1&C	DGMSR-16GD81BC1&C
32GB	DGMSR-32GD81BC1&C	DGMSR-32GD81BW1&C
64GB	DGMSR-64GD81BC1QC	DGMSR-64GD81BW1QC
128GB	DGMSR-A28D81BC1QC	DGMSR-A28D81BW1QC
256GB	DGMSR-B56D81BC1QC	DGMSR-B56D81BW1QC
512GB	DGMSR-C12D81BCAQC	DGMSR-C12D81BWBQC
1TB	DGMSR-01TD81BCAQC	DGMSR-01TD81BWAQC

&. S : 1 channel / D : 2 channels / Q : 4 channels
