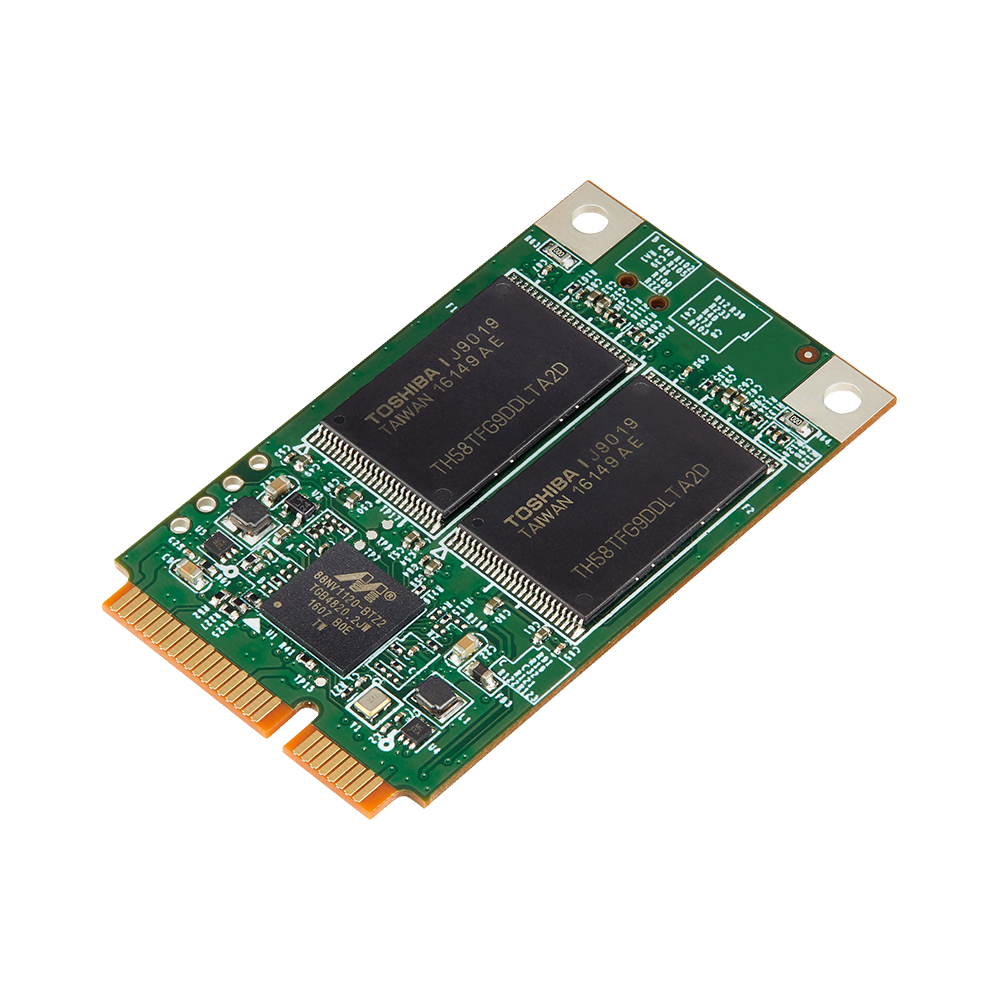

mSATA 3ME4

mSATA

8GB ~ 256GB

Features

• SATA 6.0Gb/s interface
• Followed JEDEC MO-300 / MO-300B standard
• LDPC technology secures SSD reliability
• DRAM-less, high-level data integrity
• Excellent IOPS boosts system performance
• Built-in thermal sensor
• Supports S.M.A.R.T., TRIM, and NCQ
• Supports wide temperature from -40°C to 85°C

Model Name

mSATA 3ME4

Flash Type

MLC

Interface

SATA III 6.0 Gb/s

Form Factor

MO-300

Capacity

8GB ~ 256GB

Sequential R / W (MB/sec, max.)

530 / 210

P/E Cycle

3,000

TBW (Max.)

416

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

0.6W

Max. Channels

2

External DRAM Buffer

N

Feature

H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

29.85 x 50.8 x 3.7

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

2 Years
