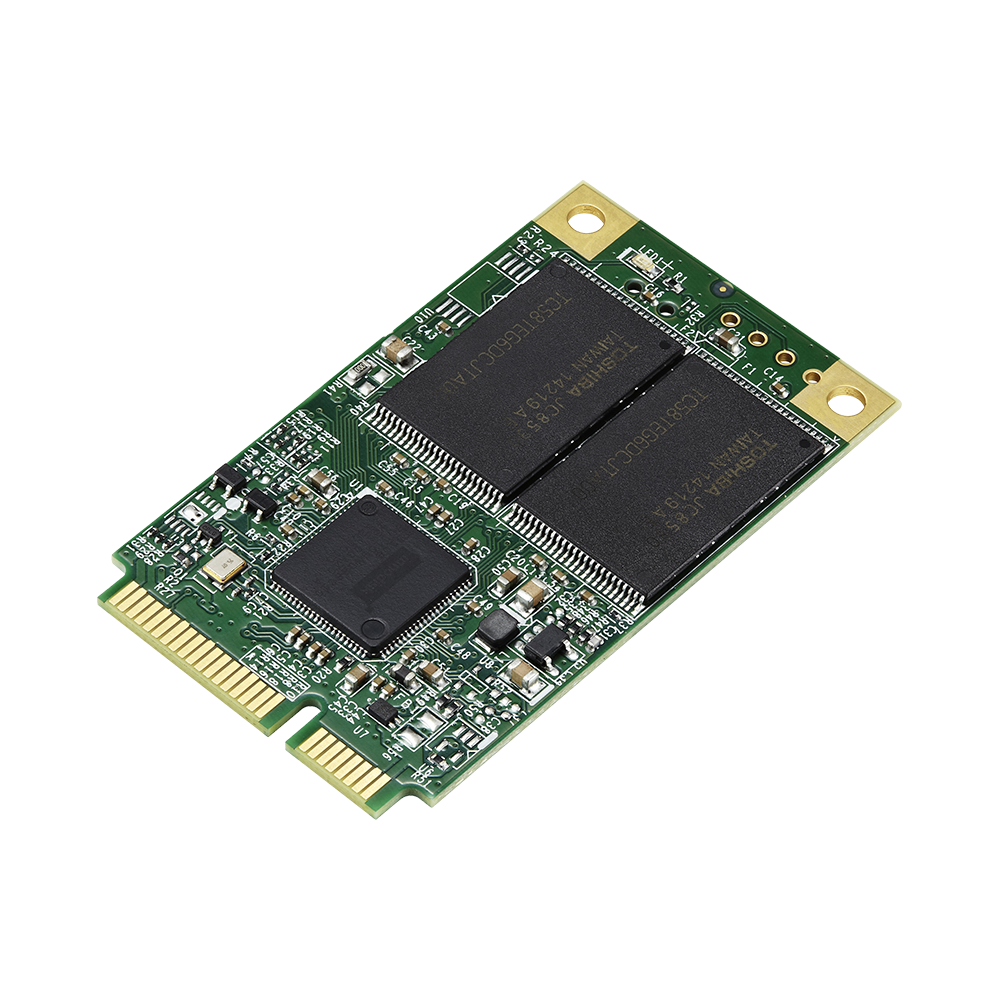

mSATA 3ME3

mSATA

8GB ~ 512GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
JEDEC standard MO-300 dimension
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3ME3 is designed with mSATA form factor by MO-300 / MO-300B, which is established by JEDEC, and supports the SATA III standard (6.0Gb/s) with excellent performance. Regarding mechanical interference, Innodisk mSATA 3ME3 absolutely replaces the traditional hard disk and makes personal computers, in any field, smaller and more manageable.

Innodisk mSATA 3ME3 effectively reduces the booting time of the operation system, and the power consumption is less than that of a hard disk drive (HDD). It complies with ATA protocol, no additional drives are required, and it can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	mSATA 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	8GB ~ 512GB
Sequential R / W (MB/sec, max.)	400 / 200
P/E Cycle	3,000
TBW (Max.)	153
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.4W
Max. Channels	4
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.8 x 50.8 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEMSR-08GD09BC2SC	DEMSR-08GD09BW2SC
16GB	DEMSR-16GD09BC2&C	DEMSR-16GD09BW2&C
32GB	DEMSR-32GD09BC*&C	DEMSR-32GD09BW*&C
64GB	DEMSR-64GD09BC*&C	DEMSR-64GD09BW*&C
128GB	DEMSR-A28D09BC*&C	DEMSR-A28D09BW*&C
256GB	DEMSR-B56D08BCBQC	DEMSR-B56D08BWBQC
512GB	DEMSR-C12D08BCBQC	DEMSR-C12D08BWBQC

*. PCB version control
&. S : 1 channel / D : 2 channels / Q : 4 channels
