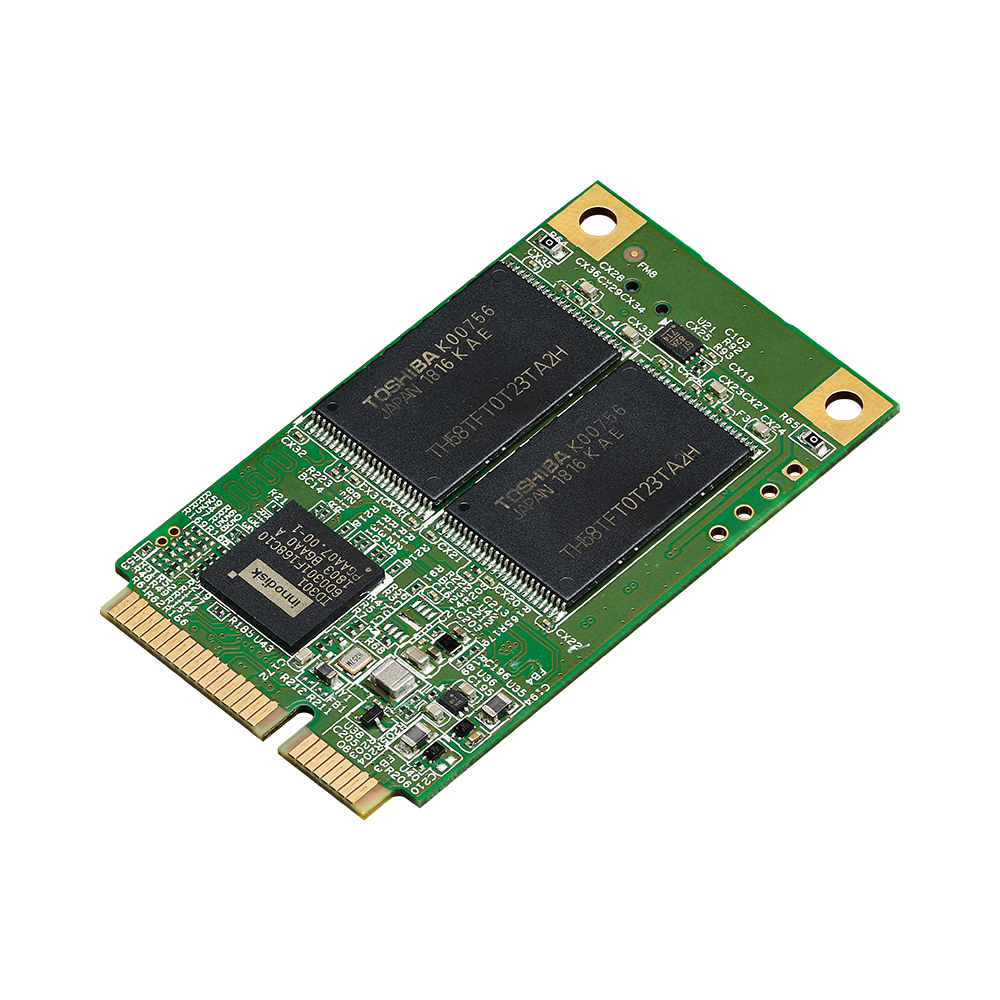

mSATA 3IE7

mSATA

Ultra iSLC Solution

Features

Up to 100K P/E cycle, extending the lifespan by 33x
Utilizes Ultra iSLC Technology
Equipped with 112-layer 3D TLC NAND Flash
Supports temperatures -40°C to 85°C
5 years warranty and longevity commitment

BORN FOR SUPERIOR PERFORMANCE

The Innodisk mSATA 3IE7 is a SATA III 6.0 Gb/s flash-based drive tailored for industrial applications. Powered by exclusive Ultra iSLC Technology, it boosts storage lifespan to 100K P/E cycles. The drive supports essential features such as Thermal Sensor, TRIM, NCQ, and S.M.A.R.T., and comes with Innodisk’s exclusive industrial-grade firmware, offering flexible customization options. This makes it an ideal choice for a wide range of industrial environments.

SPECIFICATIONS

Model Name	mSATA 3IE7
Flash Type	iSLC (3D TLC)
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	20GB ~ 640GB
Sequential R / W (MB/sec, max.)	560 / 500
P/E Cycle	30,000 / 100,000
TBW (Max.)	40,000
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	1.6W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
20GB	DHMSR-20GDK1EC1DF	DHMSR-20GDK1EW1DF
40GB	DHMSR-40GDK1%C*&F	DHMSR-40GDK1%W*&F
80GB	DHMSR-80GDK1%C*QF	DHMSR-80GDK1%W*QF
160GB	DHMSR-A60DK1%C*QF	DHMSR-A60DK1%W*QF
320GB	DHMSR-D2GDK1%CAQF	DHMSR-D2GDK1%WAQF
640GB	DHMSR-F4GDK1%CAQF	DHMSR-F4GDK1%WAQF

%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. PCB version control
&. D : 2 channels / Q : 4 channels

For more information, please contact our support.
