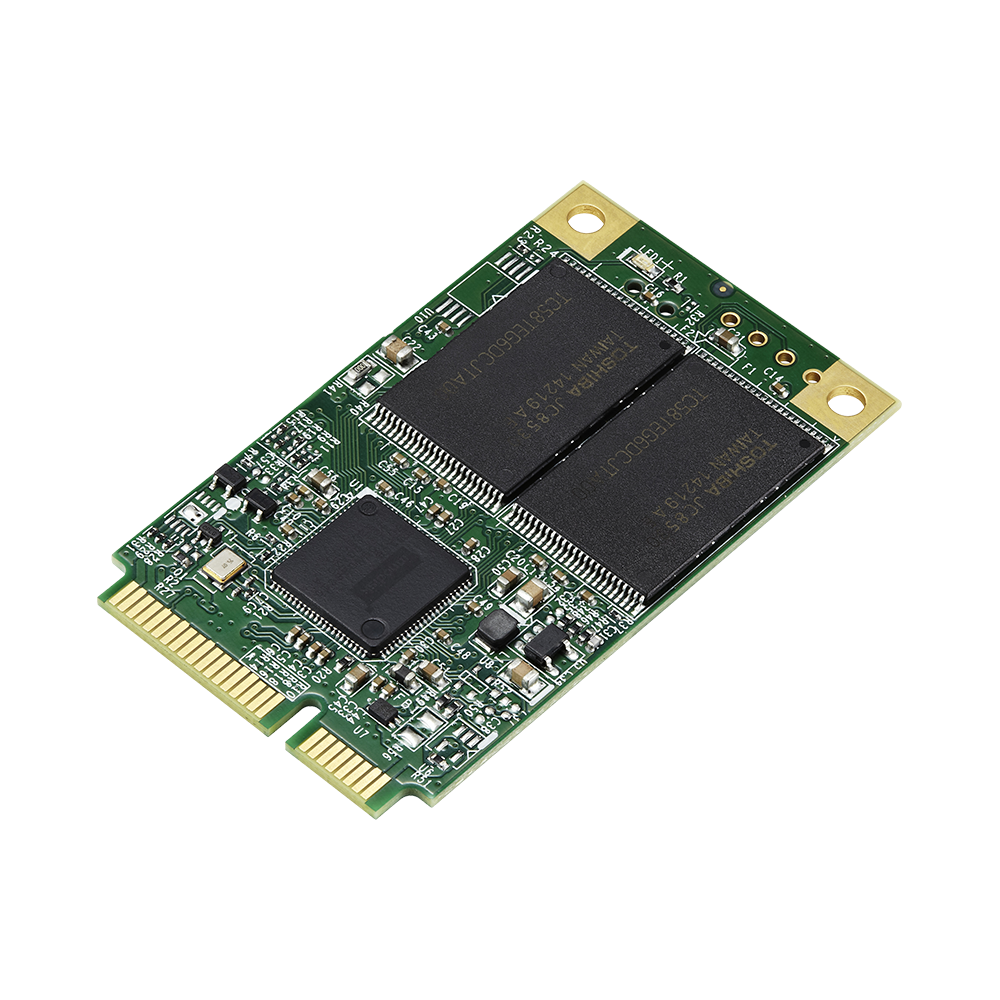

mSATA 3IE3

mSATA

8GB ~ 256GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
JEDEC standard MO-300 dimension
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3IE3 is designed with mSATA form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0 Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA 3IE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk mSATA 3IE3 effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	mSATA 3IE3
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	440 / 230
P/E Cycle	20,000
TBW (Max.)	694
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.5W
Max. Channels	4
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.8 x 50.8 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHMSR-08GD09BC1&C	DHMSR-08GD09BW1&C
16GB	DHMSR-16GD08BC1&C	DHMSR-16GD08BW1&C
32GB	DHMSR-32GD08BC1&C	DHMSR-32GD08BW1&C
64GB	DHMSR-64GD09BC*&C	DHMSR-64GD09BW*&C
128GB	DHMSR-A28D08BCAQC	DHMSR-A28D08BWAQC
256GB	DHMSR-B56D08BCAQC	DHMSR-B56D08BWAQC

*. PCB version control
&. S : 1 channel / D : 2 channels

For more information, please contact our support.
