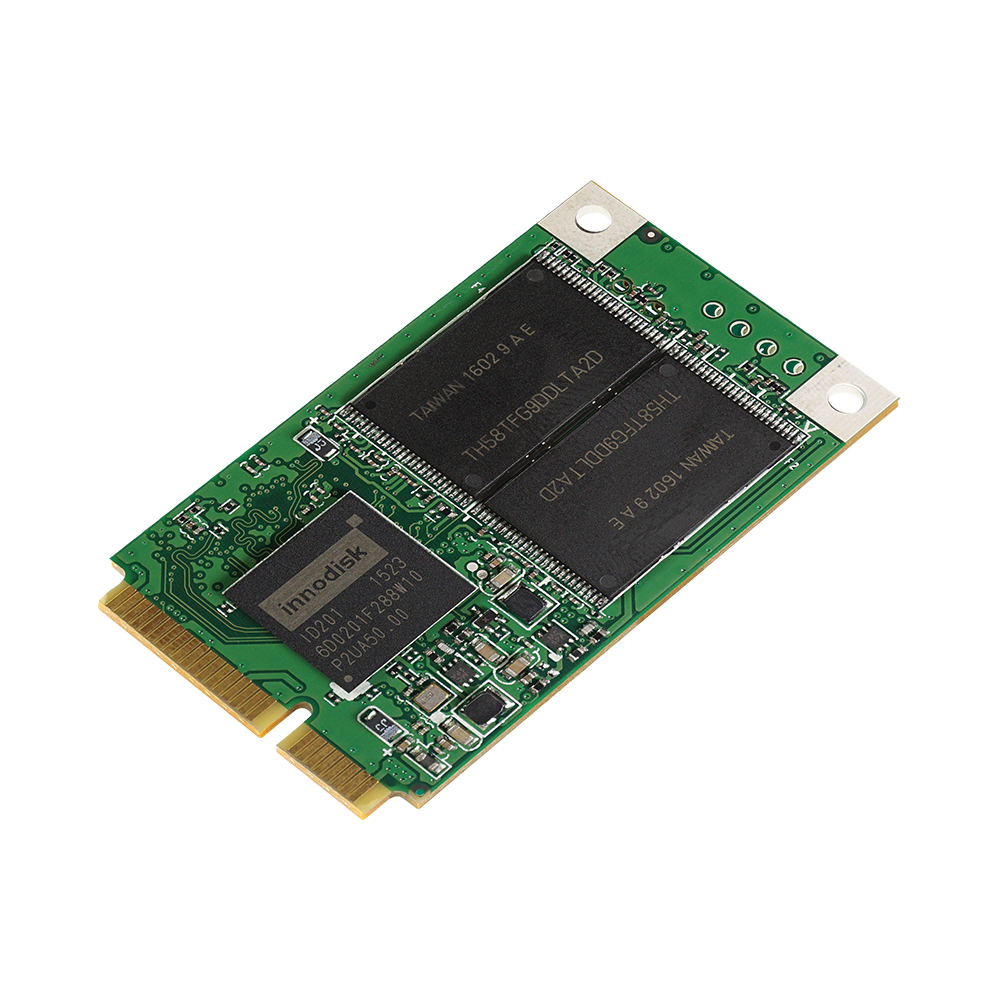

mSATA 3IE2-P

mSATA

8GB ~ 256GB

Features

SATA 6.0Gb/s interface
JEDEC MO-300 standard dimension
High IOPS by on-board DRAM design
Intelligent error recovery system
iSMART disk health monitoring
Zero mechanical interference
DEVSLP supported
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3IE2-P is a SATA III 6.0Gb/s Flash-based disk that delivers excellent performance, especially in random data transfer rate and offers reliability, making it the ideal solution for a variety of applications, including embedded systems, industrial computing, and enterprise fields. mSATA 3IE2-P not only performs unmatched performance but is also designed with Innodisk-owned technical know-how, such as iData Guard, to ensure data integrity and the highest levels of reliability. Featuring L² architecture, the life span of the SSD is maximized by an evolved wear leveling algorithm.

SPECIFICATIONS

Model Name	mSATA 3IE2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	MO-300
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	560 / 470
P/E Cycle	20,000
TBW (Max.)	5,000
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.8W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.85 x 50.8 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHMSR-08GD81BC1SC	DHMSR-08GD81BW1SC
16GB	DHMSR-16GD81BC1QC	DHMSR-16GD81BW1QC
32GB	DHMSR-32GD81BC1QC	DHMSR-32GD81BC1QC
64GB	DHMSR-64GD81BC1QC	DHMSR-64GD81BW1QC
128GB	DHMSR-A28D81BC1QC	DHMSR-A28D81BW1QC
256GB	DHMSR-B56D81BCBQC	DHMSR-B56D81BWBQC

For more information, please contact our support.
