Mediacento IPX

EASY INTEGRATION
Transmitters and receivers can be installed directly into your
existing LAN infrastructure. There’s no need to configure any
IP settings or run expensive dedicated links from a back room.
Better yet, the PoE-powered units eliminate the need for
external power supplies.

SECURE CONNECTORS
Eliminate failure at the connection point. MediaCento IPX
products are compatible with locking HDMI cables. They are
available from Black Box for individual order and are included
in your purchase of a MediaCento IPX kit.

PLUG-AND-PLAY SETUP
Use push buttons to set the transmitters and receivers to the
same multicast or unicast channel and all IP multicasting
settings are automatically configured. Just connect your
source, display(s) and a network switch, and you’re ready to go.

LOSSLESS COMPRESSION AND ULTRA-LOW
LATENCY FOR HD EXTENSION
The units transmit broadcast-quality video and audio and
support resolutions up to 4K @ 30 Hz, no matter the distance
or number of screens. Our new units support resolutions up to
4096 x 2160 @ 30 Hz.

SIGNALS THAT GO FOR KILOMETRES
The units support IGMP and packetise signals so all your HD
source content can be delivered anywhere you want over
Ethernet wiring. The extender transmits video up to 100
meters per link, but goes even longer when additional network
switches are added to the mix. Use fibre with media converters
to go several kilometers, if needed. New units also have a
built-in SFP slot that supports fibre, which extends video
signals farther and faster than copper cable.

OPTIMAL PC-TO-SCREEN PERFORMANCE
MediaCento IPX features extended display identification data
(EDID) copy function, which ensures that proper video settings
are maintained.

FLEXIBLE MATRIX SWITCHING AND
VIDEO WALL CONTROL
With the MediaCento IPX Controller added to the system,
you can:
• Create video walls up to 8 x 8 (64 screens)
• Control and switch from any source to any display remotely
using the intuitive web interface. The controller automatically
detects any MediaCento IPX units in the network and pulls
them into the web interface for easy setup and control
• Manage the MediaCento devices from a secondary network
using the controller’s two Ethernet ports
• Remotely manage the units from a mobile interface such as
a laptop, mobile phone or tablet

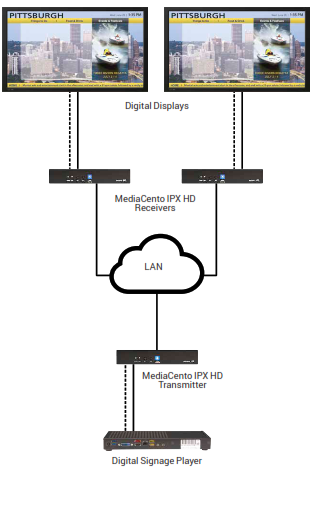

MULTICAST MODE APPLICATION
Transmit video from one source to multiple screens over an
Ethernet network. This application can also support a video wall.

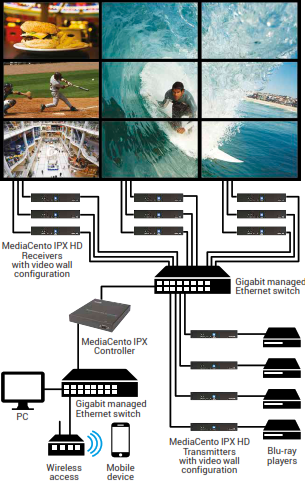

MULTICAST MODE APPLICATION WITH
VIDEO WALL AND MATRIX SWITCHING
Transmit video from multiple sources to multiple screens
over an Ethernet network. Control and switch the displays
from the PC or mobile device.

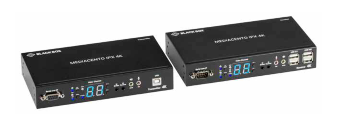

MEDIACENTO IPX 4K TRANSMITTER AND RECEIVER

Get better audio, video, control and compatibility with this affordable plug-and-play solution. Use it to share any source to any screen over IP

THE IDEAL SOLUTION FOR:
• Touchscreen applications that involve the
   iCOMPEL Digital Signage system
• Basic KVM applications for remote management
• Streaming and sharing video in classrooms,
   corporate offices and command and control rooms
• Also extends serial and IR signals for remote control of
   displays or source devices

DESCRIPTION                           PART #

End points Transmitter          VX-HDMI-4KIP-TX

End points Receiver               VX-HDMI-4KIP-RX

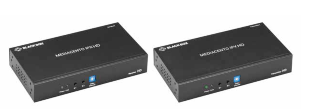

MEDIACENTO IPX HD TRANSMITTER AND RECEIVER

IP-streaming solution transmits HDMI video and audio to a nearly unlimited number of remote displays — go as far as your networkreaches. You need one transmitter for each source, and one receiver for each screen.

THE IDEAL SOLUTION FOR:
• Digital signage in different buildings or stores
• Create basic video walls
• Distributes high-quality video across a standard
   Ethernet network for optimal use in medical imaging,
   command and control rooms, corporate offices and
   classroom

Donwload The Manual Book MEDIACENTO IPX HD

MEDIACENTO IPX CONTROLLER

Turn your IP-based MediaCento IPX transmitters and receivers into an IP-based matrix switch and video wall controller. The controller brings cost-effective, flexible matrix switching and video wall control to a new level.

THE IDEAL SOLUTION FOR:
• Video wall control up to 8 x 8 (64 screens)
• Switching from any source to any display
• Create groups to simultaneously switch multiple
   receivers with a single click
• Use preset layouts to instantly set all receivers to a
   preconfigured setup

  DESCRIPTION                       PART #

  Controller                              VSW-MC-CTRLX

Recommended products

Create the optimal video distribution network that powers itself and minimises points of failure. Black Box offers all the products you need to complete your fast, cost-effective MediaCento installation.

GIGABIT POE+ MANAGED ETHERNET SWITCHES

DESCRIPTION                       PART #

 10-Port                                  LPB2910A

Locking HDMI Cables

DESCRIPTION                                                    PART #

Locking Male, both sides                                VCL-HDMIL-00XM

Locking Male to Non-locking HDMI Male    VCL-HDMIS-00XM

Locking HDMI Male to DVI Male                    VCL-HDMIS-00XM

DESCRIPTION                           PART #

End points Transmitter          VX-HDMI-HDIP-TX

End points Receiver                VX-HDMI-HDIP-RX
