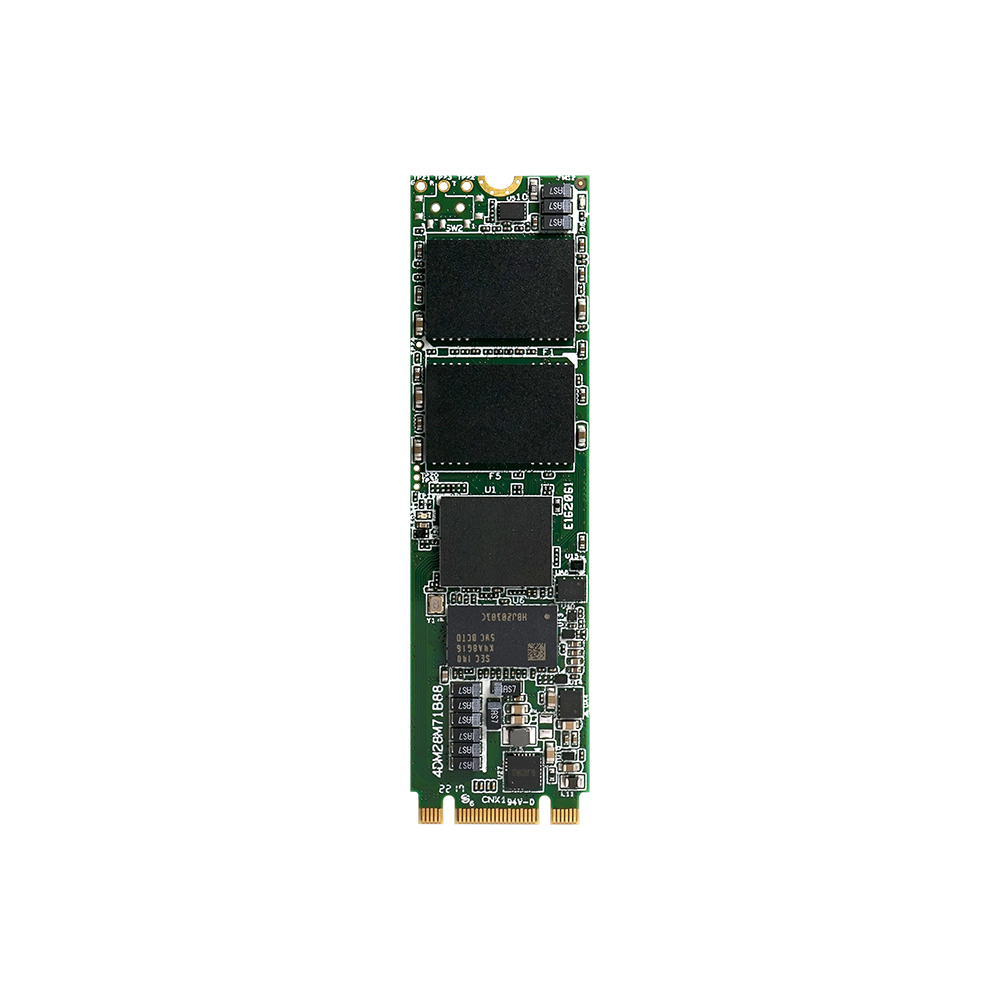

M.2 (S80) 3TS6-P

M.2

Advanced Storage For Data Center

Features

High IOPS
iSMART disk health monitoring
AES-256 encryption
End-to-End Data Path Protection
iData Guard for abnormal power failure
iCell technology for data protection
iPower Guard for protecting unstable start upand shut down
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3TS6-P is SATA III 6Gb/s solid state disk, which delivers excellent performance, especially in random data transfer rate, and offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

M.2 (S80) 3TS6-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	M.2 (S80) 3TS6-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	200GB ~ 1.6TB
Sequential R / W (MB/sec, max.)	510 / 360
P/E Cycle	3,000
TBW (Max.)	5,082
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	3.7W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, H/W Write Protect, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.8 (Max.)
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
200GB	DSM28-200M71%CBDFP	DSM28-200M71KWBQFP
400GB	DSM28-400M71%CBQFP	DSM28-400M71KWBQFP
800GB	DSM28-800M71%CBQFP	DSM28-800M71KWBQFP
1.6TB	DSM28-1T6M71%CBQFP	DSM28-1T6M71KWBQFP

%. K : 3K P/E cycle | N : 7K P/E cycle

For more information, please contact our support.
