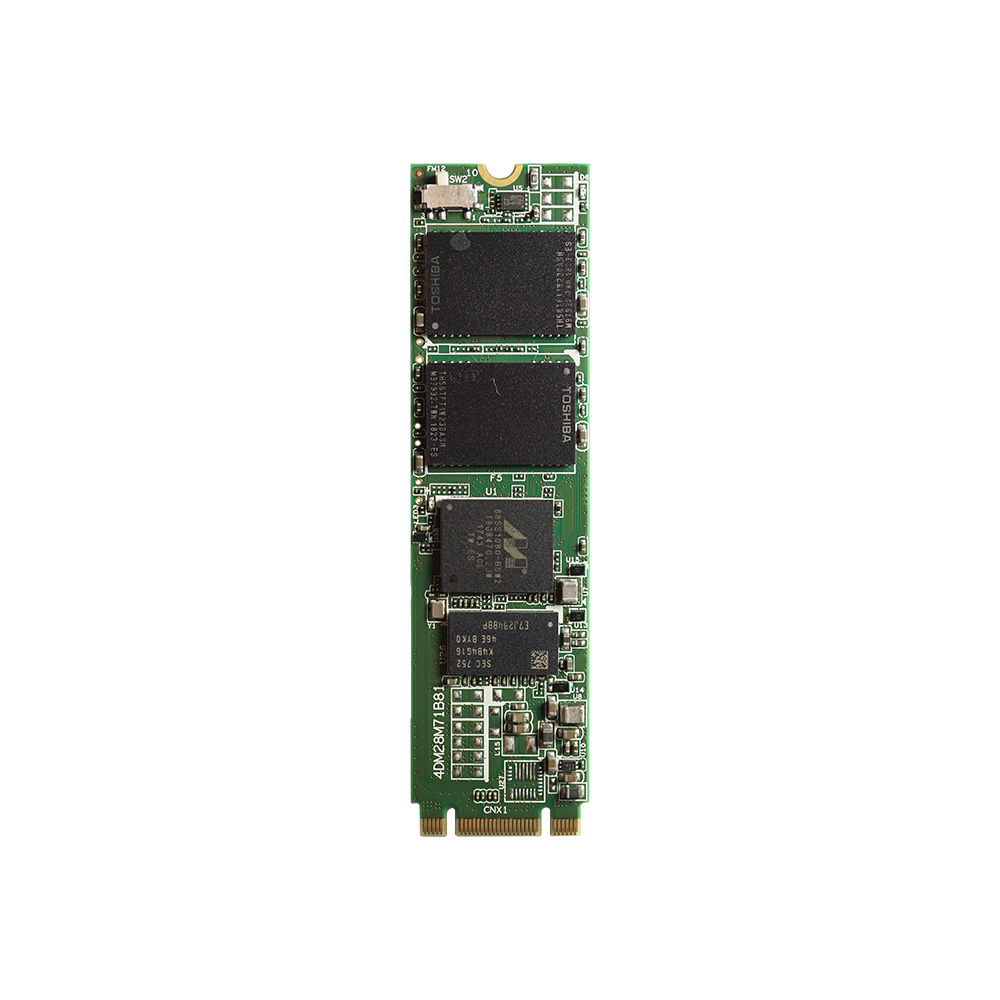

M.2 (S80) 3TG6-P

www.alvasta-tech.com / Industrial / Innodisk / Flash Storage / SATA-M.2 / M.2 (S80) 3TG6-P /

M.2 (S80) 3TG6-P

M.2

128GB ~ 2TB

Features

High IOPS
AES-256 encryption
Excellent random performance
End-to-End Data Path Protection
iData Guard for abnormal power failure
PLP (iCell) technology for data protection (optional)
Compatible with M.2 2280-D2-B-M standard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3TG6-P is SATA III 6Gb/s solid state disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

M.2 (S80) 3TG6-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

Innodisk M.2 (S80) 3TG6-P is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	M.2 (S80) 3TG6-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	560 / 520
P/E Cycle	3,000
TBW (Max.)	4,615
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3.1W (3.3V x 939mA)
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DGM28-A28M71*C%#F(S)	DGM28-A28M71*W%#F(S)
256GB	DGM28-B56M71*C%QF(S)	DGM28-B56M71*W%QF(S)
512GB	DGM28-C12M71*C%QF(S)	DGM28-C12M71*W%QF(S)
1TB	DGM28-01TM71*C%QF(S)	DGM28-01TM71*W%QF(S)
2TB	DGM28-02TM71*C%QF	DGM28-02TM71*W%QF

*. E : 64 layers 3D TLC / G : 96 layers 3D TLC / K : 112 layers 3D TLC
%. 1 / A / B : PCB version control
#. D : 2 channels / Q : 4 channels
S. : Single side

For more information, please contact our support.
