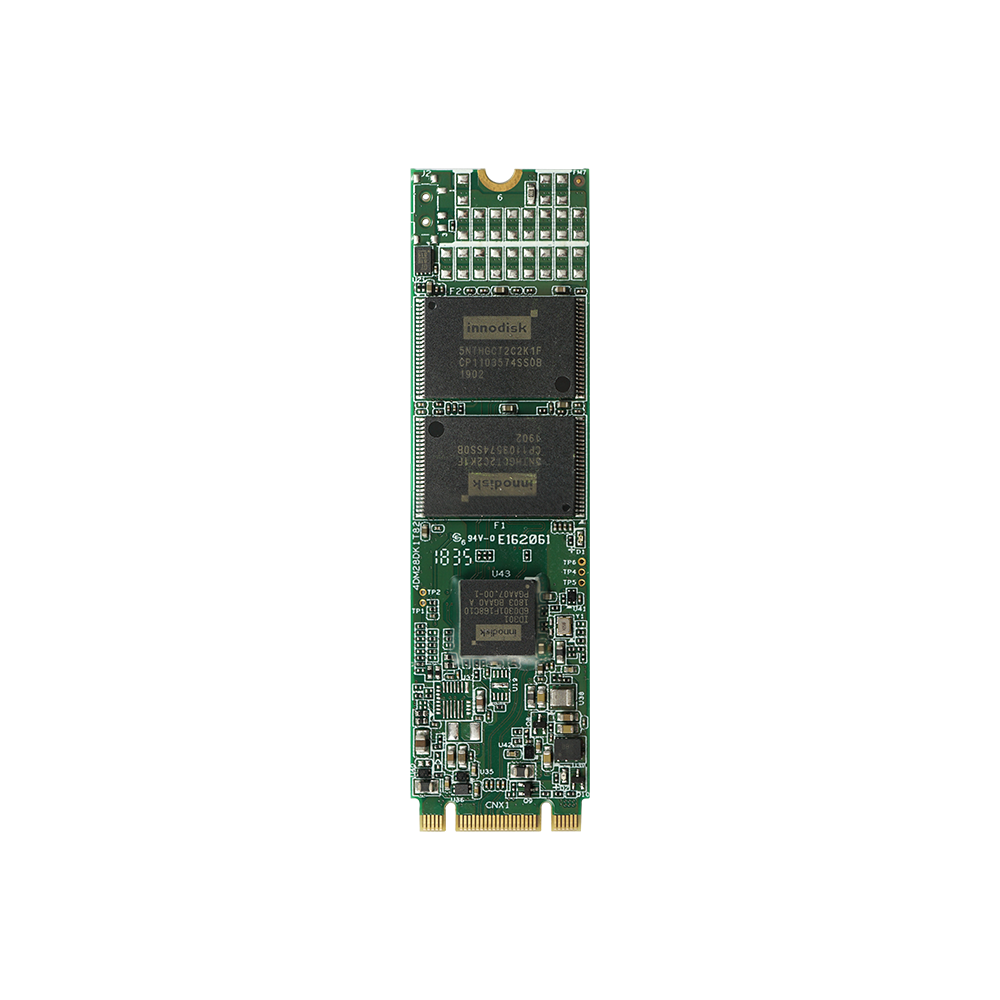

M.2 (S80) 3TE7

www.alvasta-tech.com / Industrial / Innodisk / Flash Storage / SATA-M.2 / M.2 (S80) 3TE7 /

M.2 (S80) 3TE7

M.2

32GB ~ 2TB

Features

SATA III solution for industrial grade SSD
Exclusive L³ architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM / NCQ / S.M.A.R.T.
Built in iData Guard
Designed with hardware LDPC ECC engine
Supports wide temperature from -40°C to 85°C

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3TE7 is SATA III 6.0 Gb/s Flash-based disk in industrial-grade field, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TE7 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of 3TE7 for industrial applications.

Innodisk M.2 (S80) 3TE7 is designed for industrial-grade SSD hard drive, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	M.2 (S80) 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	32GB ~ 2TB
Sequential R / W (MB/sec, max.)	560 / 520
P/E Cycle	3,000
TBW (Max.)	2,400
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.3W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 1.35 (Max.)
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DEM28-32GDK1EC1SF	DEM28-32GDK1EW1SF
64GB	DEM28-64GDK1%C*DF	DEM28-64GDK1%W*DF
128GB	DEM28-A28DK1%C*QF	DEM28-A28DK1%W*QF
256GB	DEM28-B56DK1%C*QF	DEM28-B56DK1%W*QF
512GB	DEM28-C12DK1%C*QF	DEM28-C12DK1%W*QF
1TB	DEM28-01TDK1%CAQF	DEM28-01TDK1%WAQF
2TB	DEM28-02TDK1%CAQF	DEM28-02TDK1KWAQF

%.E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. PCB version control

For more information, please contact our support.
