M.2 (S80) 3SE4

M.2

8GB ~ 64GB

Features

SATA III solution for industrial field
Exclusive L³ architecture
Designed with hardware LDPC ECC engine
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM / NCQ / S.M.A.R.T.
Supports wide temperature from -40°C to 85°C e

BORN FOR SUPERIOR PERFORMANCE

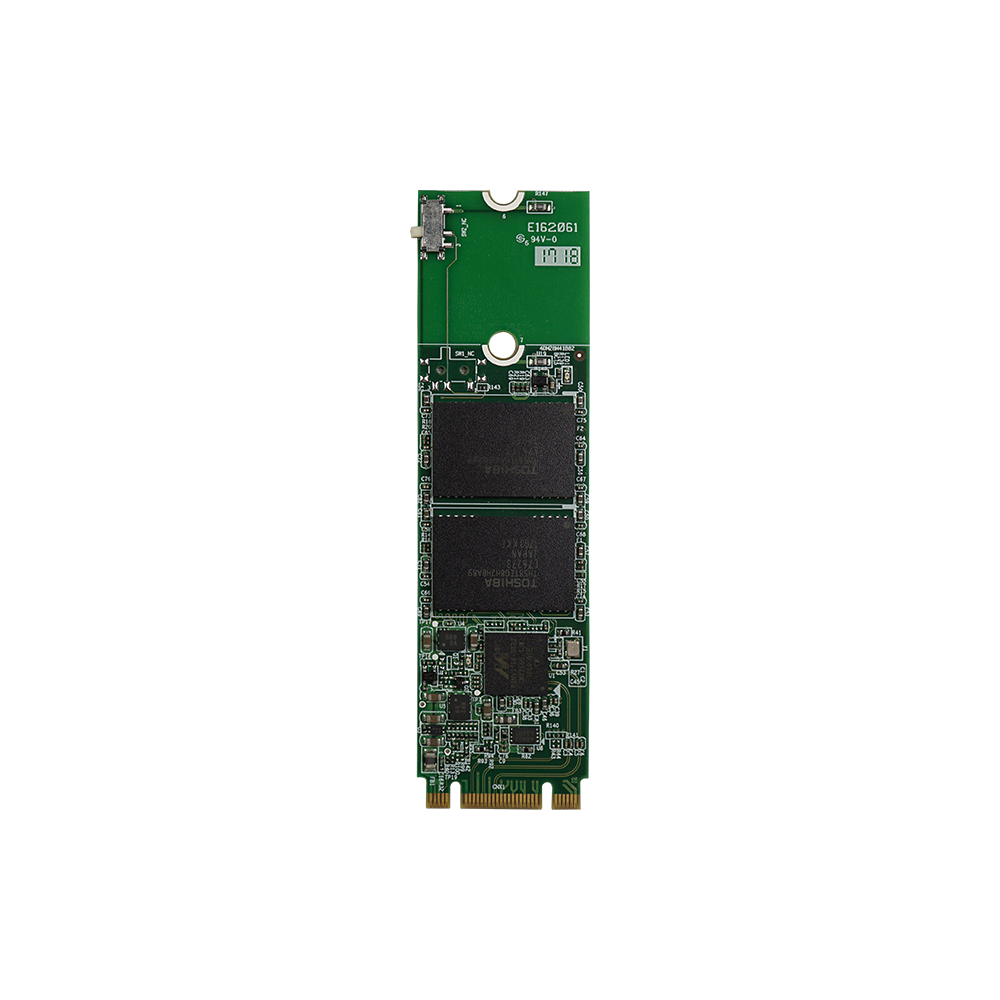

Innodisk M.2 (S80) 3SE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk M.2 (S80) 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T.. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	M.2 (S80) 3SE4
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	520 / 360
P/E Cycle	60,000
TBW (Max.)	2,500
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.6W
Max. Channels	2
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 2.2
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEM28-08GM41SCADB	DEM28-08GM41SWADB
16GB	DEM28-16GM41SCADB	DEM28-16GM41SWADB
32GB	DEM28-32GM41SCADB	DEM28-32GM41SWADB
64GB	DEM28-64GM41SCADB	DEM28-64GM41SWADB
