M.2 (S80) 3MV2-P

M.2

32GB ~ 1TB

Features

InnoREC solution for surveillance application
Exclusive RECLine for video recording
Ensure steady performance with any frame-loss
Intelligent error recovery system
Zero mechanical interference
Anti-vibration mechanical design
Supports S.M.A.R.T., TRIM, NCQ and iData Guard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

InnoREC is Innodisk’s proprietary Flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met.

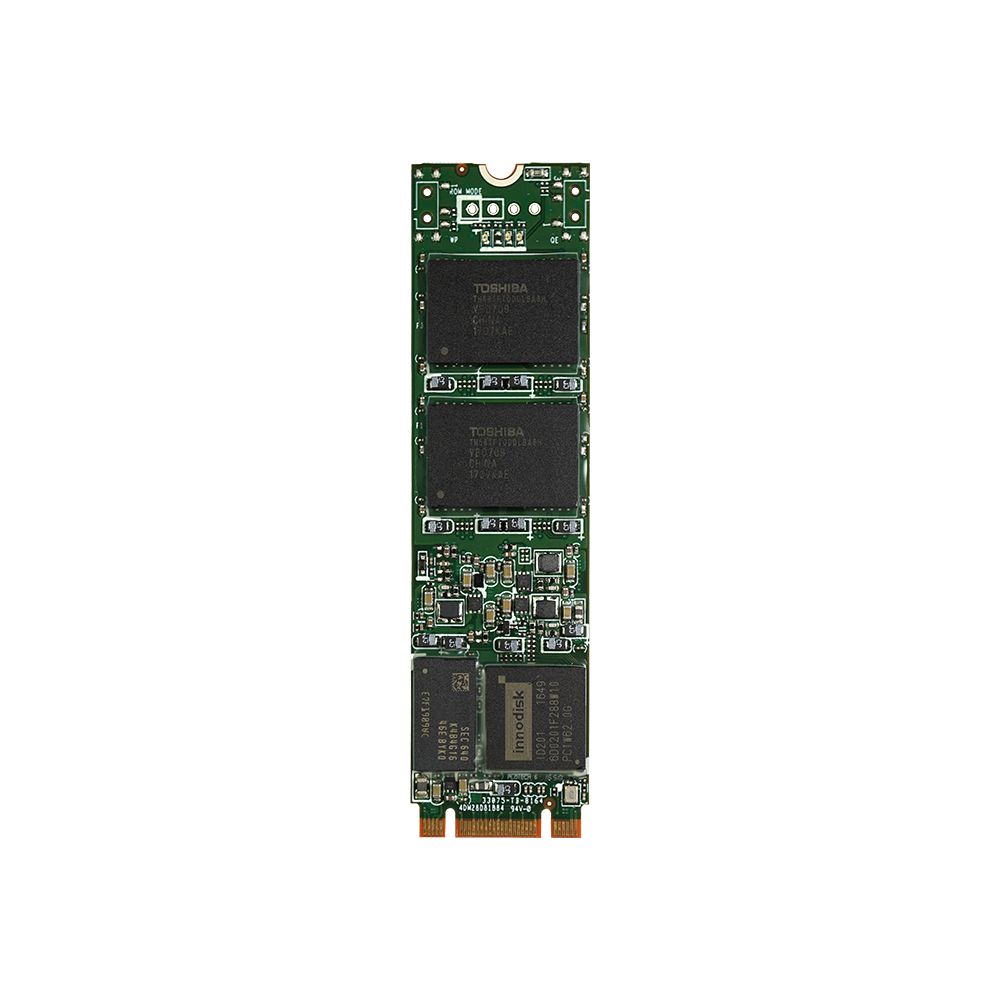

M.2 (S80) 3MV2-P products provide high capacity Flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. It supports SATA III standard (6.0GHz) with high performance and supports several features, including RECLine, iData Guard, PLP (iCell), quick erase, thermal sensor, and S.M.A.R.T.

SPECIFICATIONS

Model Name	M.2 (S80) 3MV2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	32GB ~ 1TB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	3,000
TBW (Max.)	1,172
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	4.6W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Series	Surveillance SSD
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DVM28-32GD81BCADC	DVM28-32GD81BWADC
64GB	DVM28-64GD81BCAQC	DVM28-64GD81BWAQC
128GB	DVM28-A28D81BCAQC	DVM28-A28D81BWAQC
256GB	DVM28-B56D81BCAQC	DVM28-B56D81BWAQC
512GB	DVM28-C12D81BCAQC	DVM28-C12D81BWAQC
1TB	DVM28-01TD81BCAQC	DVM28-01TD81BWAQC

For more information, please contact our support.
