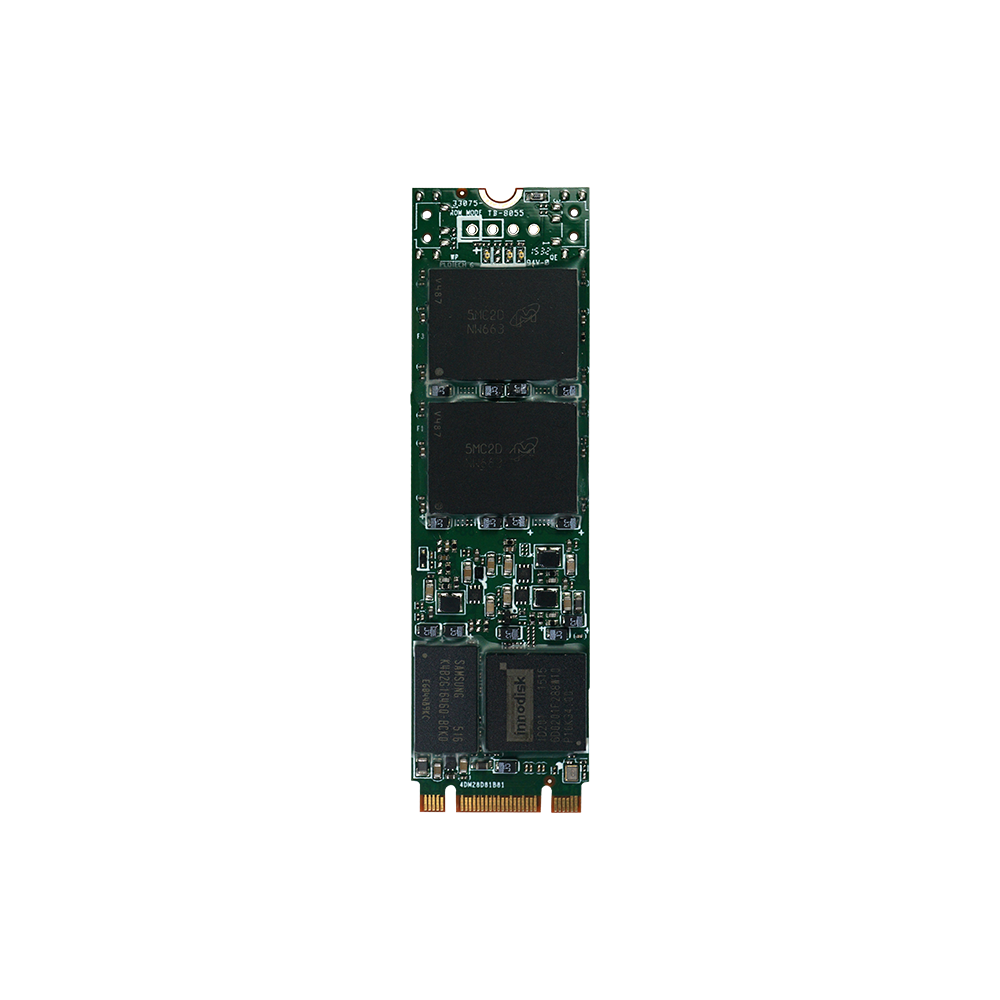

M.2 (S80) 3MG2-P

M.2

32GB ~ 1TB

Features

SATA III solution for industrial field
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3MG2-P is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S80) 3MG2-P absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S80) 3MG2-P effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S80) 3MG2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	32GB ~ 1TB
Sequential R / W (MB/sec, max.)	530 / 450
P/E Cycle	3,000
TBW (Max.)	1,172
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	4.6W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DGM28-32GD81BCBDC	DGM28-32GD81BWBDC
64GB	DGM28-64GD81BCBQC(P)	DGM28-64GD81BWBQC(P)
128GB	DGM28-A28D81BCBQC(P)	DGM28-A28D81BWBQC(P)
256GB	DGM28-B56D81BCBQC(P)	DGM28-B56D81BWBQC(P)
512GB	DGM28-C12D81BCBQC(P)	DGM28-C12D81BWBQC(P)
1TB	DGM28-01TD81BCBQC	DGM28-01TD81BWBQC

(P) : PLP (iCell) (Optional)

For more information, please contact our support.
