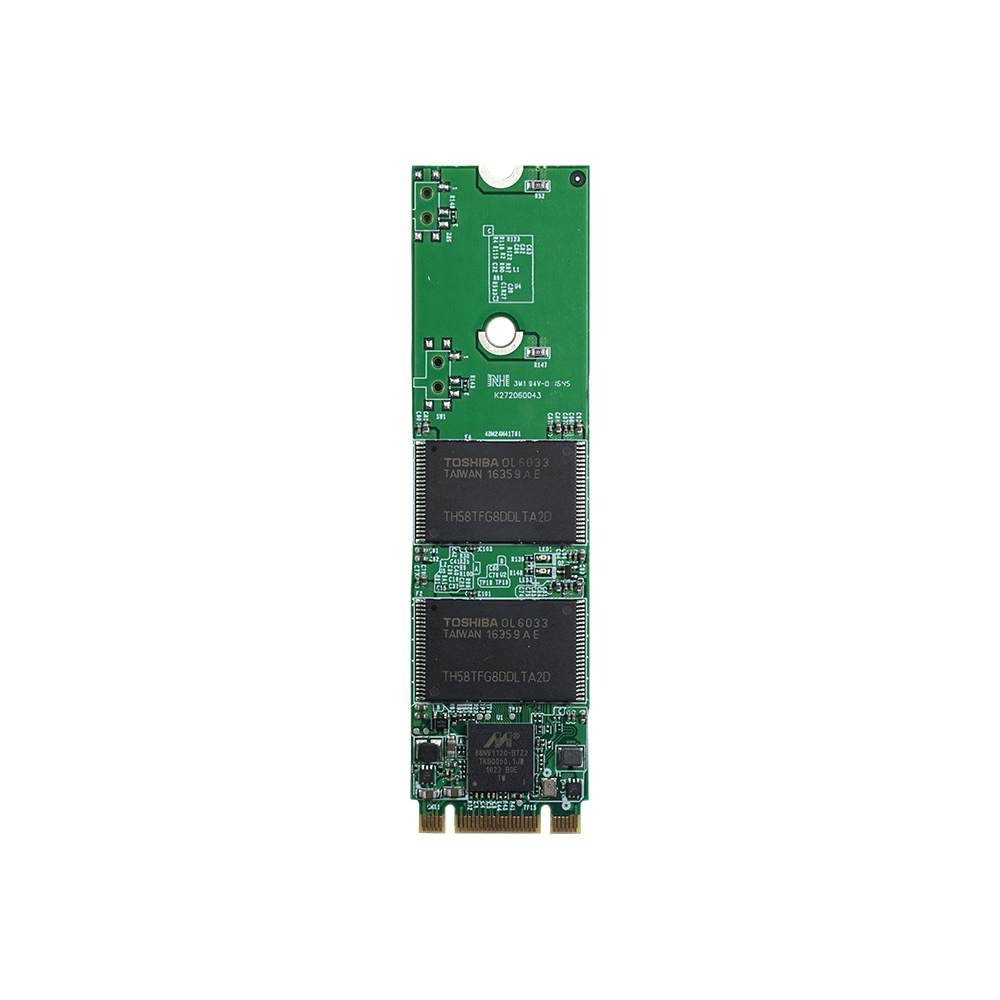

M.2 (S80) 3ME4

M.2

8GB ~ 256GB

Features

SATA III solution for industrial field
Exclusive L³ architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM / NCQ / S.M.A.R.T.
Designed with hardware LDPC ECC engine
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk M.2 (S80) 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T.. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	M.2 (S80) 3ME4
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	530 / 170
P/E Cycle	3,000
TBW (Max.)	416
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.3W
Max. Channels	2
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEM28-08GM41BC1SC	DEM28-08GM41BW1SC
16GB	DEM28-16GM41BC1&C	DEM28-16GM41BW1&C
32GB	DEM28-32GM41BC1DC	DEM28-32GM41BW1DC
64GB	DEM28-64GM41BC1DC	DEM28-64GM41BW1DC
128GB	DEM28-A28M41BC1DC	DEM28-A28M41BW1DC
256GB	DEM28-B56M41BC1DC	DEM28-B56M41BW1DC

&. S : 1 channel / D : 2 channels
