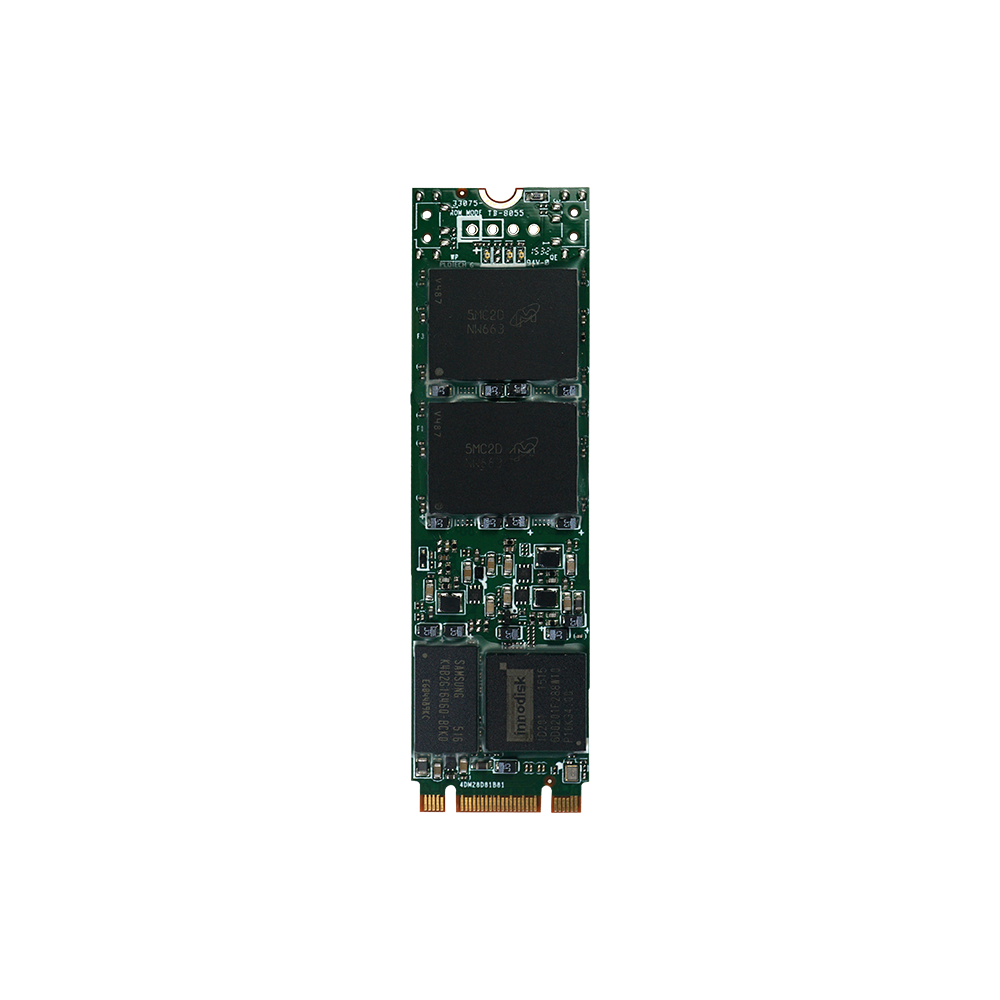

M.2 (S80) 3IE2-P

M.2

32GB ~ 512GB

Features

SATA III solution for industrial field
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3IE2-P is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S80) 3IE2-P absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S80) 3IE2-P effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S80) 3IE2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	32GB ~ 512GB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	20,000
TBW (Max.)	5,000
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.4W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DHM28-32GD81BCBQC	DHM28-32GD81BWBQC
64GB	DHM28-64GD81BCBQC	DHM28-64GD81BWBQC
128GB	DHM28-128D81BCBQC	DHM28-128D81BWBQC
256GB	DHM28-B56D81BCBQC	DHM28-B56D81BWBQC
512GB	DHM28-C12D81BCBQC	DHM28-C12D81BWBQC

For more information, please contact our support.
