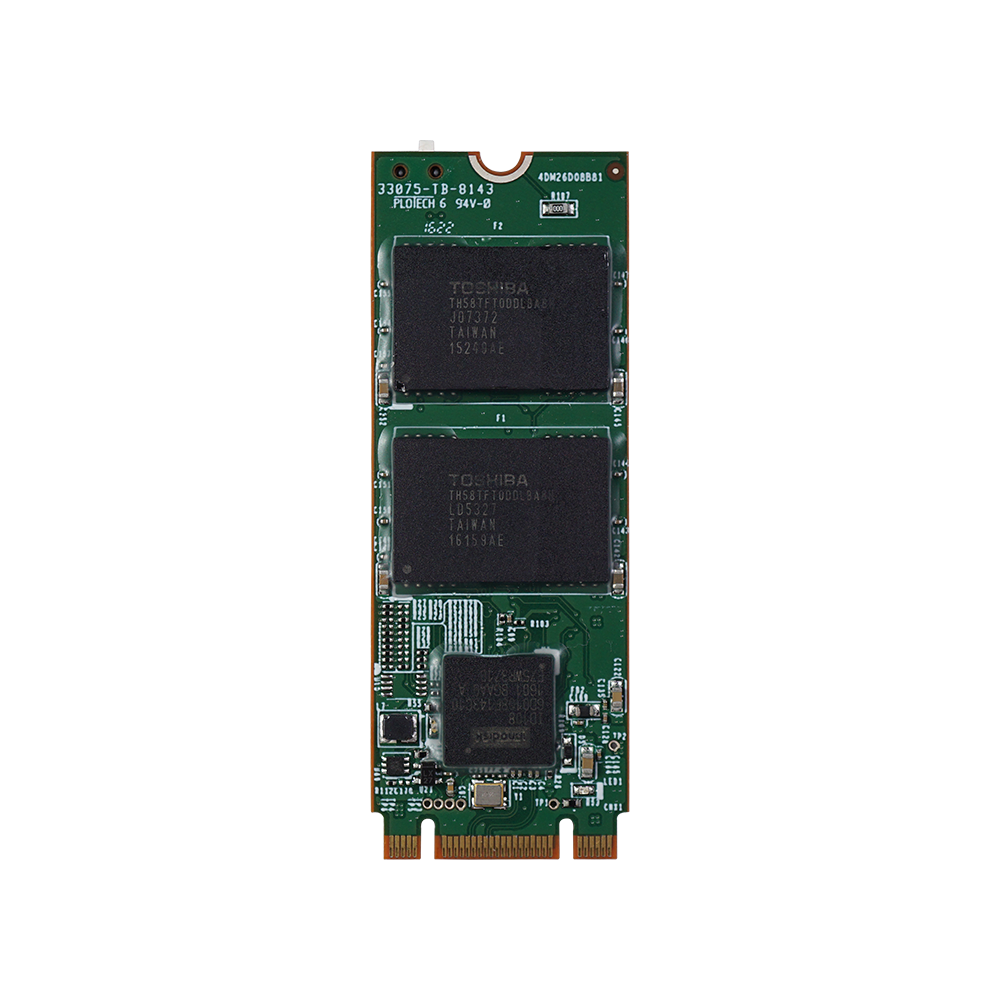

M.2 (S60) 3ME3

M.2

32GB ~ 512GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
Supports wide temperature from -40°C to 85°C

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S60) 3ME3 is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S60) 3ME3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S60) 3ME3 effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S60) 3ME3
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2260 B+M Key
Capacity	32GB ~ 512GB
Sequential R / W (MB/sec, max.)	380 / 200
P/E Cycle	3,000
TBW (Max.)	150
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.3W
Max. Channels	4
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 60.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DEM26-32GD08BCADC	DEM26-32GD08BWADC
64GB	DEM26-64GD08BCAQC	DEM26-64GD08BWAQC
128GB	DEM26-A28D08BCAQC	DEM26-A28D08BWAQC
256GB	DEM26-B56D08BCAQC	DEM26-B56D08BWAQC
512GB	DEM26-C12D08BCAQC	DEM26-C12D08BWAQC

For more information, please contact our support.
