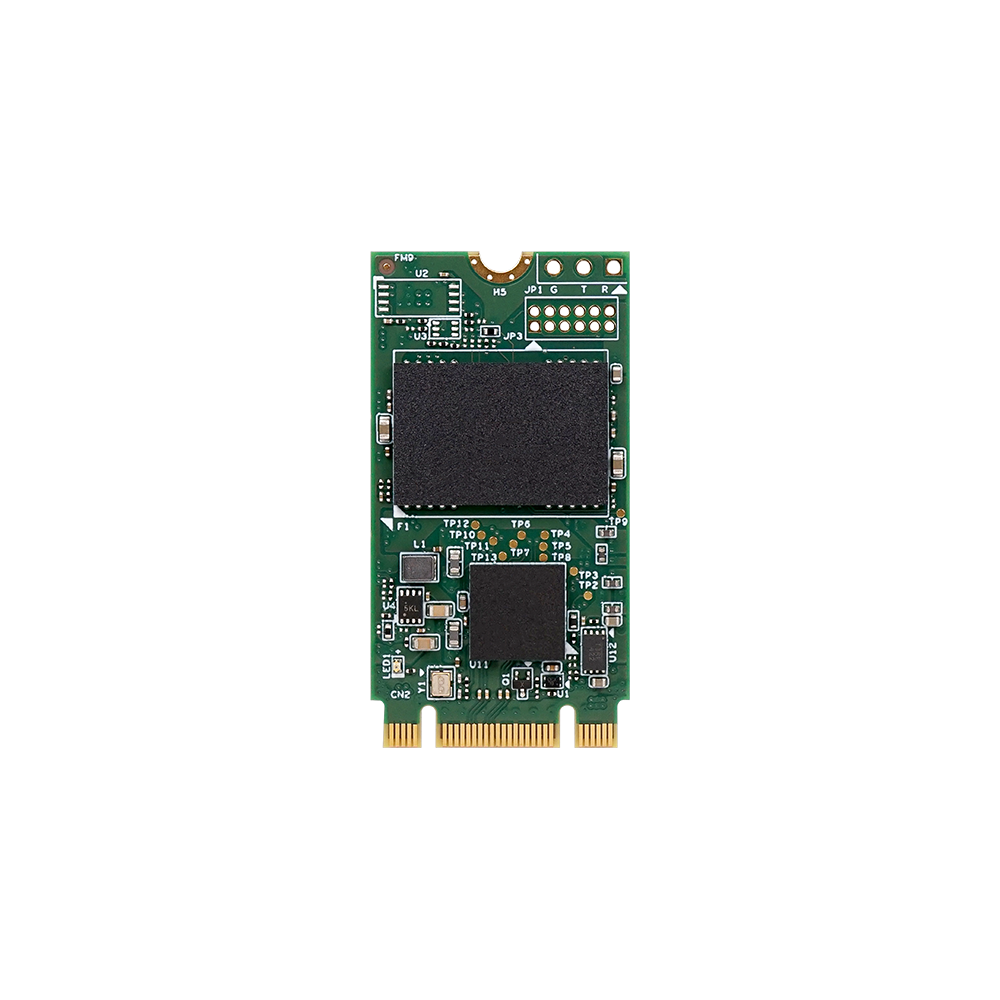

M.2 (S42) 3TEB

M.2

64GB ~ 1TB

Features

SATA III solution for industrial field
High IOPS
Low power consumption
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down.
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S42) 3TEB is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TEB series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of M.2 (S42) 3TEB for industrial applications.

SPECIFICATIONS

Model Name	M.2 (S42) 3TEB
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	64GB ~ 1TB
Sequential R / W (MB/sec, max.)	550 / 480
P/E Cycle	3,000
TBW (Max.)	1,800
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	1.2W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
64GB	DEM24-64GIC1KCASF	DEM24-64GIC1KWASF
128GB	DEM24-A28IC1KCADF	DEM24-A28IC1KWADF
256GB	DEM24-B56IC1KCADF	DEM24-B56IC1KWADF
512GB	DEM24-C12IC1KCADF	DEM24-C12IC1KWADF
1TB	DEM24-01TIC1KCADF	DEM24-01TIC1KWADF

For more information, please contact our support.
